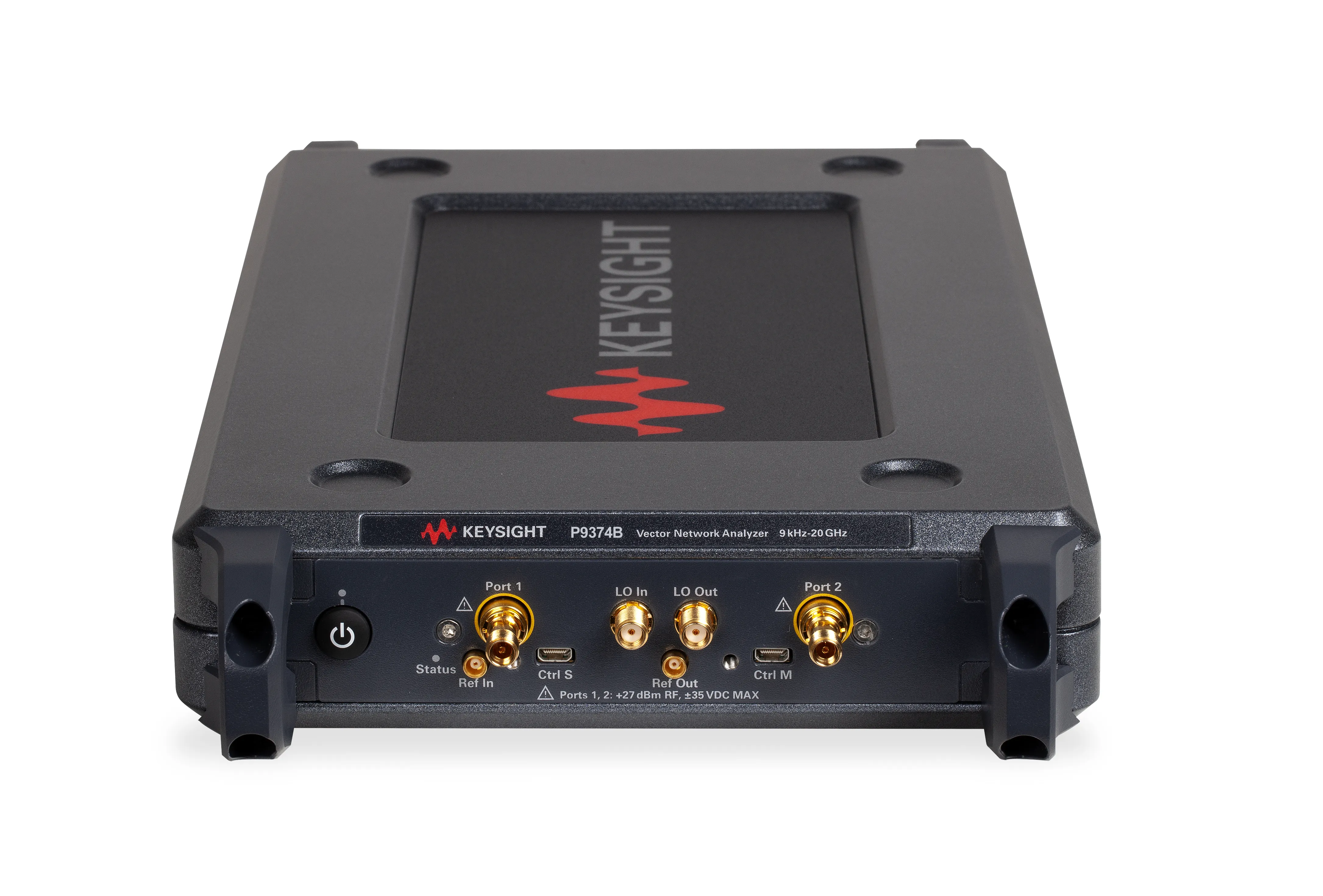

Keysight P9374B Vector Network Analyzer
Request a quote
Keysight P9374B is a compact 2-port VNA with 20 GHz coverage, 115 dB dynamic range, Thunderbolt 3 interface, and portable performance for test labs.
Product details
| Model | P9374B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9374B is a compact, portable 2-port vector network analyzer offering excellent RF performance in a space-saving design. Part of the Streamline Series, it combines trusted Keysight VNA measurement science with a Thunderbolt 3 interface for connection to external computers with powerful data processing capabilities.
Key Features
- Frequency range: 9 kHz to 20 GHz, 2-port configuration
- High dynamic range: >115 dB at 10 Hz IFBW
- Low trace noise: <0.0015 dBrms at 10 kHz IFBW
- Fast measurement cycle time: <15 msec for 2-port measurements (201 points)
- High temperature stability: <0.005 dB/°C
- Compact and lightweight: 1.88 kg
- Thunderbolt 3 interface for connection to external computer
- 3.5 mm (female) test port connectors
- Compatible with all Keysight mechanical calibration kits and ECal modules
Applications
- Passive component characterization
- Time domain analysis with TDR
- Network analysis with automatic fixture removal
- General-purpose RF and microwave testing
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
