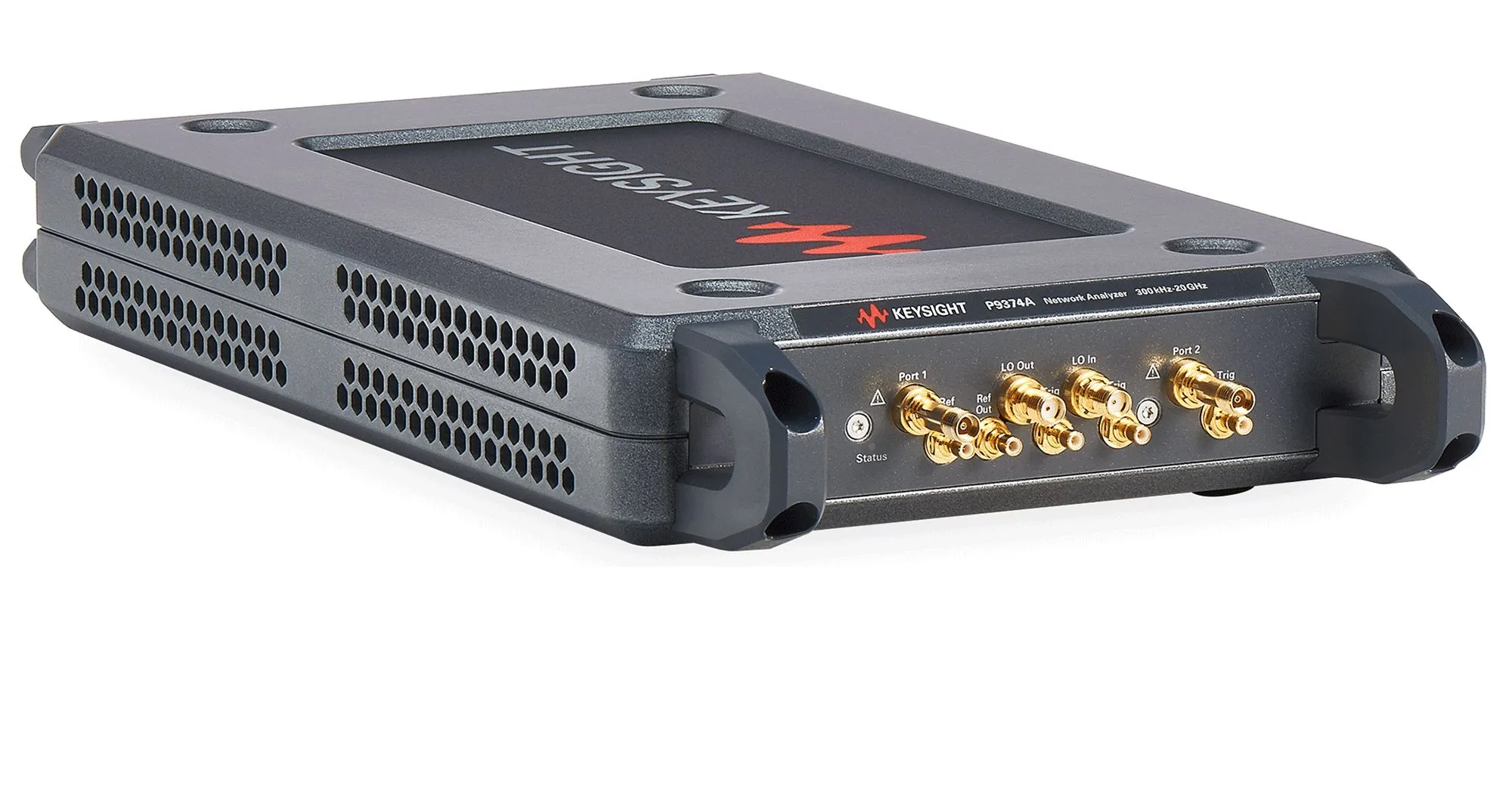

Keysight P9374A Vector Network Analyzer
Request a quote
Keysight P9374A is a compact USB vector network analyzer with 300 kHz to 20 GHz frequency coverage, delivering RF performance comparable to benchtop systems in a portable design.
Product details
| Model | P9374A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9374A is a compact 2-port vector network analyzer offering affordable, full-featured network analysis in a portable chassis. The first in Keysight's compact VNA line, it dramatically reduces test setup size while maintaining excellent RF performance. Controlled from an external computer via USB connection, it provides powerful measurement processing and is ideal for applications requiring both portability and precision.
Key Features
- Frequency range: 300 kHz to 20 GHz
- 2-port configuration with compact form factor
- USB connectivity for flexible computer integration
- Dynamic range: 115 dB
- Trace noise: 0.003 dB rms at 1 kHz IFBW
- Output power: 7 dBm
- Temperature stability: 0.005 dB/°C up to 4.5 GHz
- Uses same measurement science as trusted Keysight VNAs
- Support for all Keysight Electronic Calibration (ECal) modules
- Ability to extend ports by combining multiple units
Applications
- Portable RF and microwave component testing
- General-purpose passive component characterization
- Field measurements and on-site testing
- Manufacturing and quality control
- Sharing test equipment between multiple locations
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | Modular |
| Form Factor | Benchtop |
| Number of Ports | 2 |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | 300 kHz |
| Type | PC Based |
| Series | Streamline Series |
