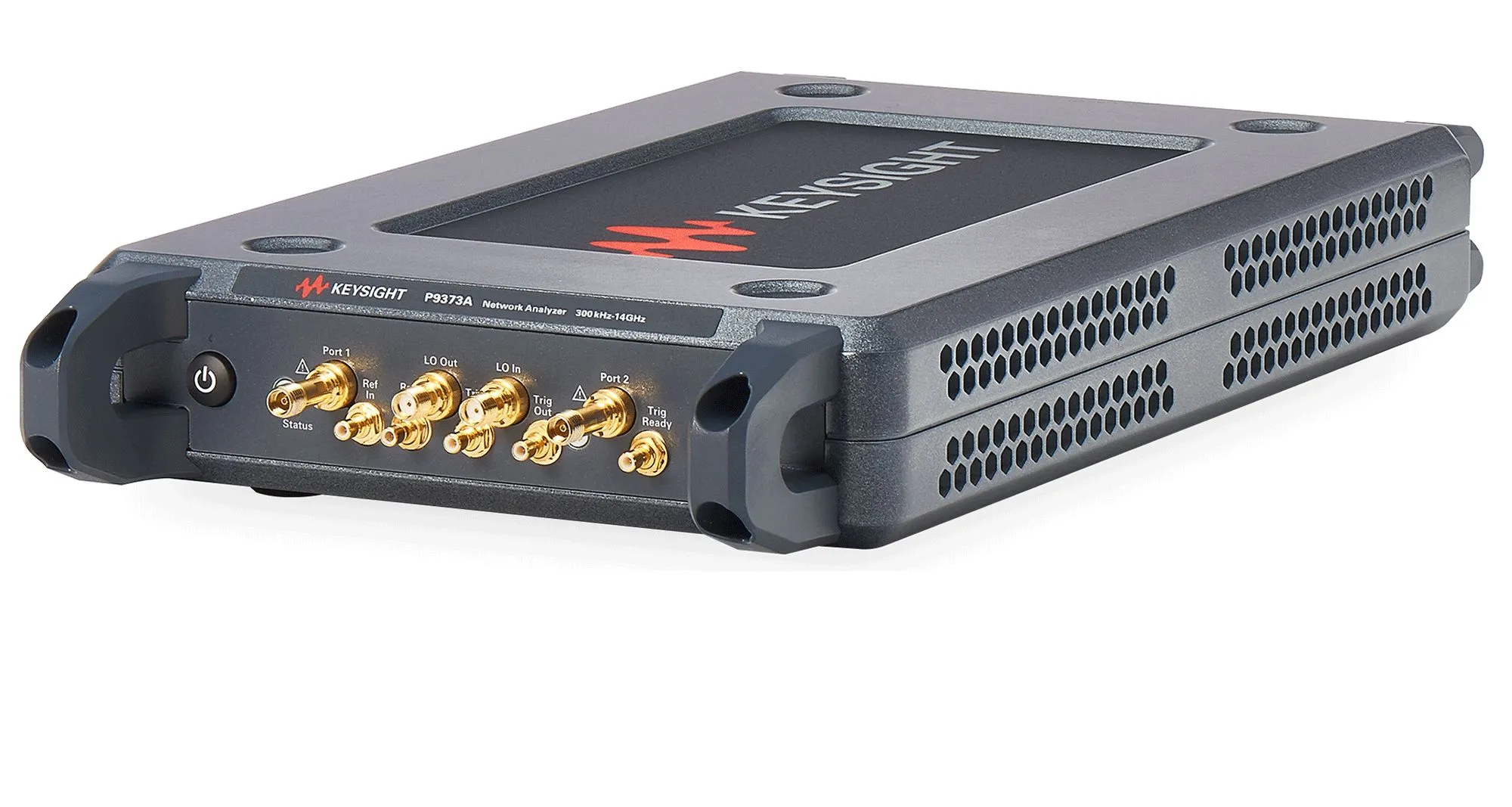

Keysight P9373A Vector Network Analyzer
Request a quote
Keysight P9373A is a compact USB vector network analyzer covering 300 kHz to 14 GHz with 115 dB dynamic range and low 0.003 dB rms trace noise.
Product details
| Model | P9373A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9373A is a compact USB vector network analyzer from the Streamline Series, featuring 2-port capability and operating up to 14 GHz. This affordable VNA dramatically reduces test bench size while maintaining the measurement science of Keysight's trusted PNA and ENA instruments. Controlled by an external computer with powerful processing capabilities.
Key Features
- Frequency range: 300 kHz to 14 GHz
- 2-port configuration with 3.5 mm (female) connectors
- USB connectivity for external computer control
- Dynamic range: 115 dB at 6.5 GHz (10 Hz IFBW)
- Trace noise: 0.003 dB rms at 1 kHz IFBW
- Output power: 7 dBm
- Temperature stability: 0.005 dB/°C up to 4.5 GHz
- Supports all Keysight electronic calibration (ECal) modules
- Extendable to 4-port configuration by combining two units
- Same GUI and SCPI commands as other Keysight VNAs
Applications
- General-purpose passive component characterization
- Portable field testing and multi-location deployment
- Component evaluation and device characterization
- Manufacturing and R&D test environments
- Educational and training applications
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Number of Ports | 2 |
| Maximum Frequency | 14 GHz |
| Minimum Frequency | 300 kHz |
| Type | PC Based |
