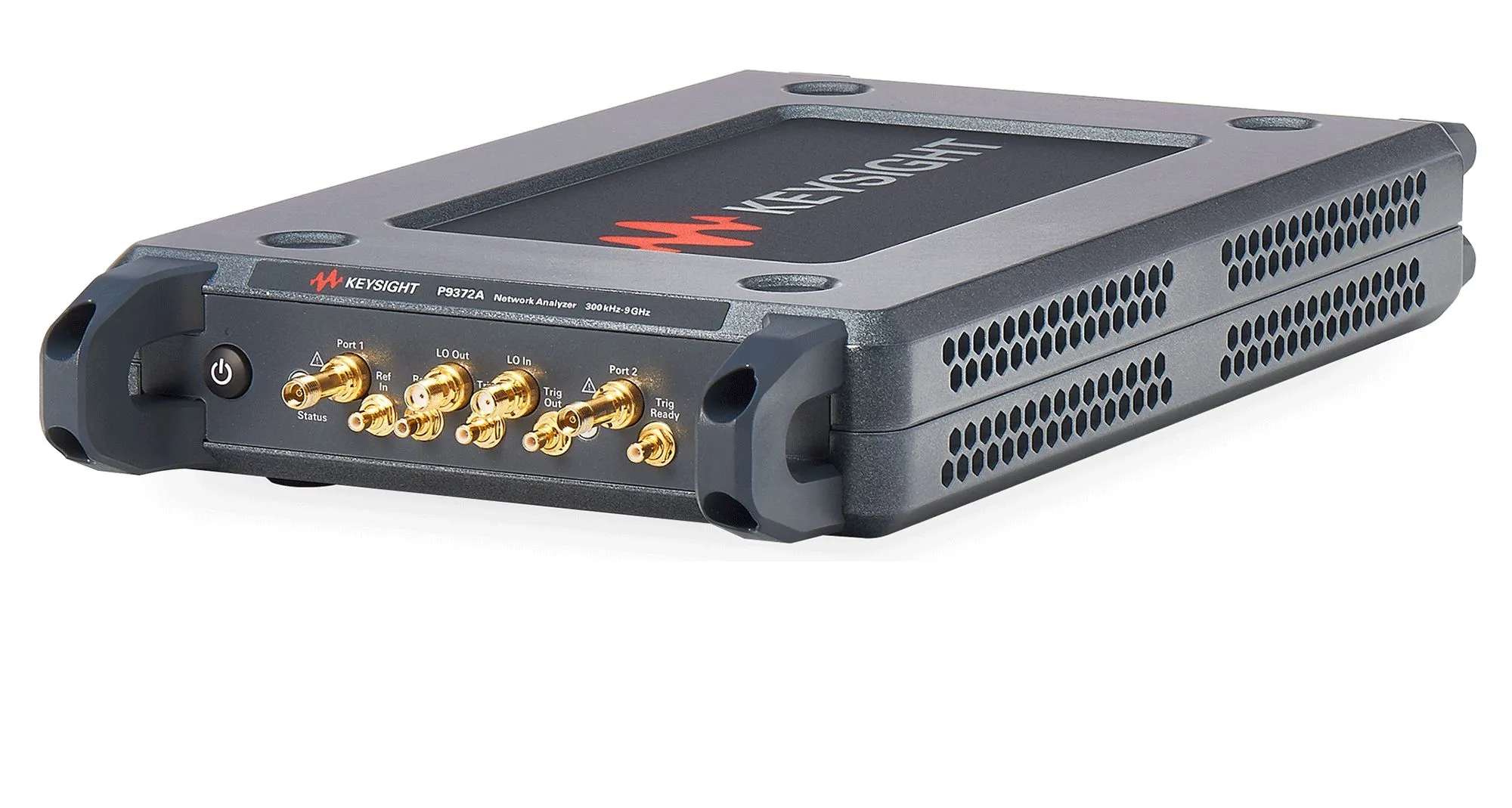

Keysight P9372A Vector Network Analyzer
Request a quote
Keysight P9372A — compact USB-based 2-port vector network analyzer, 300 kHz to 9 GHz, 115 dB dynamic range with low trace noise.
Product details
| Model | P9372A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9372A is a compact, faceless vector network analyzer (VNA) from the Streamline Series, designed for affordable, full 2-port network analysis. Controlled from an external computer via USB, the P9372A operates from 300 kHz to 9 GHz and uses the same measurement science as Keysight's trusted benchtop VNAs (PNA, ENA, PXI VNA). Its portable form factor makes it easy to share between test locations while maintaining high RF performance.
Key Features
- Frequency range: 300 kHz to 9 GHz
- Full 2-port vector network analyzer
- USB connectivity to external computer
- Wide dynamic range: greater than 115 dB at 6.5 GHz (10 Hz IFBW)
- Low trace noise: less than 0.003 dB rms (1 kHz IFBW)
- High temperature stability: 0.005 dB/°C up to 4.5 GHz
- Compact chassis design for portability
- Support for Keysight Electronic Calibration (ECal) modules
- Ability to extend test ports by combining multiple units
Applications
- Passive component characterization (filters, couplers, antennas)
- Time domain reflectometry (TDR) analysis
- Automatic fixture removal and characterization
- RF and microwave component testing
- Portable field measurements
- Research and development applications
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Number of Ports | 2 |
| Maximum Frequency | 9 GHz |
| Minimum Frequency | 300 kHz |
| Type | PC Based |
