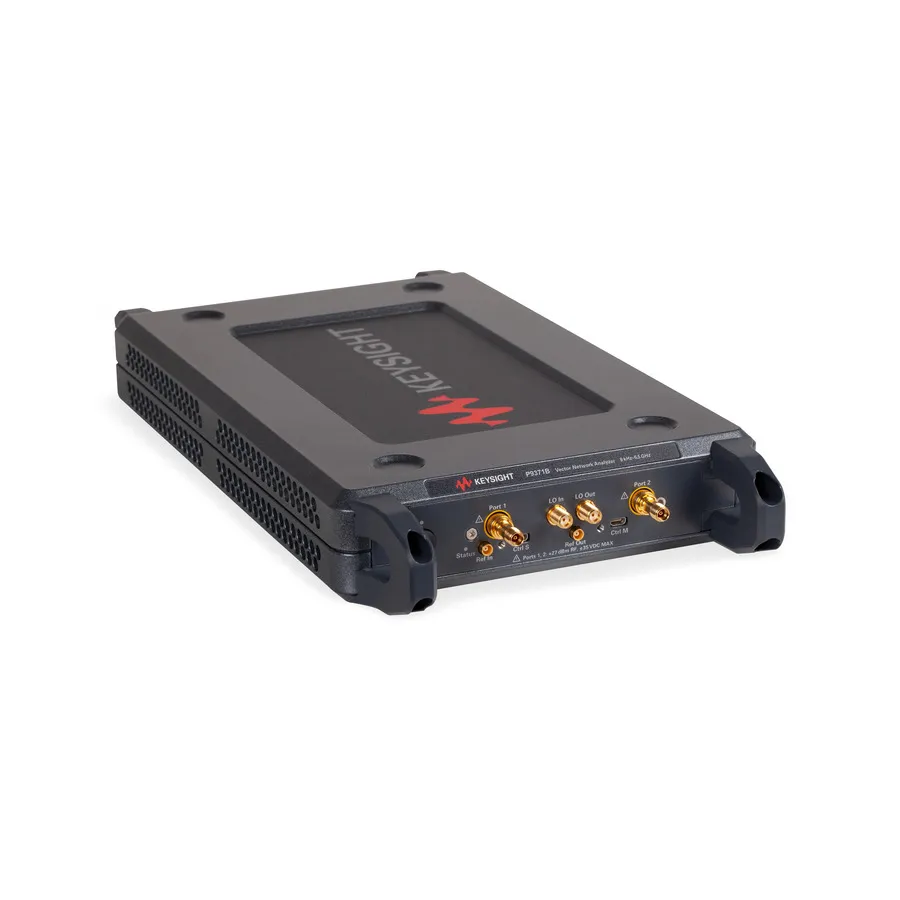

Keysight P9371B/001 Vector Network Analyzer
Request a quote
Keysight P9371B/001 — portable 2-port vector network analyzer, 9 kHz–6.5 GHz, Thunderbolt 3 with VNA activation software option.
Product details
| Model | P9371B/001 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9371B/001 is a compact 2-port vector network analyzer from the Streamline Series. It operates from 9 kHz to 6.5 GHz via a Thunderbolt 3 interface connected to an external PC. The /001 variant includes VNA activation software to ensure compatibility with newly added features and keep the instrument up to date. The P9371B/001 delivers the same measurement science and user experience as larger benchtop Keysight VNAs (PNA, ENA, PXI VNA) but in a portable form factor.
Key Features
- Frequency range: 9 kHz to 6.5 GHz
- 2 ports with 3.5 mm (female) connectors
- Thunderbolt 3 interface for high-speed PC connectivity
- Frequency resolution: 1 Hz
- USB port for additional connectivity options
- VNA activation software for feature updates and compatibility
- Common software platform with other Keysight VNAs
- Supports Keysight Electronic Calibration (ECal) modules
Applications
- Passive component characterization (filters, couplers, antennas)
- Time domain reflectometry (TDR) and network analysis
- Research and development testing
- Manufacturing quality control and verification
- Field and portable network measurements
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 6.5 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Series | Streamline Series |
