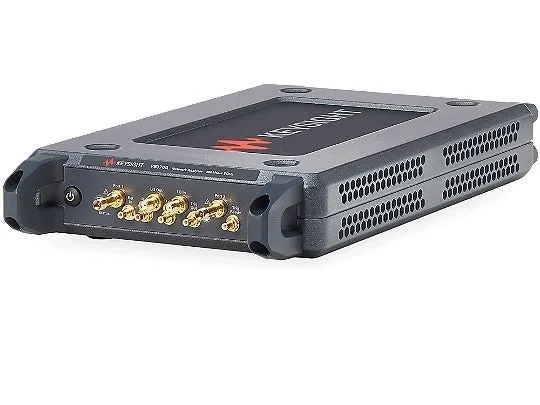

Keysight P9370A Vector Network Analyzer
Request a quote
Keysight P9370A is a compact USB vector network analyzer with 2 ports, covering 300 kHz to 4.5 GHz, offering 115 dB dynamic range and low trace noise.
Product details
| Model | P9370A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P9370A is a compact, faceless USB vector network analyzer (VNA) that dramatically reduces test setup size while maintaining full two-port measurement capabilities. Packaged in a compact chassis and controlled from an external computer, it delivers uncompromised RF performance with a frequency range of 300 kHz to 4.5 GHz.
Key Features
- Compact design for easy sharing between test locations
- Full two-port VNA capabilities with 115 dB dynamic range at 10 Hz IFBW
- Low trace noise of 0.003 dBrms at 1 kHz IFBW
- High temperature stability of 0.005 dB/degree C up to 4.5 GHz
- Support for all Keysight Electronic Calibration (ECal) Modules
- Ability to extend test ports through system expansion
- Same measurement science as trusted Keysight VNAs
Applications
- Passive component characterization
- RF and microwave network analysis
- Field and portable testing applications
- Multi-location test environments
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | USB |
| Number of Ports | 2 |
| Maximum Frequency | 4.5 GHz |
| Minimum Frequency | 300 kHz |
| Type | PC Based |
