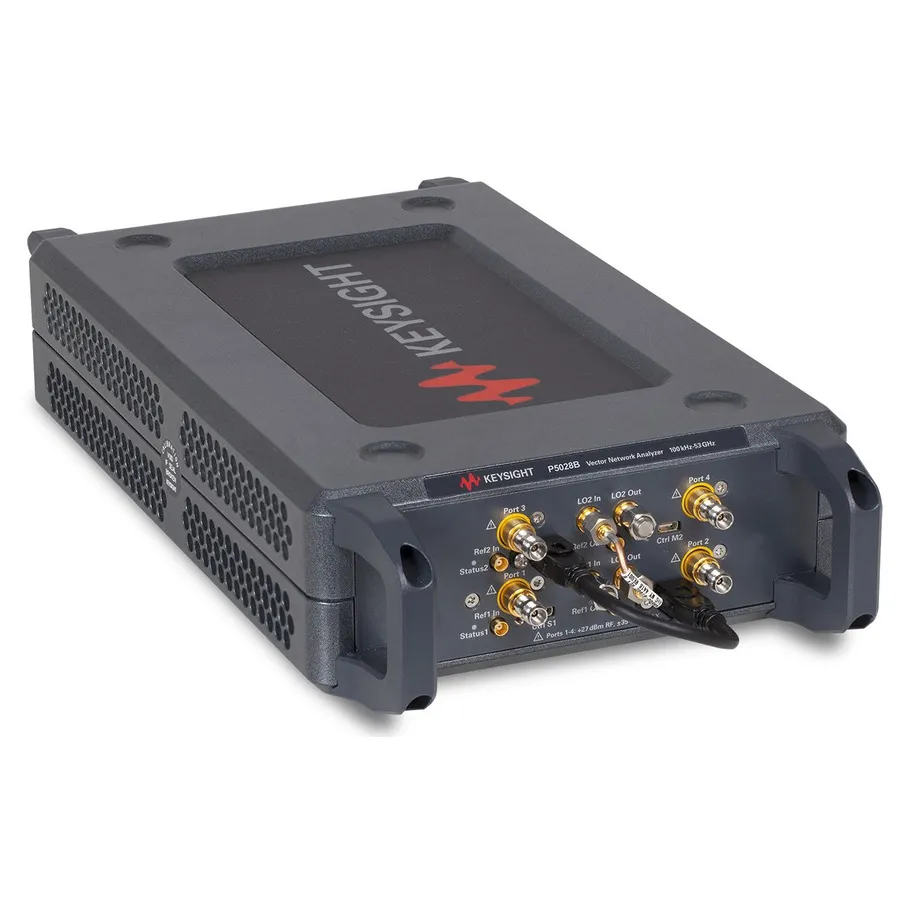

Keysight P5028B/402 Vector Network Analyzer
Request a quote
Keysight P5028B/402 — a 4-port VNA with 53 GHz frequency range, Thunderbolt 3 connectivity, and portable Streamline design for high-speed RF measurements.
Product details
| Model | P5028B/402 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5028B/402 is a portable 4-port vector network analyzer part of the Streamline Series, designed for high-speed RF measurements up to 53 GHz. Despite its compact footprint and lightweight design that enables one-hand portability, it delivers performance comparable to larger benchtop VNAs with fast Thunderbolt 3 connectivity to a host PC, making it ideal for space-constrained environments and portable applications.
Key Features
- 4-port with internal second source, 9 kHz to 53 GHz
- Fast Thunderbolt 3 interface (USB Type-C connectors)
- Lightweight, one-hand portable design
- Compatible with wide range of measurement applications
- Quick calibration with Keysight Electronic Calibration (ECal) modules
- No on-board data storage, suitable for classified environments
- Supports Direct Receiver Access (DRA) configurations
- Multiport and multisite measurement capabilities with cascading option
Applications
- Passive component characterization
- Amplifier and frequency converter testing
- Intermodulation distortion (IMD) measurements
- S-parameter measurements of high-power devices
- Time domain analysis and fixture removal
- Gain compression and spectrum analysis
- Power meter calibration
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 53 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 101 dB |
| Series | P50xxB Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
