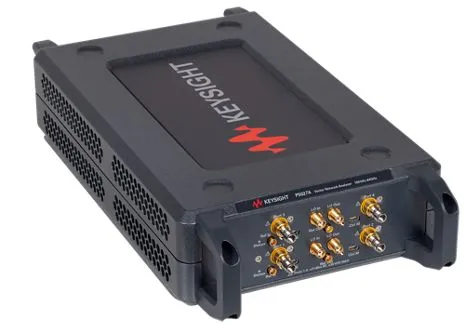

Keysight P5027A Vector Network Analyzer
Request a quote
Keysight P5027A is a compact 4-port vector network analyzer covering 100 kHz to 44 GHz, ideal for RF component characterization.
Product details
| Model | P5027A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5027A is a 4-port compact vector network analyzer that delivers high-performance RF measurements in a space-efficient, faceless design. Part of the P50xxA Streamline Series, the P5027A covers the frequency range from 100 kHz to 44 GHz and connects via USB to an external control computer. It combines the testing capabilities of larger benchtop systems with portability and ease of integration into automated test environments.
Key Features
- Frequency range: 100 kHz to 44 GHz with 2.4 mm (f) connectors
- 4-port configuration for multi-port S-parameter measurements
- Compact, faceless form factor for space-constrained applications
- High dynamic range and excellent trace noise performance
- USB connectivity for flexible test system integration
- Support for Keysight electronic calibration (ECal) modules
- Wide variety of optional software applications for advanced measurements
Applications
- Characterization of passive components (filters, couplers, interconnects)
- Active device testing (amplifiers, mixers, frequency converters)
- RF and microwave circuit validation
- Component quality assurance and production testing
- Automated test system integration
Specifications
| P5005A | 100 kHz to 26.5 GHz2 Port3.5 mm (f) |
