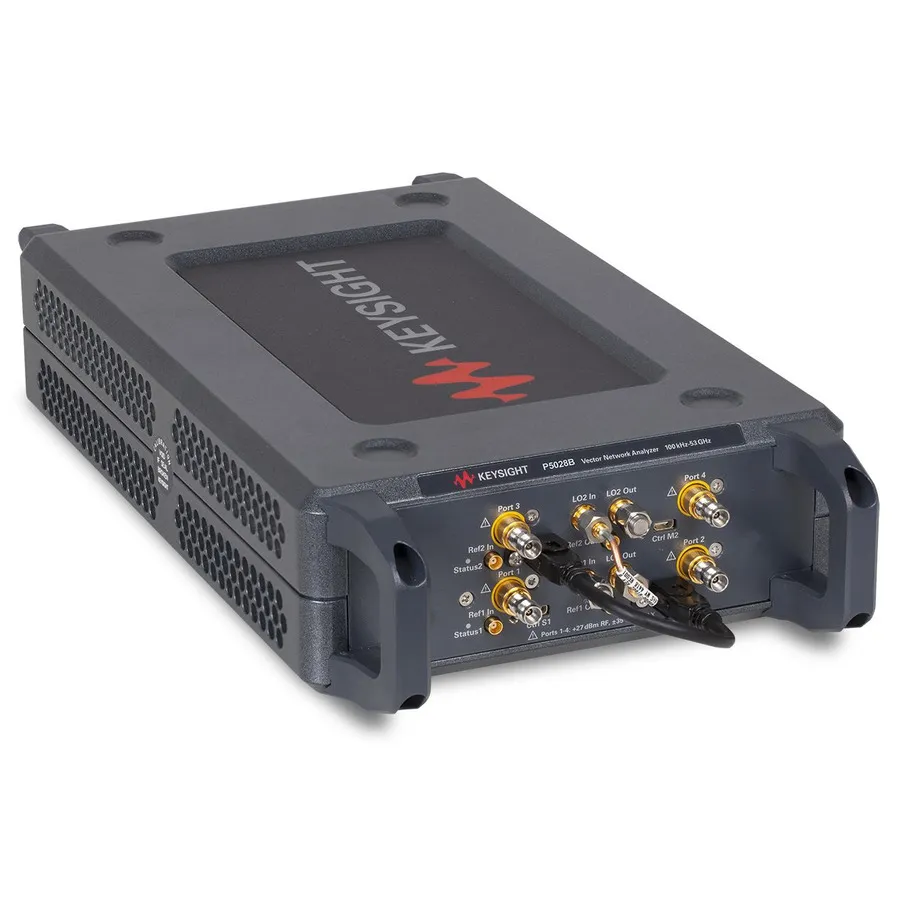

Keysight P5026B/400 Vector Network Analyzer
Request a quote
Keysight P5026B/400 is a 4-port vector network analyzer with 32 GHz capability, Thunderbolt 3 interface, compact portable design, and comprehensive measurement application support.
Product details
| Model | P5026B/400 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5026B/400 is a 4-port vector network analyzer with 32 GHz capability, part of the Streamline Series portable VNA lineup. Designed for high-speed RF measurements via Thunderbolt 3 connectivity, this lightweight instrument delivers fast, reliable, and repeatable results. Its compact form factor and hand-portable design make it ideal for space-constrained test environments, portable applications, and multi-location deployments.
Key Features
- 4-port configuration with 9 kHz to 32 GHz frequency range
- Thunderbolt 3 interface (USB Type-C) for fast PC connectivity
- Compact, lightweight design — portable with one hand
- Best-in-class dynamic range and measurement speed
- Low trace noise and excellent temperature stability
- Wide range of measurement applications for advanced RF characterization
- Electronic Calibration (ECal) module support
- Software and hardware upgrade options available
Applications
- S-parameter measurements of passive components and devices
- High-power device testing and characterization
- Amplifier and frequency converter evaluation
- Time domain analysis with TDR and fixture removal
- Multi-instrument cascaded configurations for expanded test capacity
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 32 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 137 dB |
| Series | P50xxB Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
