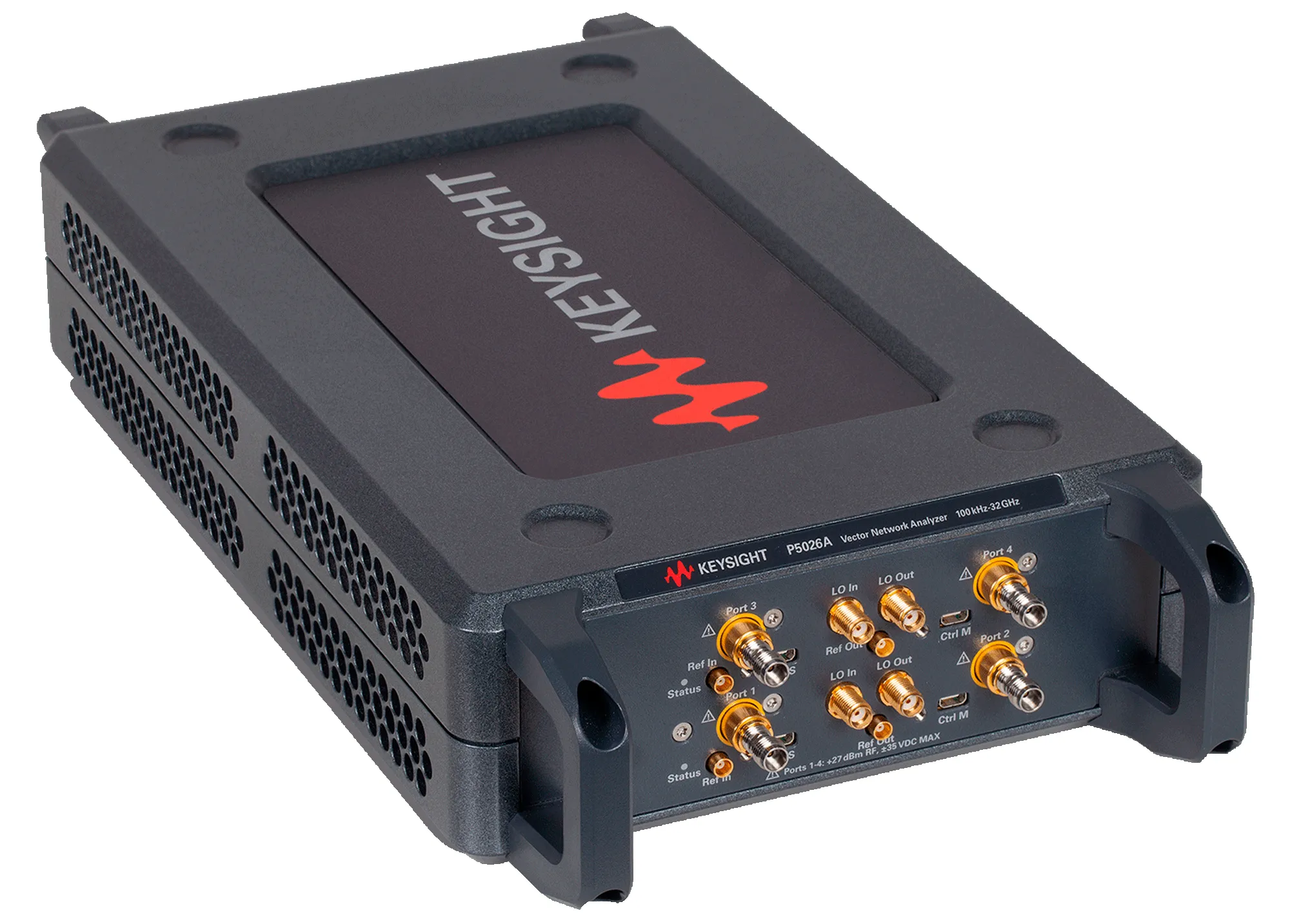

Keysight P5026A Vector Network Analyzer
Request a quote
Keysight P5026A is a portable vector network analyzer with 100 kHz to 32 GHz frequency range, best-in-class dynamic range, measurement speed, and temperature stability.
Product details
| Model | P5026A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5026A is a portable vector network analyzer offering flexible 2- or 4-port configurations with frequency coverage from 100 kHz to 32 GHz. Part of the Streamline Series, this compact instrument provides high-end RF measurement performance in a portable form factor. With intuitive software controls matching Keysight's benchtop PNA systems, it delivers best-in-class performance for a wide range of RF applications.
Key Features
- Flexible 2- or 4-port configurations
- Frequency coverage from 100 kHz to 32 GHz
- Best-in-class dynamic range and measurement speed
- Low trace noise and excellent temperature stability
- Intuitive GUI matching Keysight's high-performance PNA systems
- Electronic Calibration (ECal) module support
- Software upgrade capability for hardware enhancements
- Compact portable chassis with external computer control
Applications
- Testing passive components with benchtop-equivalent performance
- Amplifier and mixer characterization
- Frequency converter measurements
- Portable RF testing in field and remote environments
- Multi-port cascaded measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 2.4mm-Female (Plug) |
