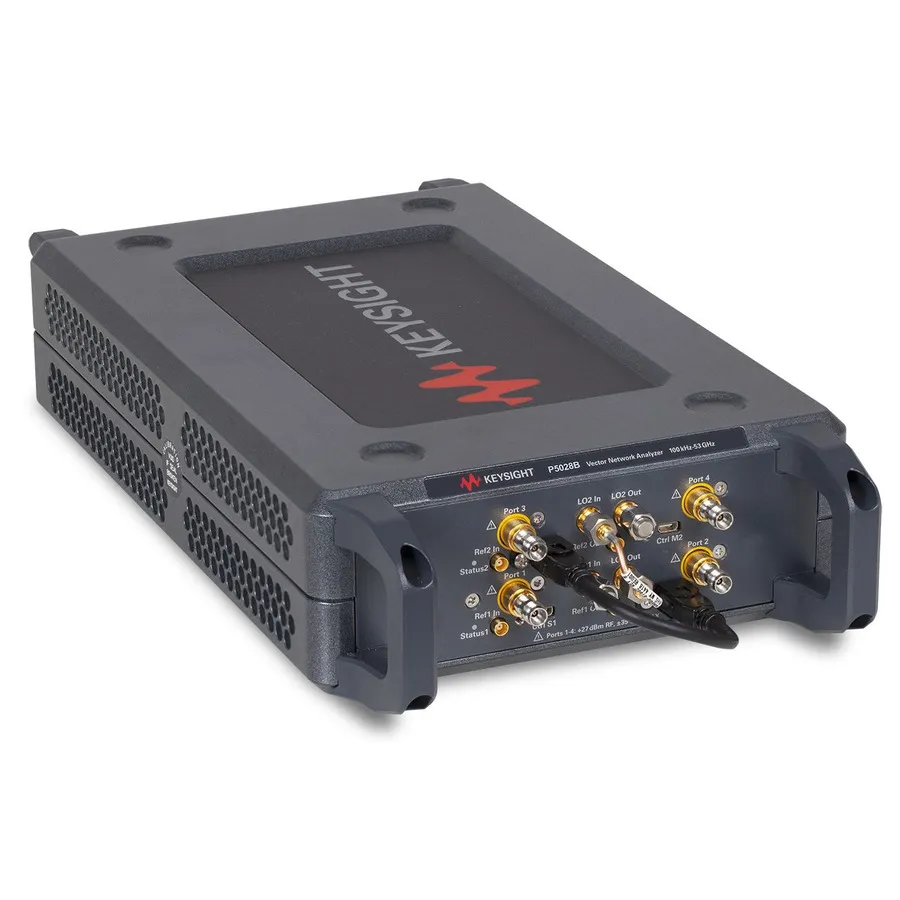

Keysight P5025B/402 Vector Network Analyzer
Request a quote
Keysight P5025B/402 is a portable 4-port vector network analyzer with 26.5 GHz capability, Thunderbolt 3 connectivity, and built-in second source for IMD measurements.
Product details
| Model | P5025B/402 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5025B/402 is a portable 4-port vector network analyzer designed for high-performance RF measurements from 9 kHz to 26.5 GHz. Part of the Streamline Series, this compact instrument delivers benchtop-quality performance in a lightweight, hand-portable package. Connected via Thunderbolt 3, it provides fast, reliable measurements for testing passive components, amplifiers, frequency converters, and other RF devices.
Key Features
- 4-port configuration with built-in second source for intermodulation distortion measurements
- Thunderbolt 3 interface (USB Type-C) for direct, high-speed PC control
- Lightweight, hand-portable design for flexible deployment
- Wide range of software measurement applications for deeper RF insight
- Electronic Calibration (ECal) module support for rapid calibration
- Software-upgradeable hardware and activation options
- No onboard data storage, designed for secure/classified environments
Applications
- Intermodulation distortion (IMD) testing with dual-source configuration
- S-parameter measurements and passive component characterization
- Time domain analysis and fixture removal
- Portable RF testing in field and lab environments
- Multi-instrument cascaded measurements for expanded port capacity
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 137 dB |
| Series | P50xxB Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
