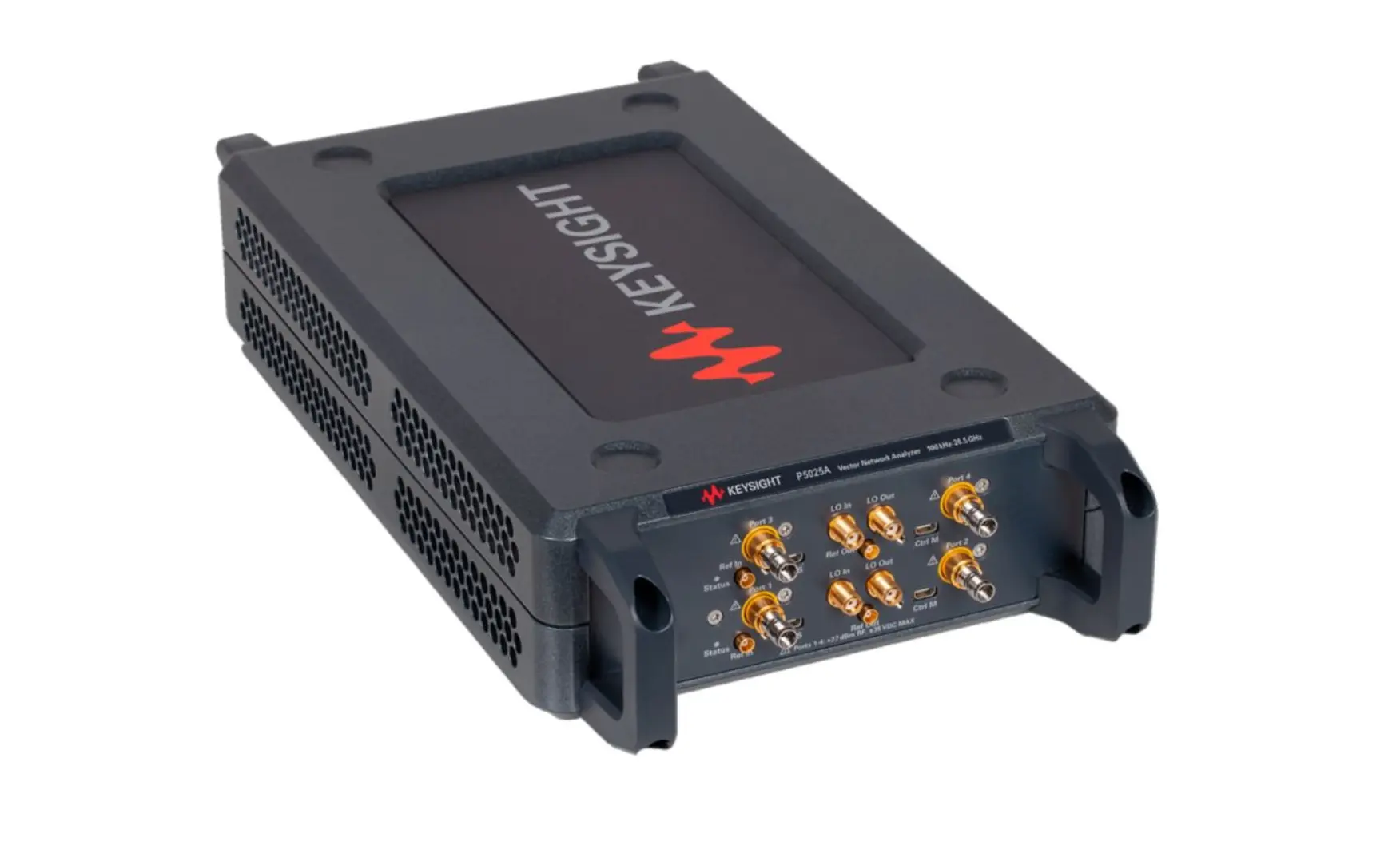

Keysight P5025A Vector Network Analyzer
Request a quote
Keysight P5025A is a vector network analyzer with 26.5 GHz capability, offering flexible 2- or 4-port configurations for RF component testing and characterization.
Product details
| Model | P5025A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5025A is a vector network analyzer in the Streamline Series offering measurements from 100 kHz to 26.5 GHz. The P5025A combines high-performance RF characterization with a compact form factor, ideal for testing passive components, amplifiers, mixers, and frequency converters in laboratory and field environments.
Key Features
- Frequency range: 100 kHz to 26.5 GHz
- Flexible 2-port or 4-port configurations available
- Optional second source (option 402) for advanced measurements
- High dynamic range and excellent trace noise performance
- Intuitive GUI compatible with Keysight's high-performance PNA instruments
- Electronic Calibration (ECal) module support for rapid calibration
- Compact design suitable for portable and shared laboratory setups
Applications
- Passive component characterization and testing
- Amplifier S-parameter measurements
- Mixer and frequency converter testing
- RF filter and passive device characterization
- Portable RF measurements in diverse environments
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
