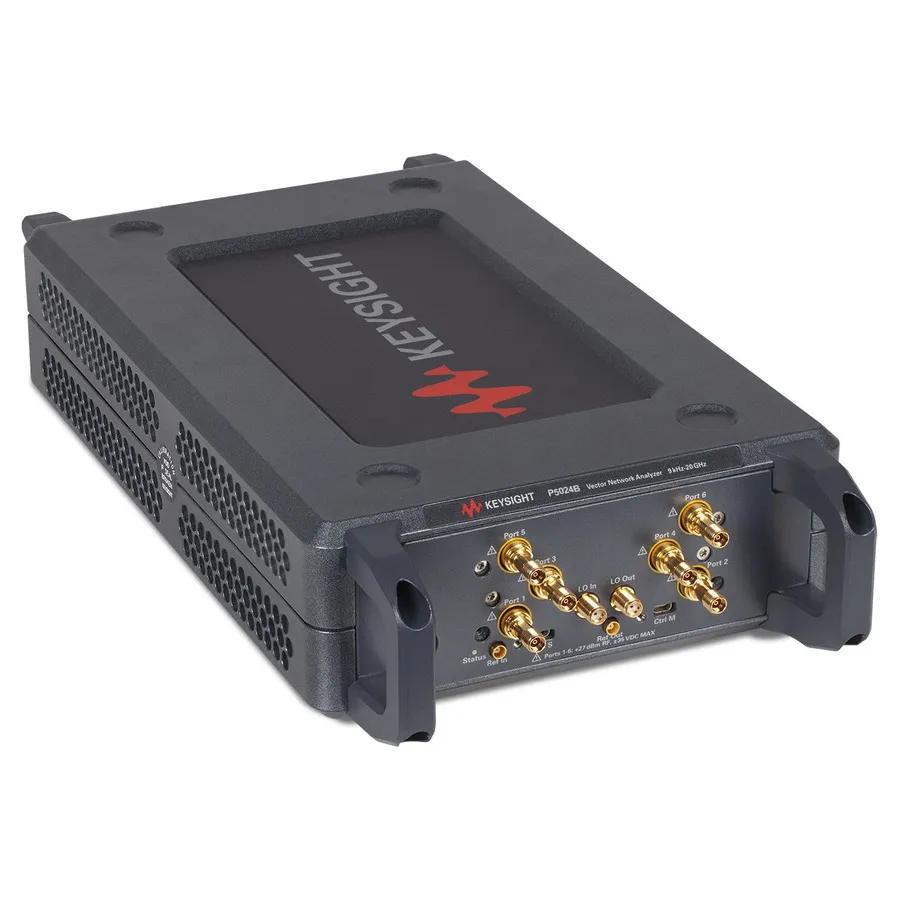

Keysight P5024B/600 Vector Network Analyzer

Overview

The Keysight P5024B/600 is a portable, six-port vector network analyzer in the Streamline Series offering measurements from 9 kHz to 20 GHz. Built into a compact form factor with lightweight design, the P5024B/600 can be carried with one hand while delivering high-performance RF characterization. The six-port configuration provides flexibility for multiport measurements and advanced test configurations, connecting to your host PC via fast Thunderbolt 3 (USB Type-C) interface.

Key Features

• Six-port configuration, 9 kHz to 20 GHz frequency range
• 140 dB dynamic range at 3 GHz, 126 dB at 20 GHz
• High-speed Thunderbolt 3 (USB Type-C) connectivity for rapid data transfer
• Portable, lightweight design suitable for laboratory and field environments
• Flexible multiport measurements with cascading capability
• Rich suite of software applications for advanced RF measurements
• Electronic Calibration (ECal) module support for fast, accurate calibration
• Optional software for TDR analysis, noise figure, and other advanced measurements

Applications

• Multiport device testing and characterization
• Passive component S-parameter measurements
• Amplifier and frequency converter testing
• Time domain analysis with TDR
• Active device measurements with optional software
• Cascaded VNA configurations for extended capability
