Keysight P5024B/402 Vector Network Analyzer

Overview

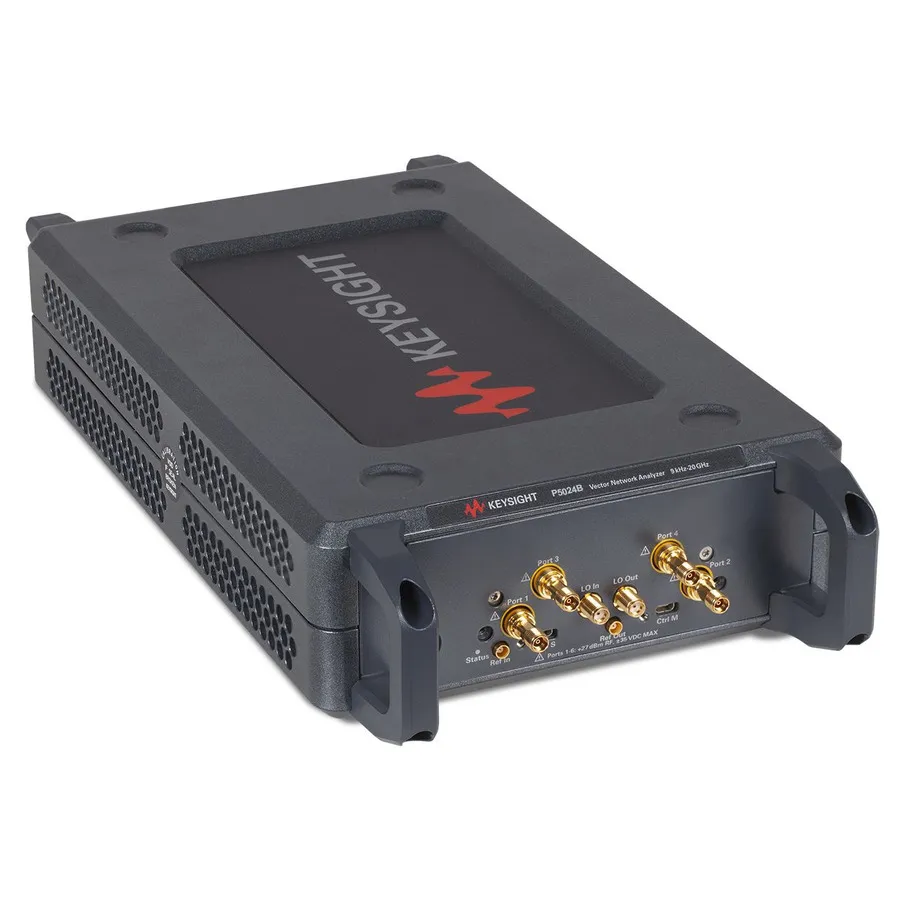

The Keysight P5024B/402 is a portable, four-port vector network analyzer in the Streamline Series offering measurements from 9 kHz to 20 GHz. Built into a compact form factor with lightweight design, the P5024B/402 can be carried with one hand while delivering high-performance RF characterization. The instrument features an internal second source (option 402) for intermodulation distortion (IMD) measurements and connects to your host PC via fast Thunderbolt 3 (USB Type-C) interface for streamlined measurements.

Key Features

• Four-port configuration with built-in second source, 9 kHz to 20 GHz frequency range
• 140 dB dynamic range at 3 GHz, 126 dB at 20 GHz
• High-speed Thunderbolt 3 (USB Type-C) connectivity for rapid data transfer
• Portable, lightweight design suitable for laboratory and field environments
• Rich suite of software applications for advanced RF measurements
• Electronic Calibration (ECal) module support for fast, accurate calibration
• Optional software for TDR analysis, noise figure, and other advanced measurements
• No onboard data storage, ideal for classified environments

Applications

• Passive component testing and characterization
• Amplifier S-parameter and gain compression measurements
• Frequency converter and mixer characterization
• Intermodulation distortion (IMD) measurements
• Time domain analysis with TDR
• Active device measurements with optional software
