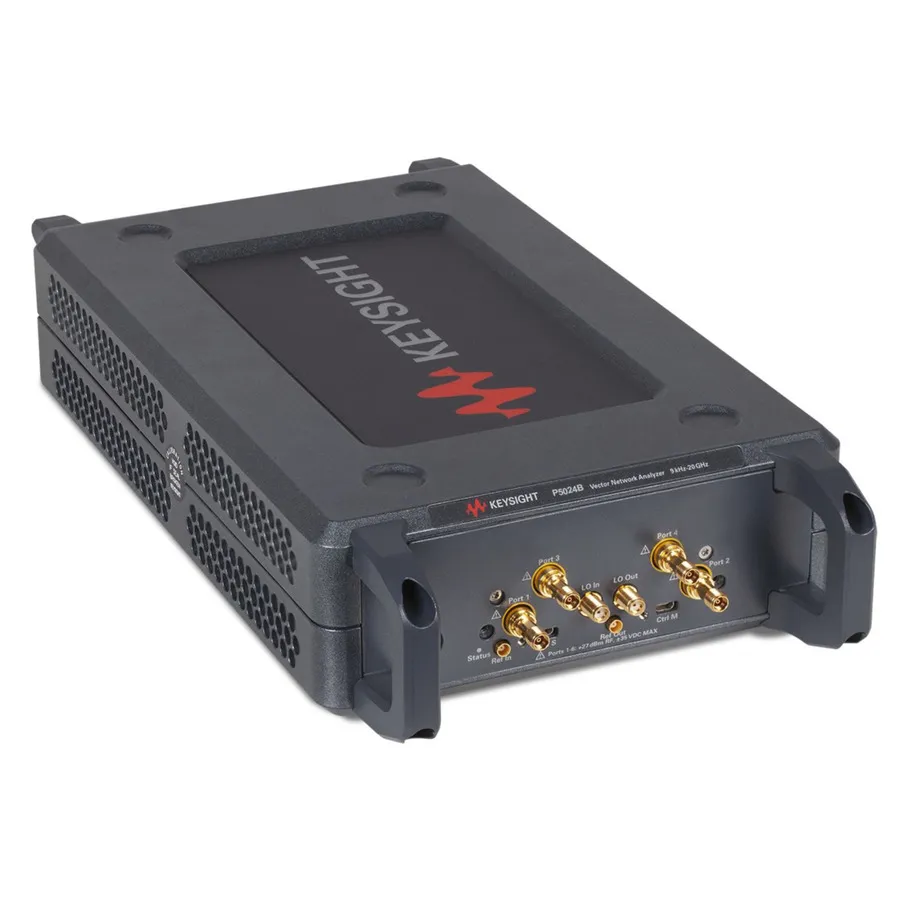

Keysight P5024B/400 Vector Network Analyzer
Request a quote
Keysight P5024B/400 is a portable 4-port vector network analyzer extending RF measurements to 20 GHz with 140 dB dynamic range.
Product details
| Model | P5024B/400 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5024B/400 is a portable four-port vector network analyzer extending RF measurements to 20 GHz. Its compact, lightweight design delivers the performance of larger instruments while enabling deployment in field and space-constrained environments. With 140 dB dynamic range and Thunderbolt 3 connectivity, it provides comprehensive RF characterization capabilities for demanding measurement applications.
Key Features
- Four-port configuration with 9 kHz to 20 GHz frequency coverage
- Extended frequency range for higher-speed RF component characterization
- 140 dB dynamic range for sensitive, low-noise measurements
- Portable design for field testing and mobile deployment
- Fast Thunderbolt 3 interface for rapid data transfer
- Keysight Electronic Calibration (ECal) modules for efficient calibration
Applications
- High-frequency RF component characterization up to 20 GHz
- Millimeter-wave device preliminary measurements
- Advanced amplifier and frequency converter testing
- Portable field validation of high-speed RF systems
Specifications
| Number of Ports | 4 |
| Maximum Frequency | 20 GHz |
| Minimum Frequency | 9 kHz |
| Type | PC Based |
| Dynamic Range | 137 dB |
| Series | P50xxB Streamline Series |
| Input Impedance | 50 Ω |
| Interface | Thunderbolt 3 |
