Keysight P5022B/600 Vector Network Analyzer

Overview

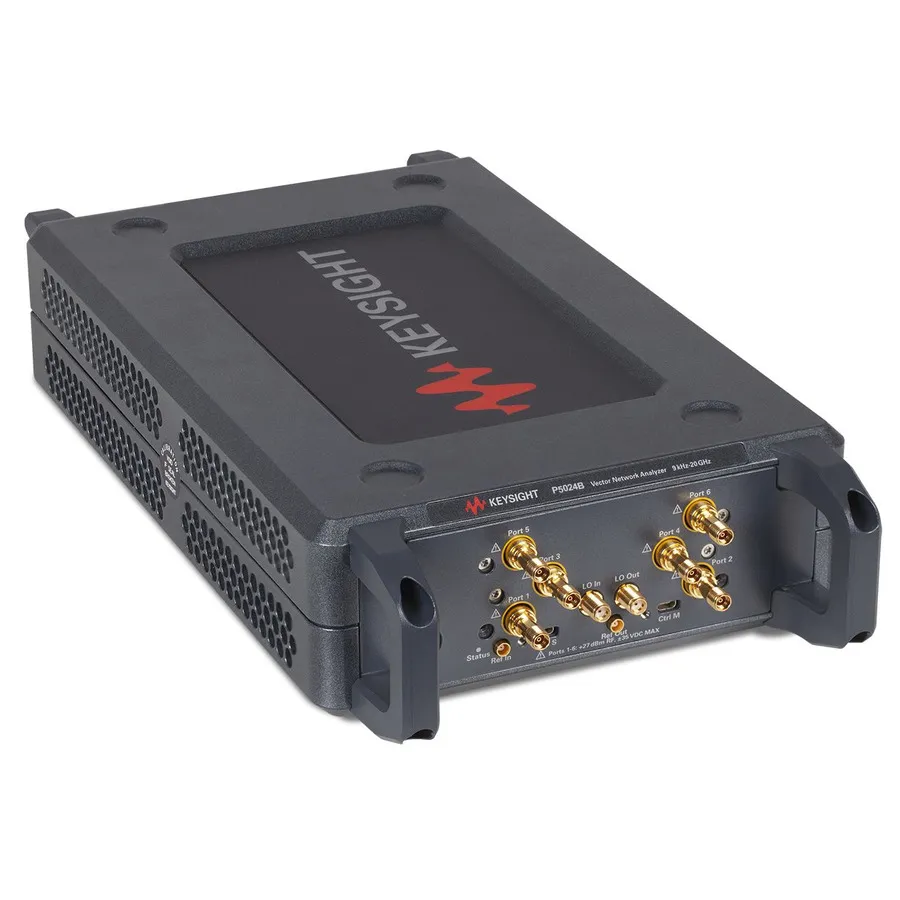

The Keysight P5022B/600 is a portable 6-port vector network analyzer delivering high-performance RF characterization in a compact form factor. Operating from 9 kHz to 9 GHz, it connects via Thunderbolt 3 to a host PC, enabling fast and repeatable measurements with a hand-portable design ideal for space-constrained and mobile applications.

The 6-port configuration provides extended measurement capabilities for complex RF testing scenarios, allowing simultaneous measurements of multiple signal paths and enabling advanced characterization techniques unavailable with standard 4-port analyzers.

Key Features

• 6-port configuration with 9 kHz to 9 GHz frequency range
• Extended measurement capabilities for complex multi-port RF testing scenarios
• Fast Thunderbolt 3 interface (USB Type-C) for connectivity to host PC
• Hand-portable design enabling flexible deployment in various measurement scenarios
• Wide dynamic range (140 dB @ 3 GHz) with low trace noise for accurate measurements
• Quick calibration with Keysight Electronic Calibration (ECal) modules
• Full N-port calibration option for greater than 4 ports
• Software applications for TDR, noise figure measurement, and multiport analysis
• Cascading capability for even greater test port count for advanced configurations
• Direct Receiver Access (DRA) configurations for specialized measurement setups
• No on-board data storage for compatibility with classified environments

Applications

• Multi-port S-parameter measurements of complex RF networks
• Passive component characterization and testing
• Amplifier and frequency converter measurements
• Multi-site and multi-port RF device testing
• Advanced time domain analysis and automatic fixture removal
• Gain compression and active parameter measurements
• Spectrum analysis and noise figure measurement
