Keysight P5022B/400 Vector Network Analyzer

Overview

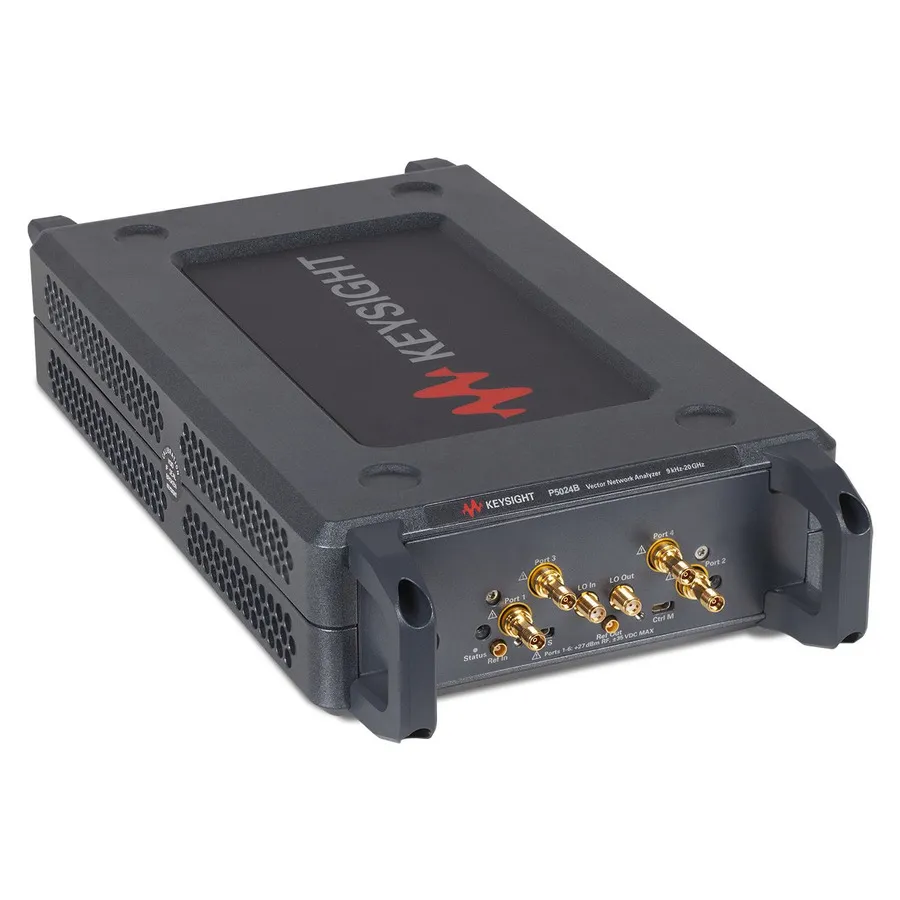

The Keysight P5022B/400 is a portable 4-port vector network analyzer delivering high-performance RF characterization in a compact form factor. Operating from 9 kHz to 9 GHz, it connects via Thunderbolt 3 to a host PC, enabling fast and repeatable measurements with a hand-portable design ideal for space-constrained and mobile applications.

Built for comprehensive network analysis, the P5022B integrates a rich suite of software applications to transform it into a complete measurement solution for passive components, amplifiers, and frequency converters.

Key Features

• 4-port configuration with 9 kHz to 9 GHz frequency range
• Fast Thunderbolt 3 interface (USB Type-C) for connectivity to host PC
• Hand-portable design enabling flexible deployment in various measurement scenarios
• Wide dynamic range (140 dB @ 3 GHz) with low trace noise for accurate measurements
• Quick calibration with Keysight Electronic Calibration (ECal) modules
• Software applications for time domain analysis (TDR), noise figure measurement, and spectrum analysis
• Cascading capability to extend test port count for complex measurements
• Direct Receiver Access (DRA) configurations for advanced measurement setups
• No on-board data storage for compatibility with classified environments

Applications

• S-parameter measurements of high-power RF devices
• Passive component characterization and testing
• Amplifier and frequency converter measurements
• Time domain analysis and automatic fixture removal
• Gain compression and active parameter measurements
• Multi-site and multi-port RF testing
