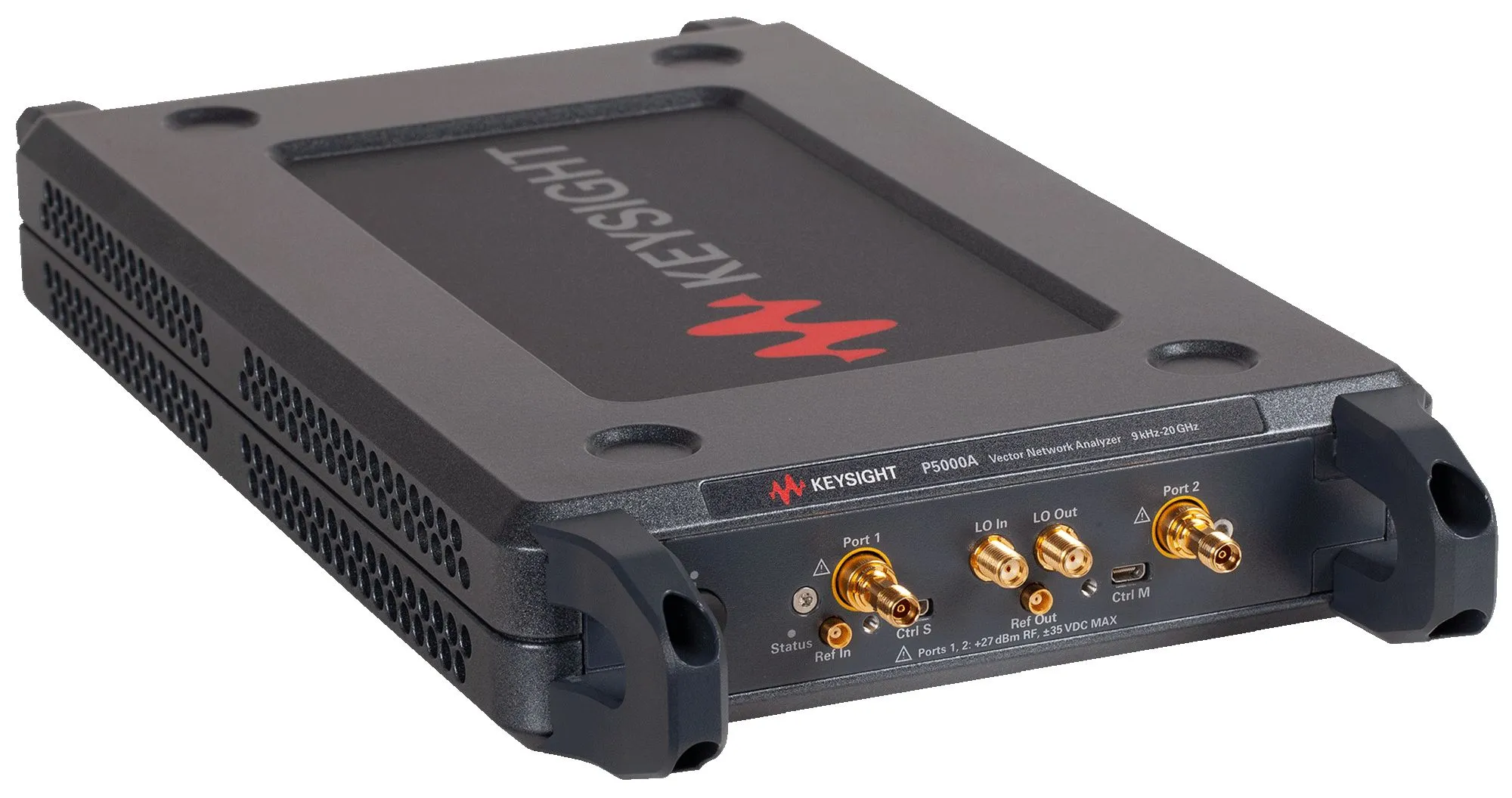

Keysight P5005A Vector Network Analyzer
Keysight P5005A is a 2-port vector network analyzer with 100 kHz to 26.5 GHz frequency range, dynamic range of 140 dB, and USB connectivity for RF component testing.
Product details
| Model | P5005A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5005A is a compact 2-port vector network analyzer offering best-in-class performance for RF testing and component characterization. Part of the Streamline Series, this VNA delivers excellent dynamic range, fast measurement speeds, and low trace noise in a compact form factor, making it suitable for laboratory applications requiring frequency coverage up to 26.5 GHz.
Controlled via external computer with powerful data processing capabilities, the P5005A provides the same intuitive graphical user interface found on Keysight's high-performance benchtop VNAs, ensuring a familiar measurement experience and extensive software application support.
Key Features
- Frequency range: 100 kHz to 26.5 GHz
- 2-port measurement configuration with 3.5 mm female connectors
- Dynamic range: 140 dB at 3 GHz (126 dB at 20 GHz)
- Noise floor: −130 dBm at 3 GHz (−122 dBm at 20 GHz)
- Best trace noise: 0.0015 dBrms magnitude / 0.01 degrms phase
- Wide range of measurement applications and software capabilities
- Quick calibration with Keysight Electronic Calibration (ECal) modules
- Compact form factor with external computer control
Applications
- Passive component characterization (filters, couplers, splitters)
- Amplifier and mixer testing
- Frequency converter characterization
- Component quality assurance and production testing
- Research and development of RF components
Specifications
| P5005A | 100 kHz to 26.5 GHz2 Port3.5 mm (f) |
