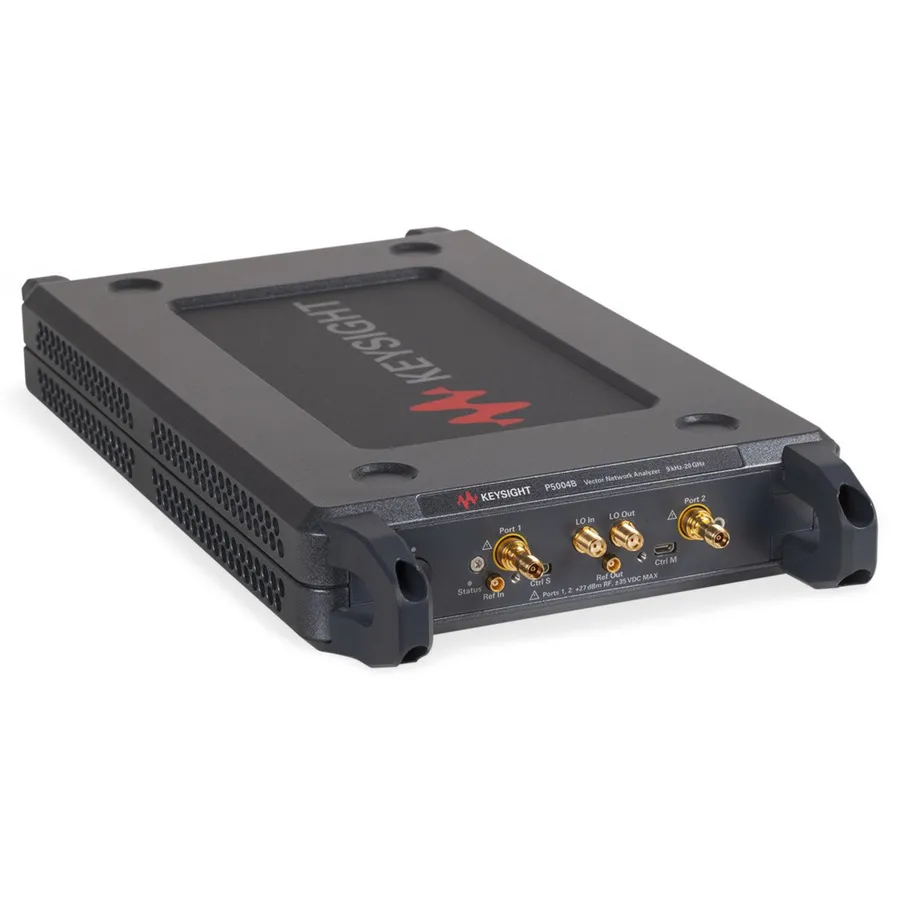

Keysight P5004B/200 Vector Network Analyzer

Overview

The Keysight P5004B/200 is a compact, portable, two-port vector network analyzer part of the Streamline Series B-models. Featuring Thunderbolt 3 connectivity to a host PC, it delivers fast, reliable, and repeatable RF measurements from 9 kHz to 20 GHz in a lightweight, single-hand-portable package. The P5004B/200 is designed for testing passive components, amplifiers, frequency converters, and other RF devices where space constraints or portability requirements demand a high-performance solution without compromise.

Key Features

• 2-port (option 200), 9 kHz to 20 GHz frequency range
• Fast Thunderbolt 3 interface (USB Type-C) for high-speed connectivity
• Compact, lightweight design for portable single-hand carrying
• Rich suite of measurement software applications for comprehensive RF characterization
• Ability to cascade multiple VNAs to extend test port capability
• Identical GUI and SCPI commands as Keysight high-performance VNAs
• Fast calibration with Keysight Electronic Calibration (ECal) modules
• Hardware upgradeable with software enhancements
• No onboard data storage, suitable for classified environments

Applications

• Passive component testing and characterization
• Amplifier and mixer measurement and validation
• Frequency converter RF characterization
• Portable field and remote site RF testing
• Shared laboratory measurements across multiple locations and teams
• RF component development and production testing
