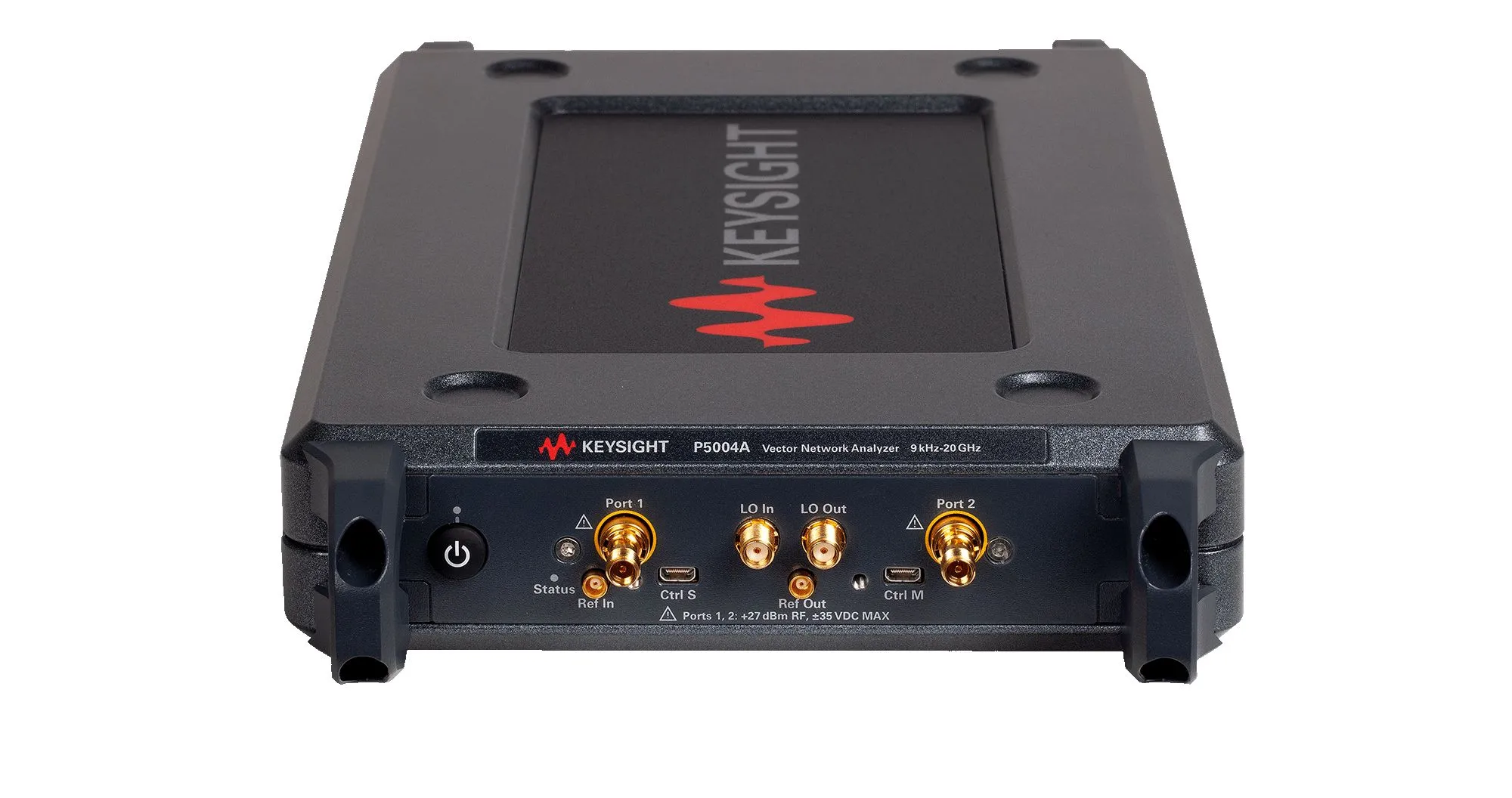

Keysight P5004B Vector Network Analyzer

Overview

The Keysight P5004B is a portable, compact vector network analyzer that brings full-performance network analysis capability to a lightweight, hand-carried package. Part of the Streamline Series B-models, it features Thunderbolt 3 connectivity to a host PC for fast, high-speed measurements across 9 kHz to 20 GHz. The P5004B is designed for testing passive components, amplifiers, mixers, and frequency converters while maintaining the measurement science and software compatibility of Keysight's trusted PNA instruments.

Key Features

• 2-port vector network analyzer, 9 kHz to 20 GHz
• Fast Thunderbolt 3 interface (USB Type-C) for high-speed PC connectivity
• Portable design that fits in one hand with lightweight construction
• Best-in-class dynamic range, measurement speed, and trace noise
• Wide measurement application portfolio for diverse RF characterization
• Identical GUI and SCPI commands as Keysight high-performance VNAs
• Compatible with all Keysight Electronic Calibration (ECal) modules
• Software upgradeable for future performance enhancements
• Cascading capability to extend port count for multi-port testing

Applications

• Passive component characterization (filters, couplers, antennas)
• Amplifier and mixer testing and validation
• Frequency converter measurements
• Portable field and site-based RF measurements
• Shared laboratory measurements across multiple teams and locations
• Production and manufacturing RF component testing
