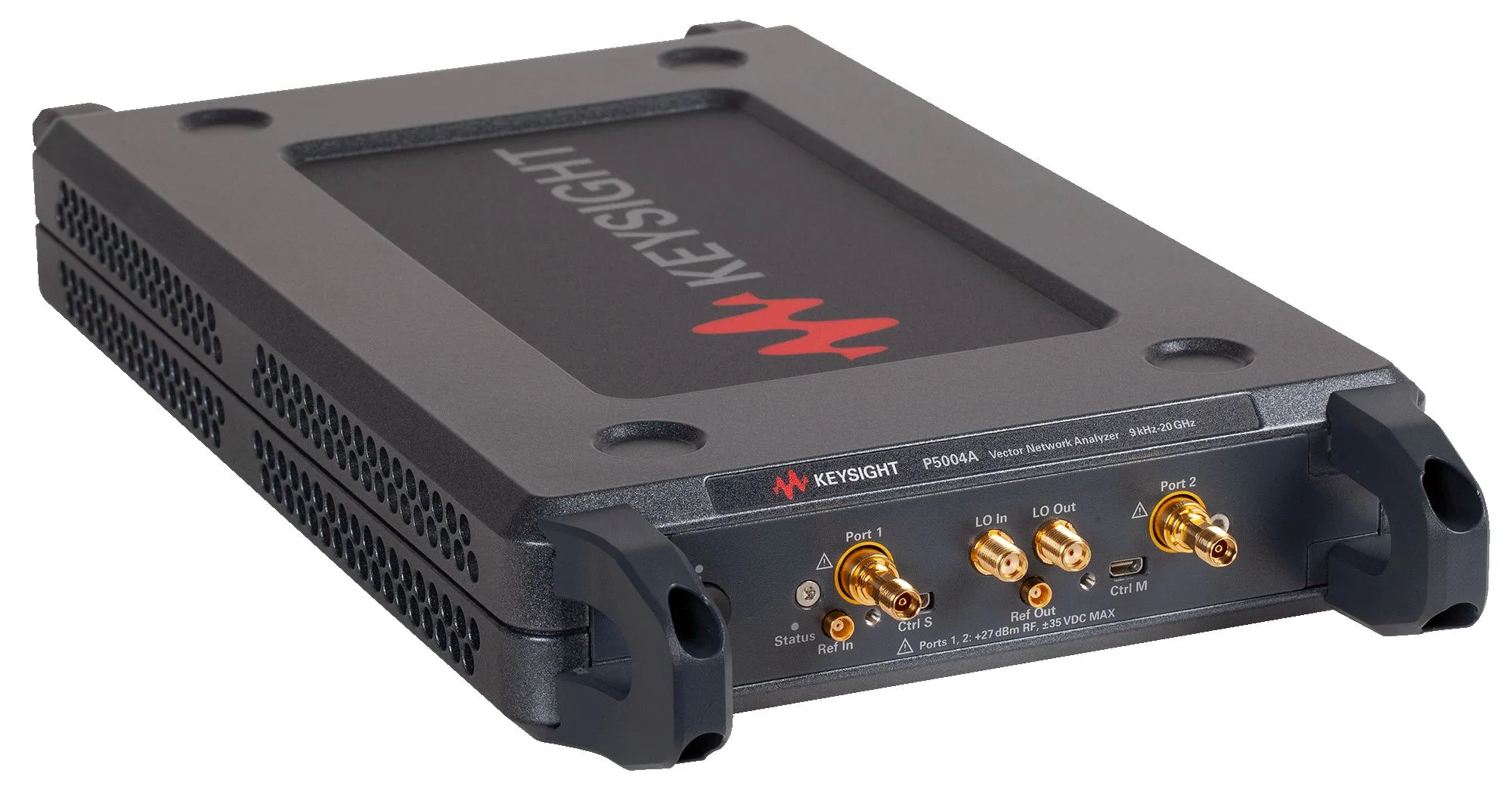

Keysight P5004A Vector Network Analyzer
Request a quote
Keysight P5004A is a compact, two-port vector network analyzer with USB connectivity, covering 9 kHz to 20 GHz for RF component testing and characterization.
Product details
| Model | P5004A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight P5004A is a compact, faceless, two-port vector network analyzer that combines portability with high-performance RF measurement capabilities. Designed for testing passive components, amplifiers, mixers, and frequency converters, the P5004A covers frequencies from 9 kHz to 20 GHz with USB connectivity and external computer control. Part of the P50xxA Streamline Series, it delivers the same measurement science and performance as Keysight's high-performance PNA instruments in a streamlined, space-saving package.
Key Features
- 2-port vector network analyzer, 9 kHz to 20 GHz
- USB connectivity for external PC control
- Compact, faceless design dramatically reduces test setup size
- Best-in-class dynamic range, measurement speed, and trace noise performance
- Wide range of measurement applications for diverse RF testing needs
- Intuitive GUI identical to Keysight high-performance PNAs
- Fast calibration support with all Keysight ECal modules
- Excellent temperature stability and repeatability
Applications
- Passive component testing (filters, couplers, antennas)
- Amplifier characterization and validation
- Mixer measurement and analysis
- Frequency converter testing
- RF component development and qualification
- Manufacturing and production testing
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Female (Plug) |
| Form Factor | USB |
