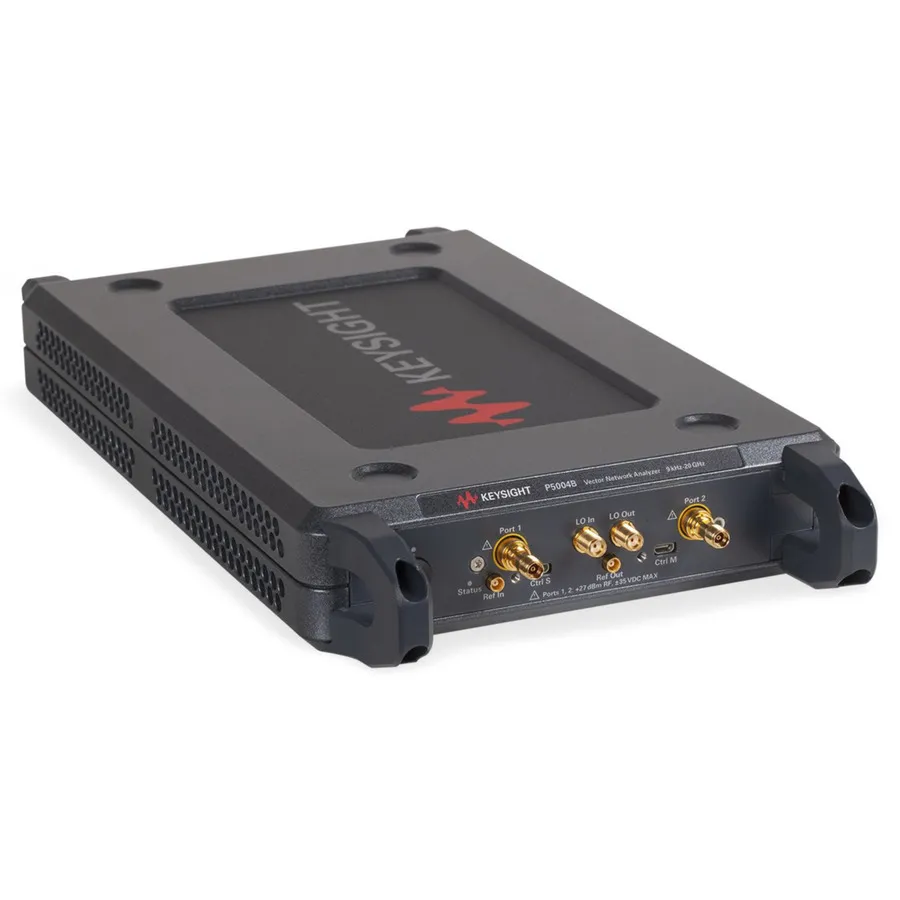

Keysight P5000B/200 Vector Network Analyzer

Overview

The Keysight P5000B/200 is a compact, 2-port vector network analyzer from the Streamline Series, covering 9 kHz to 4.5 GHz. Featuring high-speed Thunderbolt 3 connectivity to your host PC, this lightweight, portable instrument delivers robust RF measurement performance with fast, reliable, and repeatable results for component testing and network analysis, eliminating the need for a dedicated control console.

Key Features

• 2-port (option 200) configuration, 9 kHz to 4.5 GHz frequency range
• High-speed Thunderbolt 3 interface (USB Type-C) for direct PC connection
• Lightweight, portable design fitting in one hand for maximum portability
• Wide dynamic range, fast measurement speeds, and low trace noise
• Identical GUI, SCPI commands, and measurement science as high-performance benchtop VNAs
• Support for Keysight Electronic Calibration (ECal) modules for rapid calibration
• Optional enhanced time domain analysis with TDR for advanced measurements
• Cascade capability to extend measurement functionality with additional VNAs
• No on-board data storage, suitable for classified environments

Applications

• Testing passive components and amplifiers
• Characterizing mixers and frequency converters
• Portable RF measurements in field and laboratory environments
• Space-constrained measurement setups
• Shared equipment deployment across multiple teams and locations
