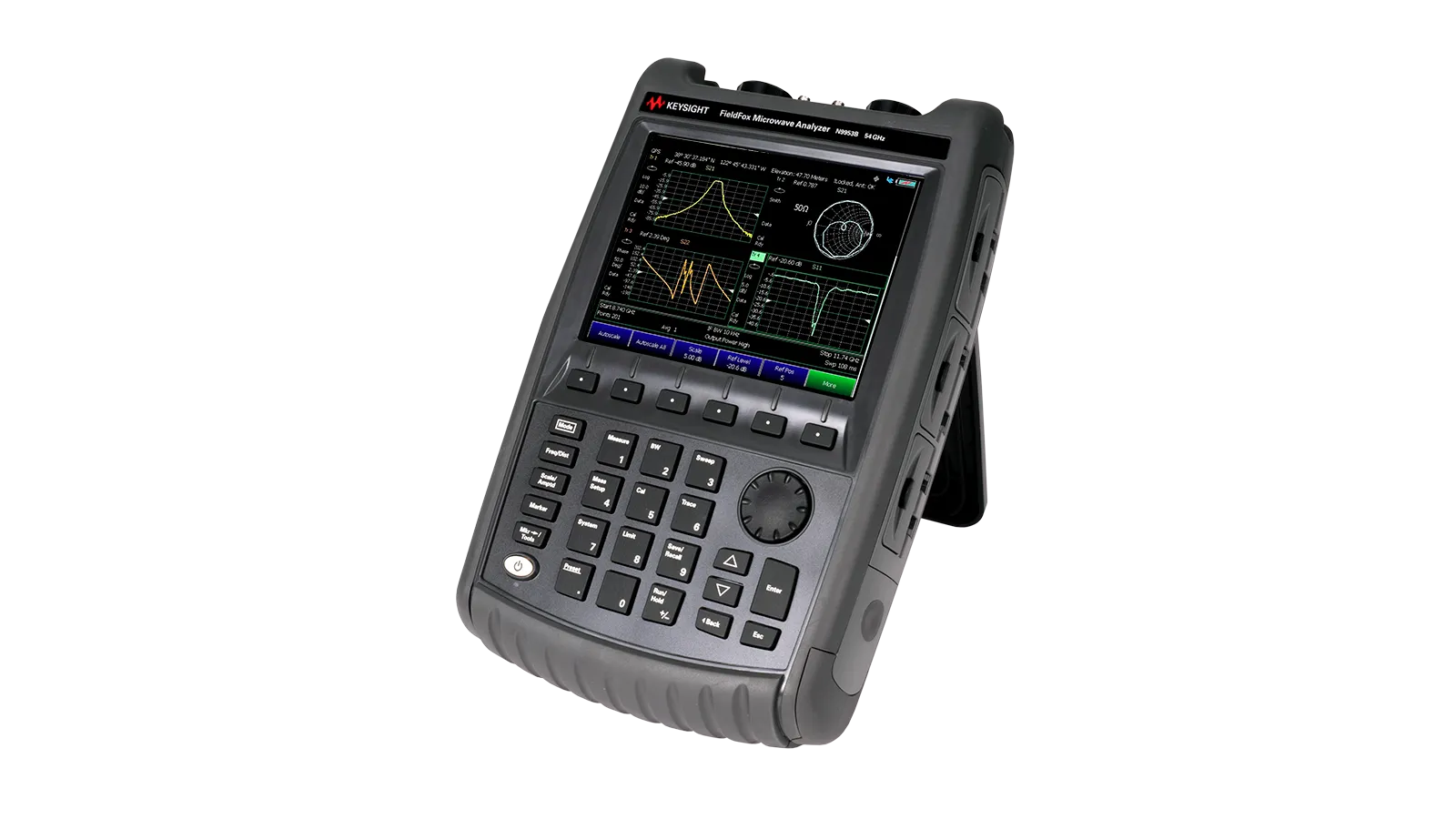

Keysight N9953B Microwave Analyzer
Request a quote
Keysight N9953B is a 54 GHz handheld microwave analyzer with 120 MHz real-time bandwidth, supporting vector network analysis, spectrum measurement, and 5G field testing.
Product details
| Model | N9953B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9953B is a 54 GHz handheld combination microwave analyzer that integrates vector network analysis, spectrum analysis, cable and antenna testing, and signal measurement in a single portable instrument. With 120 MHz real-time bandwidth and support for over 20 software functions, the analyzer can be configured as a full 2-port VNA, spectrum analyzer, power meter, vector voltmeter, or over-the-air demodulation receiver, making it suitable for field maintenance, lab characterization, and advanced troubleshooting.
Key Features
- 54 GHz maximum frequency with 1.8 mm test port connector
- 120 MHz real-time bandwidth for gap-free signal measurement
- Full 2-port vector network analyzer with >114 dB dynamic range
- Spectrum analyzer with ±0.3 dB measurement accuracy
- Cable and antenna analyzer (base model, standard feature)
- Over-the-air (OTA) measurement support for 5G NR and LTE
- GPS/GNSS receiver for geolocation and time-stamping
- Lightweight at 3.4 kg (7.4 lb) with rugged weatherproof housing
- Software-defined with over 20 configurable instrument functions
- 30 kHz minimum frequency for low-frequency measurements
Applications
- 5G network installation, commissioning, and field troubleshooting
- Cable and antenna testing with return loss and VSWR measurement
- Vector network analysis for component and device characterization
- Spectrum analysis and interference troubleshooting
- Time-domain reflectometry (TDR) cable fault location
- Power measurement using USB sensor accessories
- Signal streaming and waveform capture
- EMI/RFI source identification and localization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Frequency | 54 GHz |
| Series | B-Series |
| Backlight | Yes |
| Battery Life | 4 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | NMD 1.85 mm (m) |
| Dimensions | 11.5 x 7.4 x 3.2 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 110 dB |
| Frequency Range | 300 kHz to 54 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Quick Reference Guide, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Straps |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
