Keysight N9952B is a 50 GHz FieldFox microwave analyzer with 120 MHz real-time bandwidth, vector network analyzer, and spectrum analyzer for 5G/LTE field testing.
Product details
| Model | N9952B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

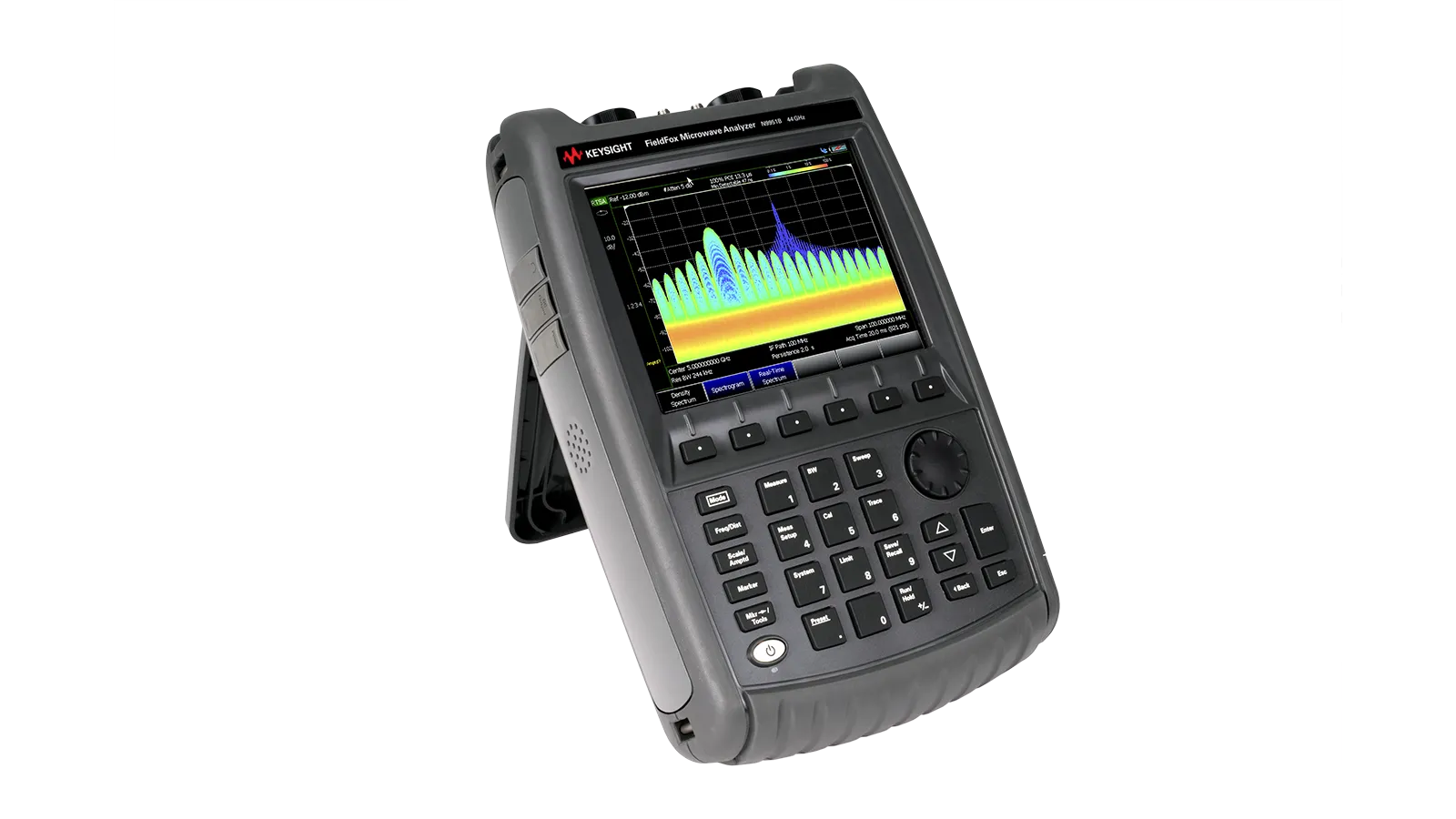

The Keysight N9952B is a handheld 50 GHz FieldFox microwave analyzer designed for RF and microwave field testing and deployment. It combines 20+ instrument functions in a single portable device, including vector network analyzer (VNA), spectrum analyzer, power meter, and over-the-air measurement capabilities. The analyzer features 120 MHz real-time bandwidth and supports comprehensive 5G NR and LTE measurements.
Key Features
- 50 GHz frequency coverage with 120 MHz real-time bandwidth
- Full 2-port vector network analyzer with 115 dB dynamic range
- Integrated spectrum analyzer with -163 dBm DANL at 1 GHz
- Over-the-air (OTA) measurements for 5G NR and LTE
- Cable and antenna analyzer (standard feature)
- Built-in CW signal source with 8 dBm output power
- Power meter with CW and swept-frequency capability
- GPS/GNSS receiver for geolocation and timestamping
- Lightweight and portable at 3.4 kg (7.4 lb)
Applications
- 5G base station (gNodeB) installation and field deployment verification
- Cable and antenna condition testing
- Transmit power and control channel power measurements
- RF spurious response verification
- Signal quality and coverage area path loss analysis
- Interference identification and troubleshooting
- AM/FM tuning and listening
- Field strength measurement
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Frequency | 50 GHz |
| Series | B-Series |
| Backlight | Yes |
| Battery Life | 4 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | NMD 2.4 mm (m) |
| Dimensions | 11.5 x 7.4 x 3.2 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 105 dB |
| Frequency Range | 300 kHz to 50 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Quick Reference Guide, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Straps |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
