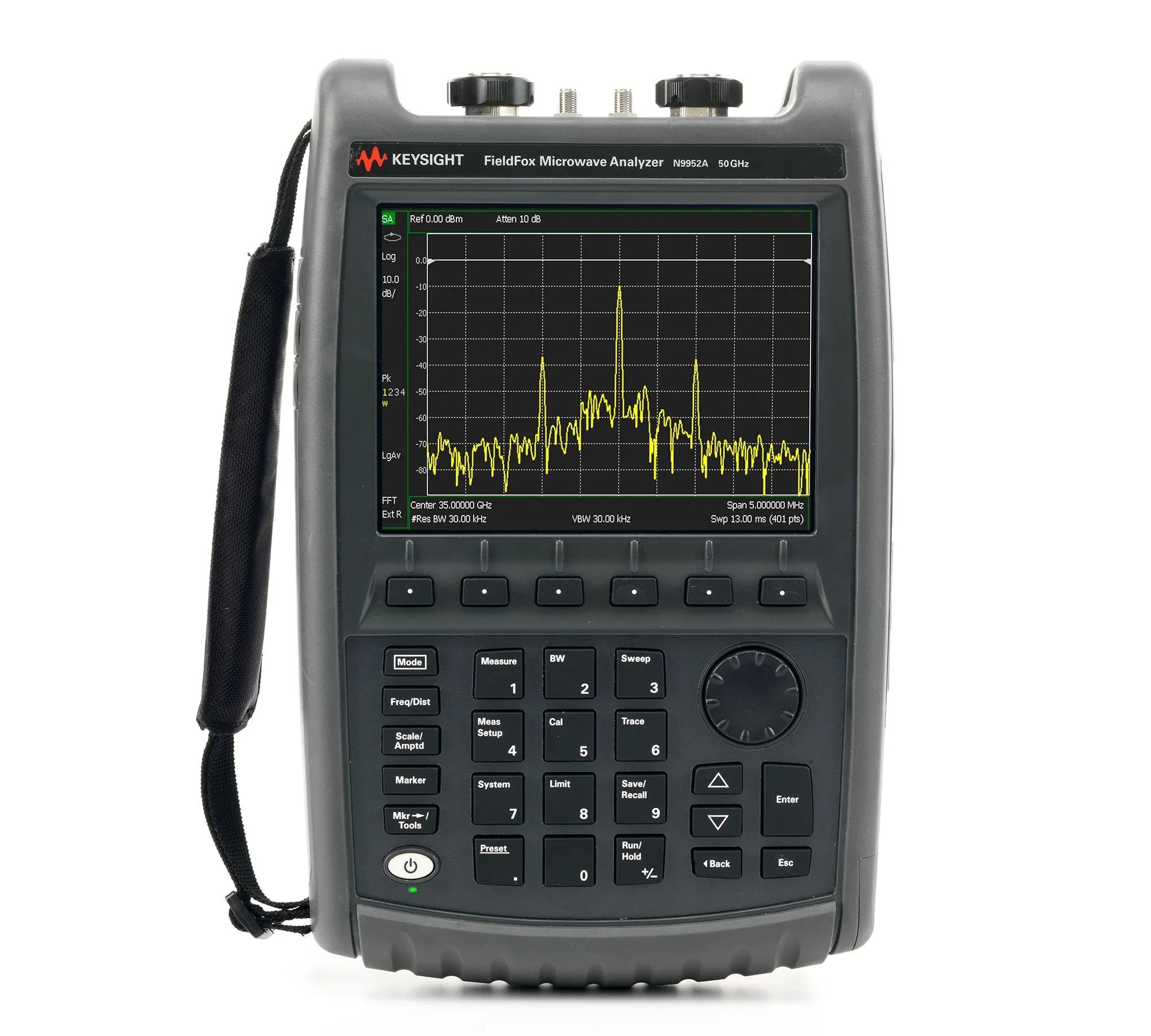

Keysight N9952A FieldFox Handheld Microwave Analyzer
Request a quote
Keysight N9952A FieldFox — 50 GHz handheld microwave analyzer with lab-grade measurements for cable, antenna, and network testing with optional spectrum analyzer capability.
Product details
| Model | N9952A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9952A FieldFox is a handheld microwave analyzer and test kit covering 300 kHz to 50 GHz. Weighing only 7.1 lbs (3.2 kg), it provides lab-grade measurements in the field for cable and antenna testing, with optional vector network analyzer and spectrum analyzer capabilities. The N9952A serves technicians and engineers performing maintenance, troubleshooting, and network characterization across RF and microwave systems.
Key Features
- Frequency range: 300 kHz to 50 GHz with 110 dB system dynamic range
- Cable and antenna analyzer with DTF and TDR measurements in single sweep
- Optional full 2-port vector network analyzer with mixed-mode S-parameters
- Optional spectrum analyzer with ±0.5 dB amplitude accuracy and no warm-up required
- Lightweight handheld design at 7.1 lbs with MIL-PRF-28800F Class 2 durability
- Expandable with optional power meter, independent signal generator, vector voltmeter, and GPS receiver
- Fast measurement speed: 478 microseconds per point at 1001-point sweep
Applications
- Cable and antenna system troubleshooting and maintenance in microwave networks
- Network analyzer measurements for RF and microwave component characterization
- Spectrum analysis for signal identification and interference detection
- Field service and installation verification for cellular and wireless networks
- Cable condition assessment and return loss measurements
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Handheld |
| Frequency | 50 GHz |
| Series | A-Series |
| Backlight | Yes |
| Battery Life | 3.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | NMD 2.4 mm (m) |
| Dimensions | 11.5 x 7.4 x 2.8 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 110 dB |
| Frequency Range | 300 kHz to 50 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Strap, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
| Resolution | 1 Hz |
