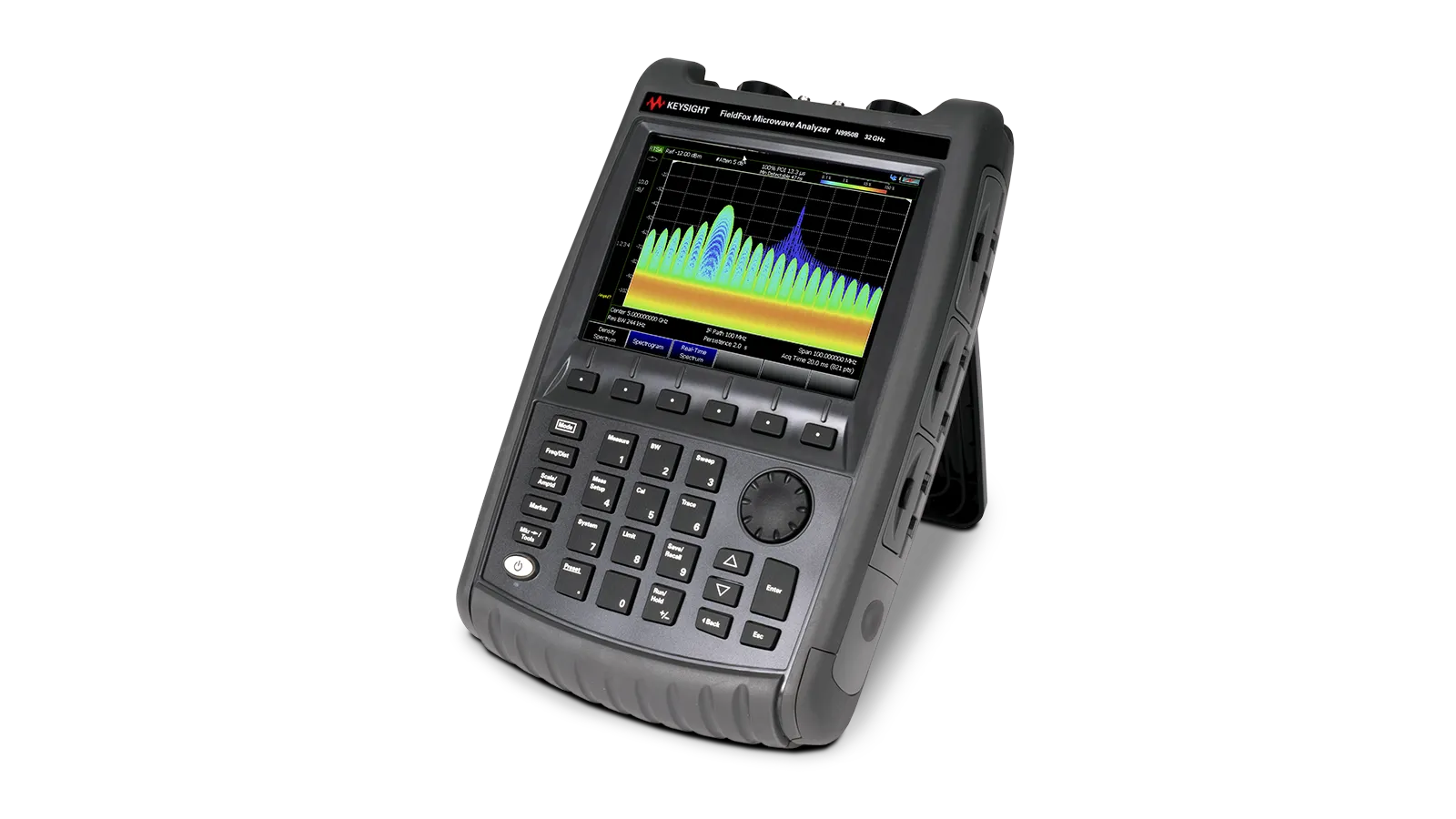

Keysight N9950B FieldFox Microwave Analyzer
Keysight N9950B FieldFox — 32 GHz portable analyzer combining vector network analyzer, spectrum analyzer, and cable/antenna analysis with 120 MHz real-time bandwidth for 5G testing.
Product details
| Model | N9950B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9950B FieldFox is a portable microwave analyzer that combines over 20 RF and microwave instrument functions in a single handheld unit. It features 32 GHz maximum frequency coverage with 120 MHz real-time bandwidth and is designed for field deployment in 5G, satellite, and automotive radar environments.
The N9950B integrates cable and antenna analysis, full 2-port vector network analysis, real-time spectrum analysis, over-the-air demodulation, and CW signal source capabilities. Its compact design (3.4 kg) and integrated GPS/GNSS enable precise geolocation and timestamping of field measurements.
Key Features
- Integrated 2-port vector network analyzer with simultaneous S-parameter measurement
- Real-time spectrum analyzer with gap-free bandwidth and no warmup time required
- Cable and antenna analyzer with transmission line analysis capabilities
- Over-the-air measurement capability for 5G NR and LTE signal analysis
- Built-in CW signal source for stimulus-response testing
- Integrated power meter for RF power measurement
- GPS/GNSS receiver with geolocation and precise time stamping
- Lightweight, rugged portable design for field use
Applications
- 5G network deployment and field troubleshooting
- Satellite communication system testing
- Automotive radar development and verification
- Cable and antenna field verification
- RF component and device characterization
- In-field signal analysis and spectrum monitoring
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Frequency | 32 GHz |
| Series | B-Series |
| Backlight | Yes |
| Battery Life | 4 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | NMD 2.4 mm (m) |
| Dimensions | 11.5 x 7.4 x 3.2 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 105 dB |
| Frequency Range | 300 kHz to 32 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Quick Reference Guide, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Straps |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
