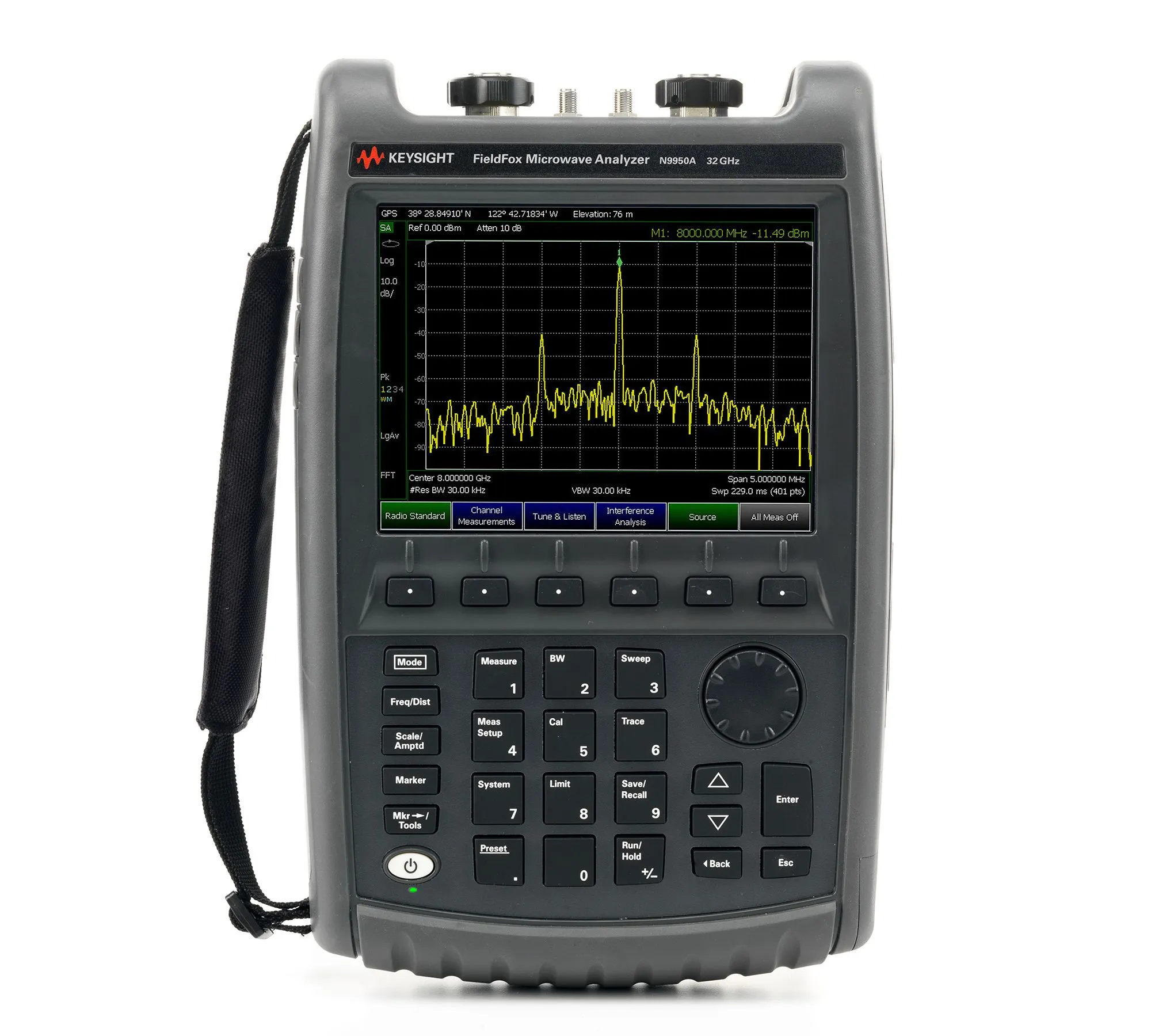

Keysight N9950A FieldFox Handheld Microwave Analyzer
Request a quote
Keysight N9950A FieldFox is a handheld microwave combination analyzer with 32 GHz max frequency, cable and antenna analysis, optional spectrum analysis, and weighs only 7.1 lb.
Product details
| Model | N9950A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9950A FieldFox is a rugged, handheld microwave combination analyzer designed for field maintenance, troubleshooting, and system verification. At only 7.1 pounds, it delivers lab-grade measurements across a frequency range of 300 kHz to 32 GHz with integrated cable and antenna analysis as the standard configuration, and optional spectrum analyzer and vector network analyzer capabilities.
Key Features
- Frequency range 300 kHz to 32 GHz with 110 dB system dynamic range
- Integrated cable and antenna analyzer (CAT) as standard configuration
- Optional spectrum analyzer and vector network analyzer (VNA) with vector voltmeter
- Built-in power meter for CW, swept-frequency, and pulse power measurements
- Full-band tracking generator with 4 dBm output power
- Built-in GPS receiver for location logging
- Built-in variable DC voltage source for device bias
- Interference analyzer for spectrum monitoring
- DTF/TDR cable measurements in a single sweep
- Lightweight, portable design at 7.1 lb (3.2 kg)
Applications
- Field troubleshooting and system verification for RF and microwave networks
- Cable and transmission line characterization using DTF and TDR
- Antenna testing and antenna array analysis
- Spectrum monitoring and interference detection
- Component testing and S-parameter measurements
- Power measurement and signal generation in field environments
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 100kHz <= 1MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Handheld |
| Frequency | 32 GHz |
| Series | A-Series |
| Backlight | Yes |
| Battery Life | 3.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | NMD 2.4 mm (m) |
| Dimensions | 11.5 x 7.4 x 2.8 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 110 dB |
| Frequency Range | 300 kHz to 32 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Strap, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
| Resolution | 1 Hz |
