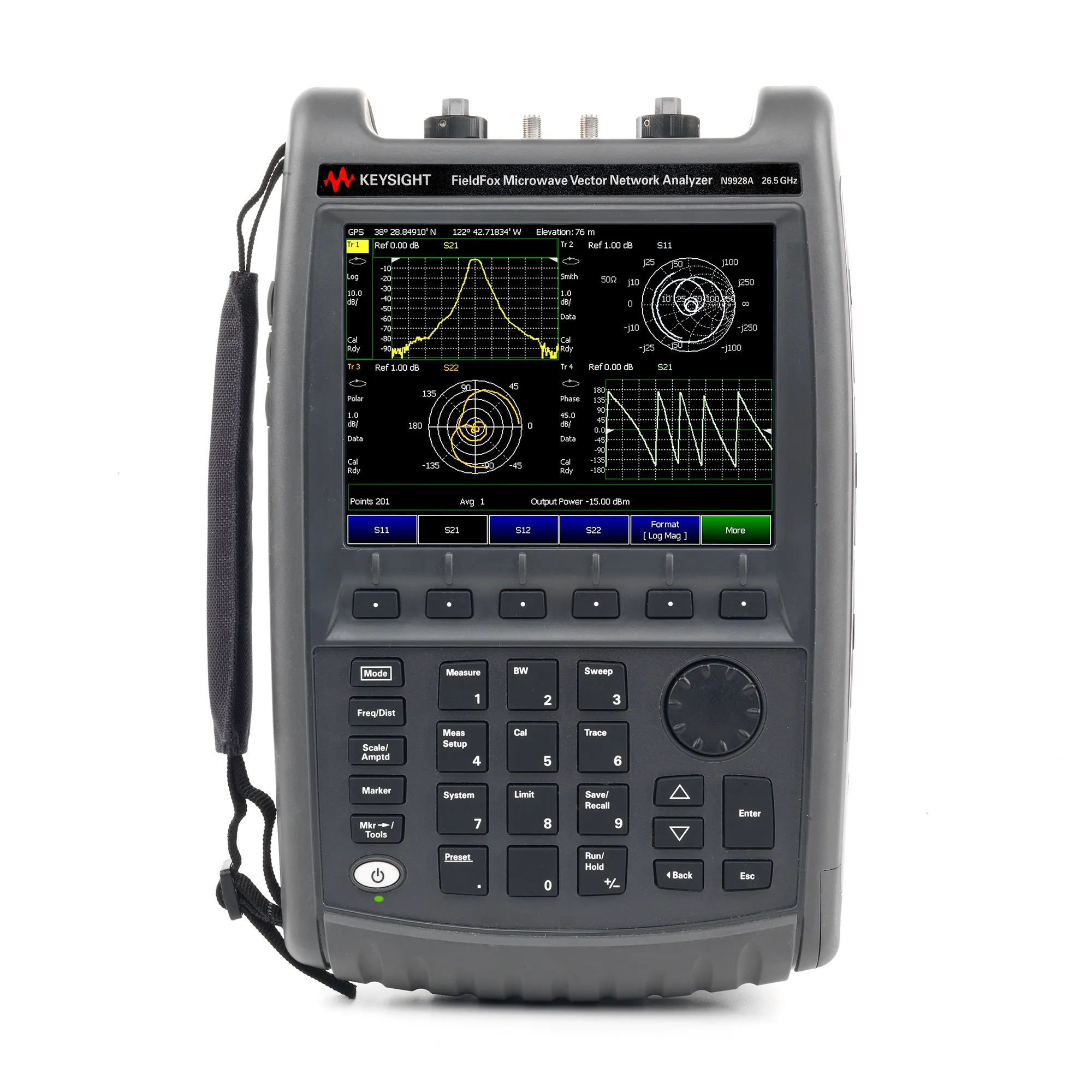

Keysight N9928A FieldFox Handheld Microwave Vector Network Analyzer
Request a quote
Keysight N9928A FieldFox handheld microwave analyzer spans 30 kHz to 26.5 GHz with integrated cable and antenna analysis, plus optional VNA and spectrum analyzer.
Product details
| Model | N9928A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9928A FieldFox is a handheld microwave vector network analyzer designed for field troubleshooting, maintenance, and in-depth system analysis. Operating from 30 kHz to 26.5 GHz, the N9928A combines the functionality of a cable and antenna analyzer with a 2-port vector network analyzer in a lightweight, portable form factor at just 6.6 lb (3.0 kg).
Key Features
- Frequency range: 30 kHz to 26.5 GHz
- 2-port vector network analyzer (standard)
- Cable and antenna analyzer (optional)
- Simultaneous measurement of all four S-parameters
- DTF and TDR cable measurements in single sweep
- Optional spectrum analyzer, power meter, vector voltmeter
- QuickCal simplified calibration
- Built-in DC source and optional GPS receiver
- Lightest all-in-one analyzer design
- No warm-up required for spectrum measurements (±0.5 dB accuracy)
Applications
- Field cable and antenna troubleshooting
- S-parameter and network characterization
- Cable fault location using DTF/TDR
- Spectrum analysis in field environments
- Power and signal integrity measurements
- System integration and verification
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1kHz <= 100kHz |
| Connector Type | 3.5mm-Male (Jack) |
| Number of Ports | 2 |
| Maximum Frequency | 26.5 GHz |
| Minimum Frequency | 30 kHz |
| Type | Handheld |
