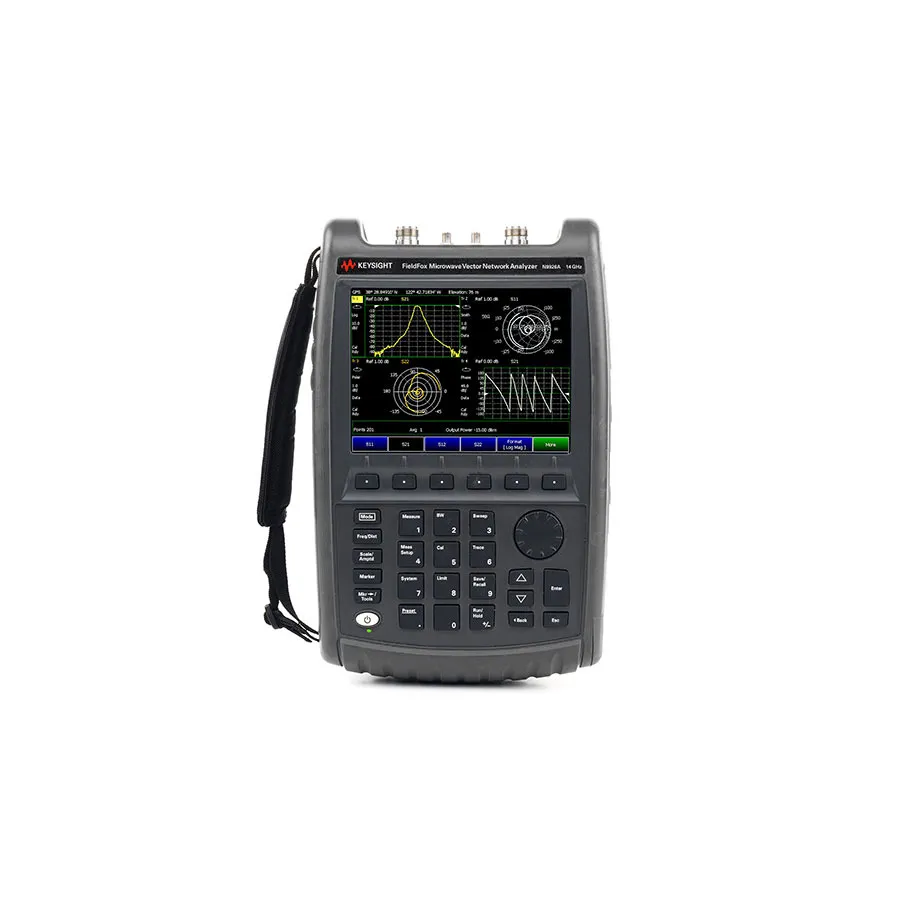

Keysight N9926A FieldFox 14 GHz Handheld Microwave Vector Network Analyzer
Request a quote
Keysight N9926A FieldFox 14 GHz handheld microwave vector network analyzer with S-parameter, cable/antenna analysis, and optional power meter and GPS capabilities.
Product details
| Model | N9926A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9926A FieldFox is a portable, battery-operated 14 GHz vector network analyzer designed for field maintenance, troubleshooting, and device characterization. It features a dust-free, rugged design suitable for harsh environments, with MIL-STD-810G compliance and type testing for explosive environments.
Key Features
- Frequency range: 30 kHz to 14 GHz
- Base configuration: transmission/reflection VNA (S11, S21)
- Optional full two-port S-parameters (S11, S21, S12, S22)
- Directivity > 42 dB; dynamic range 100 dB to 9 GHz, 94 dB to 14 GHz
- Flat output power ± 1 dB across frequency range
- Optional cable and antenna analyzer
- Optional power meter, vector voltmeter, GPS receiver, and variable DC source
Rugged Design
- Dust-free with no fans or vents for extended reliability
- Water-resistant construction
- MIL-PRF-28800F Class 2 compliant
- MIL-STD-810G Method 511.5 rated for explosive environments
Applications
- Satellite communications systems
- Microwave backhaul maintenance
- Military communications
- Radar system characterization
- Active and passive device testing
Included Accessories
- AC/DC power adapter
- Battery
- Soft carrying case
- LAN cable
- Quick reference guide and user's guide
- Three-year warranty
Specifications
| Number of Ports | 2 |
| Maximum Frequency | 14 GHz |
| Minimum Frequency | 30 kHz |
| Type | Handheld |
