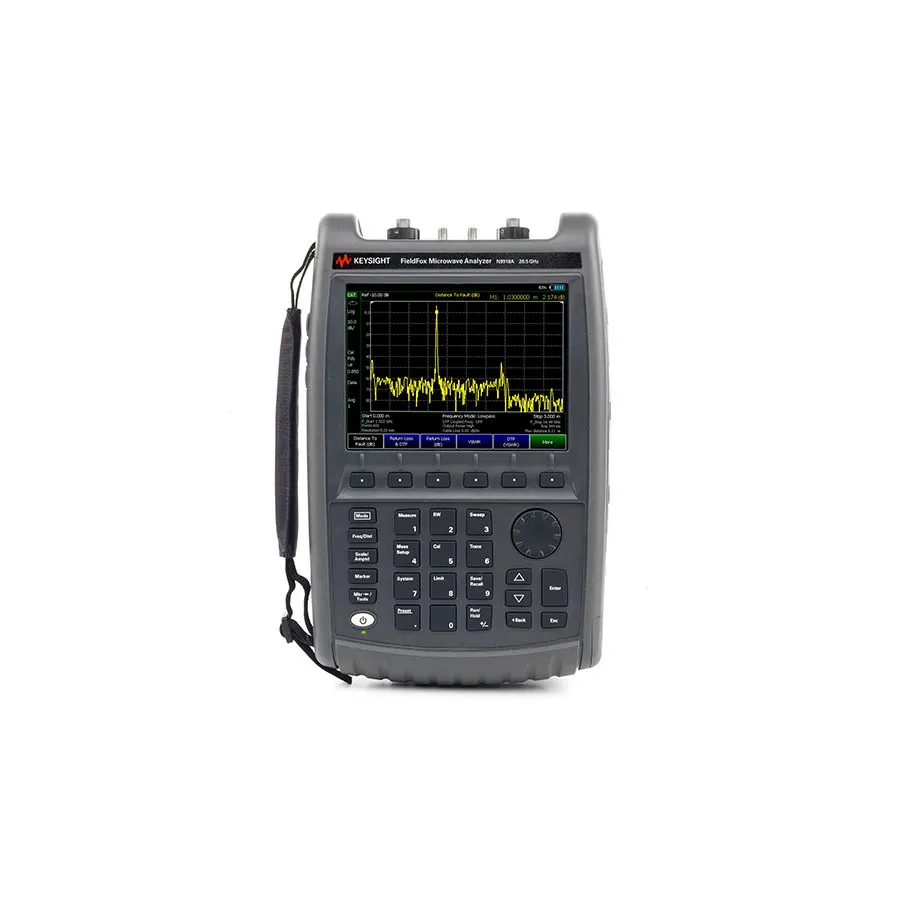

Keysight N9918A 26.5 GHz Handheld Microwave Analyzer
Request a quote
26.5 GHz handheld combination analyzer offering cable and antenna testing with optional VNA and spectrum analysis capabilities.
Product details
| Model | N9918A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9918A is a lightweight, durable handheld combination analyzer designed for field and laboratory work. Operating up to 26.5 GHz, it functions as a cable and antenna analyzer in its standard configuration and can be expanded with optional capabilities for spectrum analysis, vector network analysis, power measurements, and signal analysis. At only 6.6 lb (3.0 kg), it is among the lightest all-in-one analyzers available.
Key Features
- Maximum frequency: 26.5 GHz
- Standard cable and antenna analyzer with DTF and TDR measurements
- Optional VNA (Vector Network Analyzer) capabilities
- Optional spectrum analyzer with built-in power meter
- Simultaneous measurement of all four S-parameters
- System dynamic range: 100 dB
- Sweep speed: 432 µs/point at 1001 points
- Output power: -1 dBm
- Trace noise: 0.004 dB
- Lightweight design at only 6.6 lb (3.0 kg)
- QuickCal calibration for simple setup
- Accurate spectrum measurements (±0.5 dB) without warm-up
Applications
- Cable and antenna analysis in field and laboratory settings
- Transmission line measurements with DTF/TDR
- S-parameter characterization with optional VNA
- Spectrum analysis and signal monitoring
- Power measurements with optional capabilities
- Cellular and wireless field testing
Specifications
| Frequency | 26.5 GHz |
| Series | A-Series |
| Backlight | Yes |
| Battery Life | 3.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.5 x 7.4 x 2.8 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 100 dB |
| Frequency Range | 30 kHz to 26.5 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Strap, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
| Resolution | 1 Hz |
