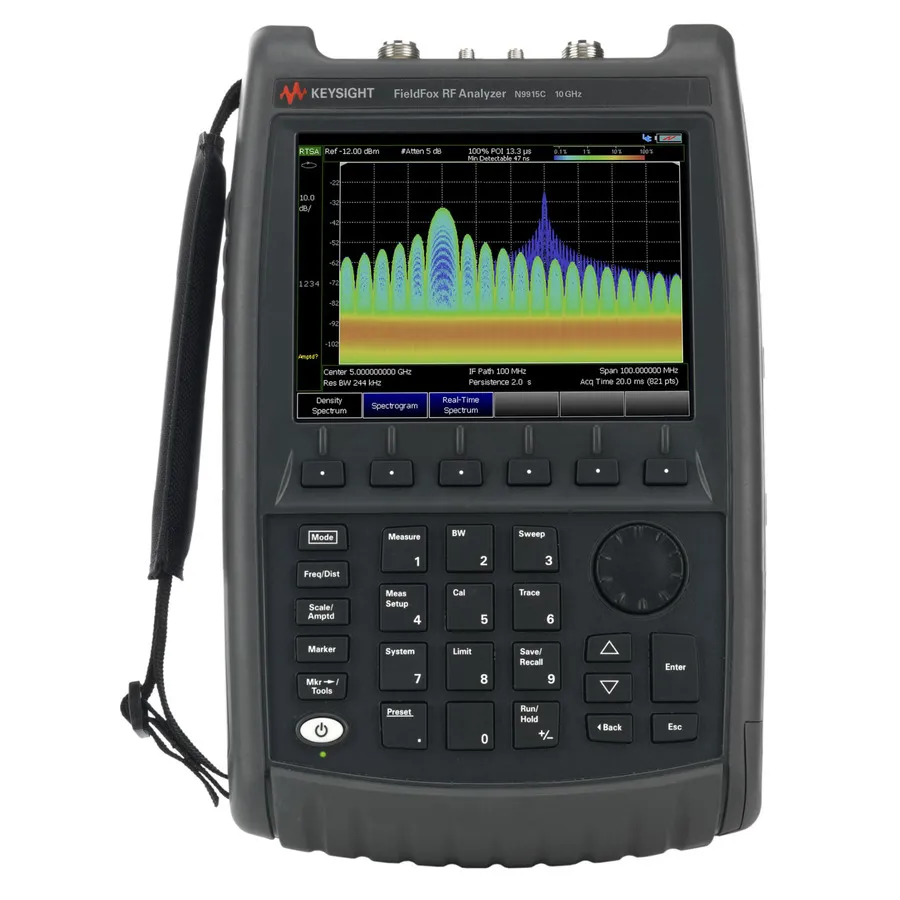

Keysight N9915C 10 GHz Cable and Antenna Analyzer
Request a quote
Keysight N9915C portable 10 GHz cable and antenna analyzer with CAT/VNA/SA modes, 120 MHz real-time bandwidth, and 115 dB dynamic range for comprehensive RF field measurements.
Product details
| Model | N9915C |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9915C is a portable, battery-powered handheld analyzer designed for field measurement of RF devices including cables, antennas, filters, amplifiers, and signal sources. It operates from 3 kHz to 10 GHz and combines cable and antenna test (CAT), vector network analysis (VNA), and spectrum analysis (SA) capabilities in a single rugged instrument weighing only 3.4 kg.
Key Features
- Gap-free, real-time spectrum analysis with up to 120 MHz bandwidth
- Simultaneous measurement of all four S-parameters with 115 dB dynamic range
- Accurate spectrum analyzer measurements with ±0.3 dB without warmup
- Over-the-air measurement capability for 5G NR and LTE signals
- Integrated GPS/GNSS for geolocation and signal timestamping
- Lightweight, portable battery-powered design for field operations
- 6.5-inch LCD-LED display for field visibility
- Type-N (female) test port connector
Applications
- Cable loss and attenuation measurement
- Antenna impedance and return loss testing
- Filter and amplifier characterization
- RF spectrum monitoring and signal analysis
- 5G NR and LTE over-the-air measurements
- Network installation and troubleshooting
- Field site surveys and commissioning
Specifications
| Frequency | 10 GHz |
| Series | C-Series |
| Backlight | Yes |
| Battery Life | 4 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.5 x 7.4 x 3.2 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 104 dB |
| Frequency Range | 3 kHz to 10 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC adapter, Localized power cord, Rechargeable Li-ion battery, Soft carrying case with backpack and shoulder straps, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | -10 to 55°C |
