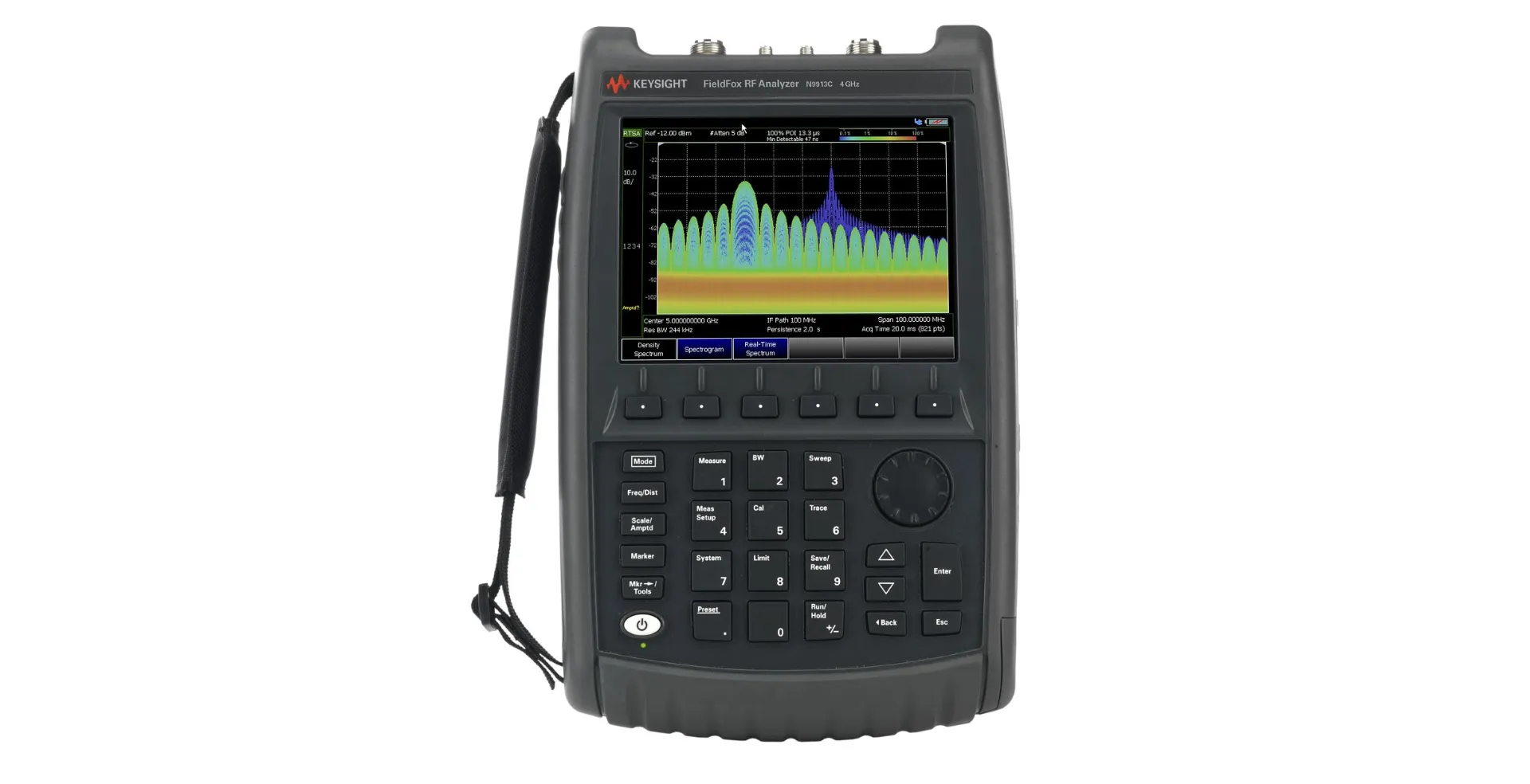

Keysight N9913C FieldFox RF Analyzer
Request a quote
Keysight N9913C FieldFox is a portable microwave analyzer (CAT/SA/VNA) from 9 kHz to 4 GHz with GPS, 4-hour battery, and MIL-standard durability.
Product details
| Model | N9913C |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
N9913C FieldFox is a portable, battery-powered microwave analyzer designed for field RF measurements on cables, antennas, filters, and amplifiers. It combines cable and antenna testing (CAT), spectrum analysis (SA), and vector network analysis (VNA) in one instrument, serving technicians and engineers in telecommunications, aerospace, and RF manufacturing.
Key Features
- Microwave analyzer covering 9 kHz to 4 GHz for spectrum analysis, 30 kHz to 4 GHz for CAT/VNA
- Superior DANL (Displayed Average Noise Level) of −160 dBm from 3 kHz to 6.5 MHz for enhanced sensitivity
- Simultaneous measurement of all four S-parameters with 115 dB dynamic range
- 5G and LTE Over-The-Air (OTA) support for modern wireless testing
- Built-in GPS receiver for precise location tracking and asset management
- Built-in variable voltage DC bias source for active component testing
- Anti-glare 6.5-inch LCD display with LED backlight for field visibility
- Field-swappable lithium-ion battery lasting up to 4 hours per charge
- Type-N female test port connectors for standard RF interfacing
- Meets MIL-PRF-28800F Class 2, MIL-STD-810G, and IEC/EN 60529 durability standards
- Remote control via SCPI protocol over LAN and USB
- Software-upgradeable frequency, bandwidth, and functionality via license keys
- USB Power Sensor support for external measurement capabilities
Applications
- Cable and antenna testing and characterization
- Spectrum analysis and monitoring
- Vector network analysis for filter and amplifier measurements
- 5G and LTE device testing and validation
- Field service and maintenance of RF equipment
- Electromagnetic interference (EMI) and electromagnetic compatibility (EMC) surveys
Included Accessories
- AC/DC power adapter
- Localized power cord
- Rechargeable lithium-ion battery
- Soft carrying case with backpack and shoulder straps
- Quick Reference Guide
Specifications
| High Frequency (range) | 1GHz <= 10GHz |
| Frequency | 4 GHz |
| Series | C-Series |
| Backlight | Yes |
| Battery Life | 4 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.5 x 7.4 x 3.2 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 104 dB |
| Frequency Range | 3 kHz to 4 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC adapter, Localized power cord, Rechargeable Li-ion battery, Soft carrying case with backpack and shoulder straps, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | -10 to 55°C |
