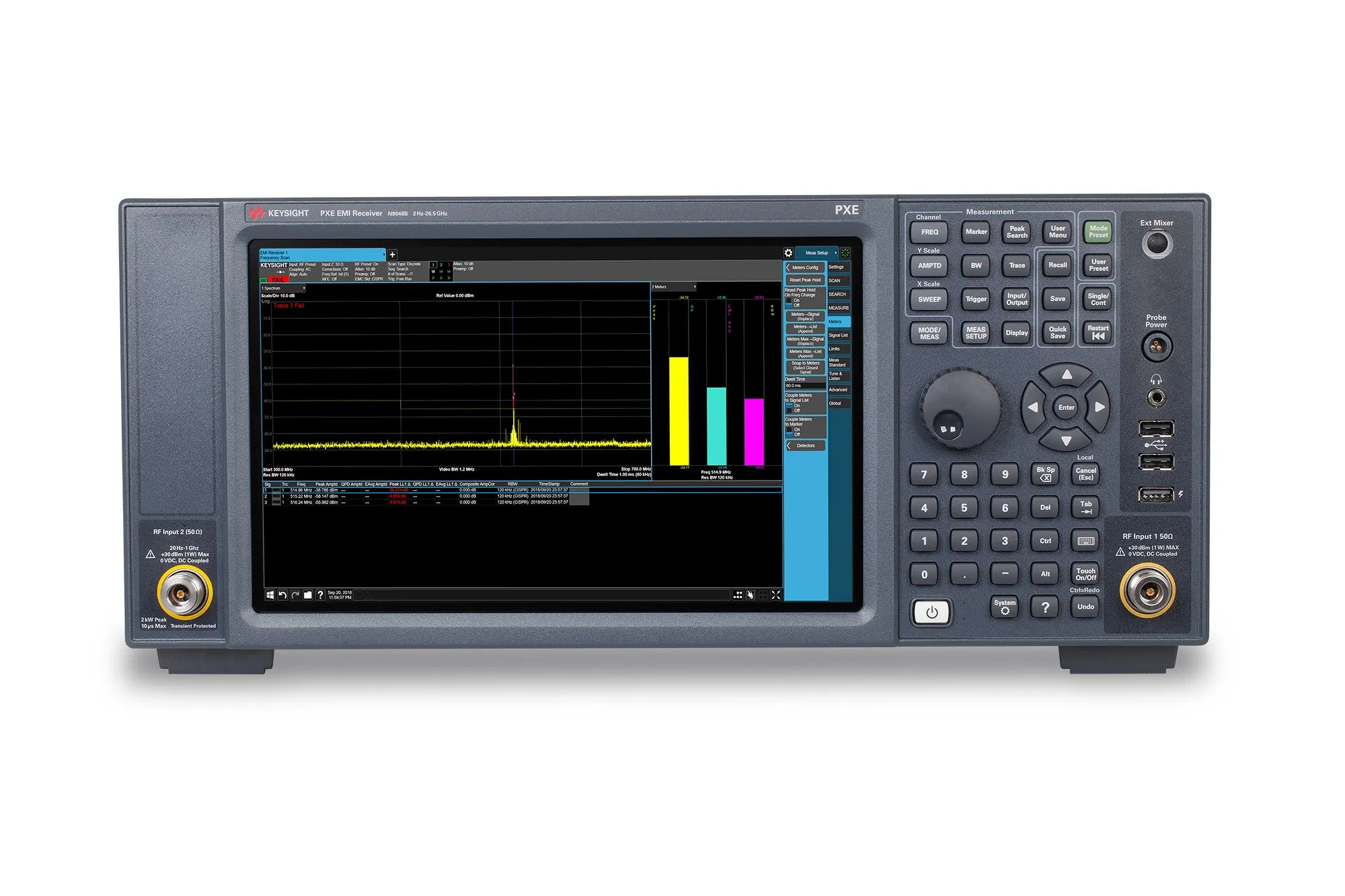

Keysight N9048B EMI Receiver
Request a quote
Keysight N9048B is a standards-compliant EMI receiver with 1 Hz–44 GHz frequency range, industry-leading sensitivity, and real-time signal capture for EMC testing.
Product details
| Model | N9048B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9048B is a standards-compliant EMI receiver and diagnostic signal analyzer designed for EMC testing. It provides the accuracy, repeatability, and reliability required for efficient EMI testing in laboratory and field environments, with industry-leading sensitivity and real-time signal analysis capabilities.
Key Features
- Frequency range from 1 Hz to 44 GHz (with optional mixers to 1.1 THz)
- Real-time bandwidth up to 350 MHz for gapless signal capture and analysis
- DANL of -174 dBm/Hz @ 1 GHz with industry-leading sensitivity and dynamic range
- Time Domain Scan (TDS) to significantly reduce overall test time
- Real Time Scan with simultaneous frequency domain, time domain, and spectrogram views
- Compliant with CISPR 16-1-1:2019, MIL-STD-461G, ANSI C63.2 and FCC standards
- Intuitive multi-touch user interface
- X-Series upgradability for present and future test needs
Applications
- EMC testing and EMI receiver operations
- Analog demodulation and basic IQ analysis
- Military EMI testing per MIL-STD-461
- CISPR 16-1-1 compliant EMC diagnostics
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
