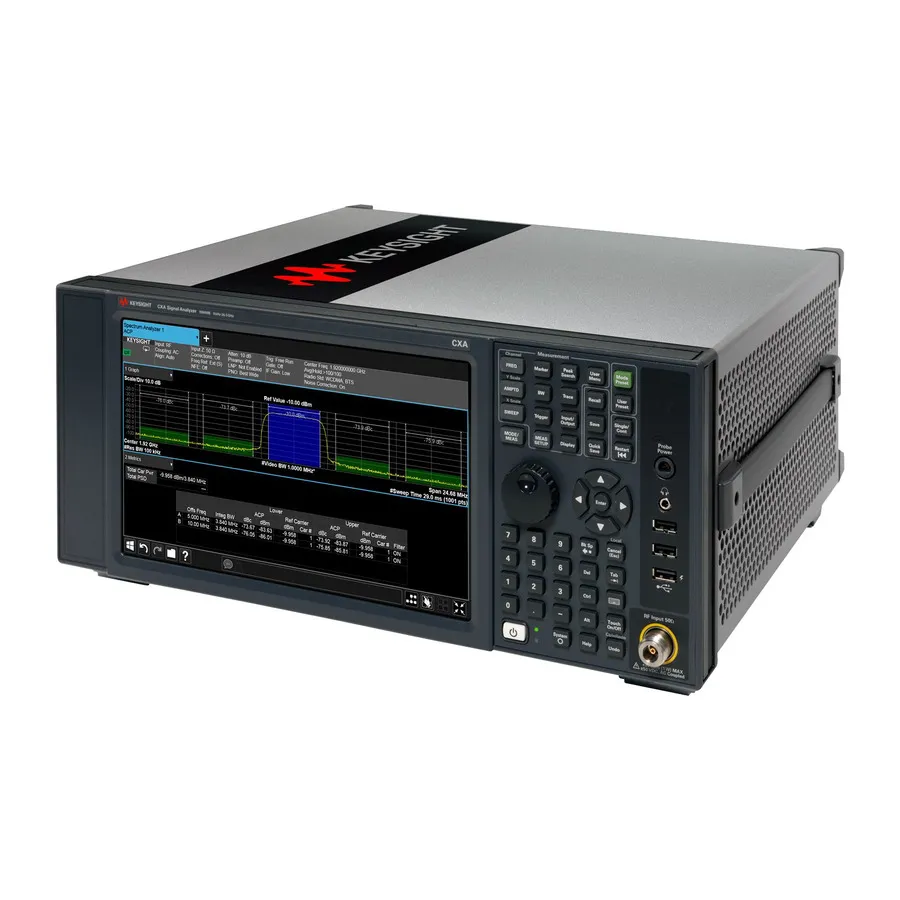

Keysight N9000B/503 Signal Analyzer
Request a quote
Keysight N9000B CXA entry-level signal analyzer covers 9 kHz to 3 GHz with 10 MHz analysis bandwidth, multi-touch 10.6-inch display, and comprehensive spectrum analysis capabilities.
Product details
| Model | N9000B/503 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9000B/503 CXA Signal Analyzer is an entry-level member of the renowned X-Series family, delivering reliable and cost-effective signal characterization for industrial communications, RF design, and IoT applications. Built on proven measurement science, the CXA offers a flexible, scalable platform for spectrum and signal analysis ranging from RF design verification to manufacturing and field service.
Key Features
- Frequency range: 9 kHz to 3.0 GHz
- 10 MHz analysis bandwidth (up to 25 MHz maximum)
- Displayed average noise level: -163 dBm at 1 GHz with preamplifier
- Third order intercept: +17 dBm at 1 GHz
- Absolute amplitude accuracy: ±0.5 dB
- Resolution bandwidth: 1 Hz to 8 MHz
- Enhanced phase noise performance
- 10.6-inch multi-touch display for intuitive operation
- Dual-core 64-bit processor with 8 GB RAM and removable solid-state drive
- PowerSuite included for channel power, ACP, occupied bandwidth, and more
- USB 3.0, GPIB, and 100Base-T LAN connectivity
- Three-year warranty
Applications
- RF design verification and engineering
- Manufacturing test and repair service
- Wireless device compliance testing
- IoT system characterization and troubleshooting
- Educational signal analysis training
- EMI pre-compliance measurements
Included Accessories
- 2 side carrying straps
- Tilt stand with 4 rear feet and 4 bottom feet
- User's guide (embedded in help system)
- Power cord
Specifications
| Frequency Range | 0.5 - 4.0 GHz |
| Maximum Frequency | 3 GHz |
| Tracking Generator | No |
| Noise Floor | -163 dBm |
| Product Type | Benchtop |
| Preamplifier | No |
| Series | CXA X-Series |
| Display Type | 10.6" LCD |
| Input Connector | Type-N female, USB Type “A” (female), BNC female, 15-pin mini D-SUB, IEEE-488 bus connector, 1000BaseT |
| Interface | GPIB, LAN / Ethernet, Other, USB Host, USB, VGA or SVGA Out |
| Memory | 8 GB |
| Minimum Frequency | 9 kHz |
| Warranty | 3 Years |
