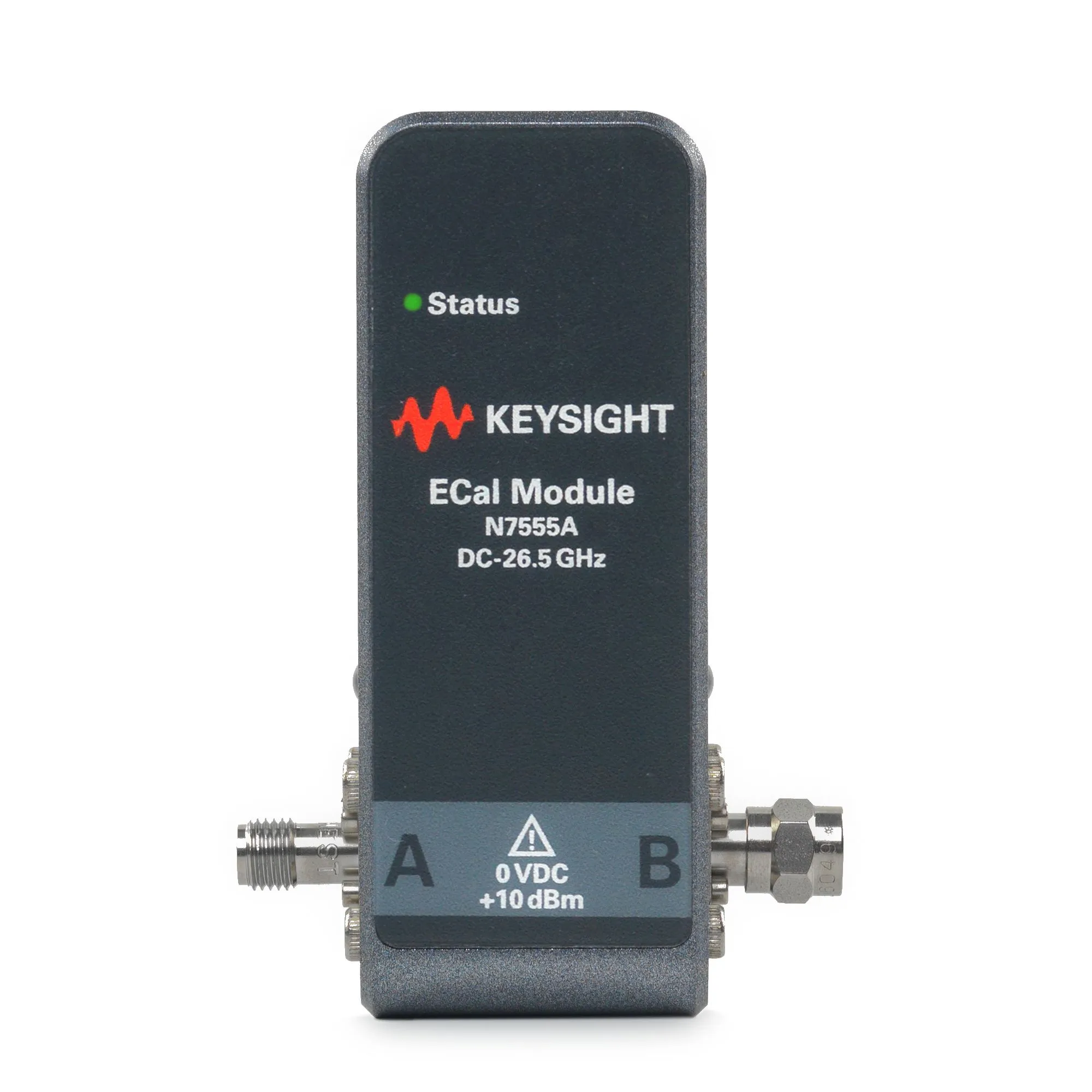

Keysight N7555A Electronic Calibration Module
Request a quote
Keysight N7555A is a 2-port electronic calibration module for vector network analyzers with DC to 26.5 GHz frequency coverage and 3.5 mm connectors.
Product details
| Model | N7555A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N7555A is a value-line 2-port electronic calibration (ECal) module that accelerates the calibration process for vector network analyzers. Featuring DC to 26.5 GHz frequency coverage, the N7555A is compatible with Keysight's PNA-X, PNA, ENA, PXI analyzers and FieldFox handheld instruments. It connects via a single USB 2.0 micro-interface for seamless integration with the instrument's internal calibration firmware.
Key Features
- Frequency range: DC to 26.5 GHz
- Compact 2-port module with 3.5 mm connectors
- Zero warm-up time for immediate calibration
- Reduces calibration time to approximately 50% versus traditional mechanical kits
- USB 2.0 interface integration
- Cost-effective to replace rather than recertify
Applications
- Rapid two-port network analyzer calibration in RF/microwave testing
- High-frequency device and circuit characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC |
| Form Factor | Accessory |
