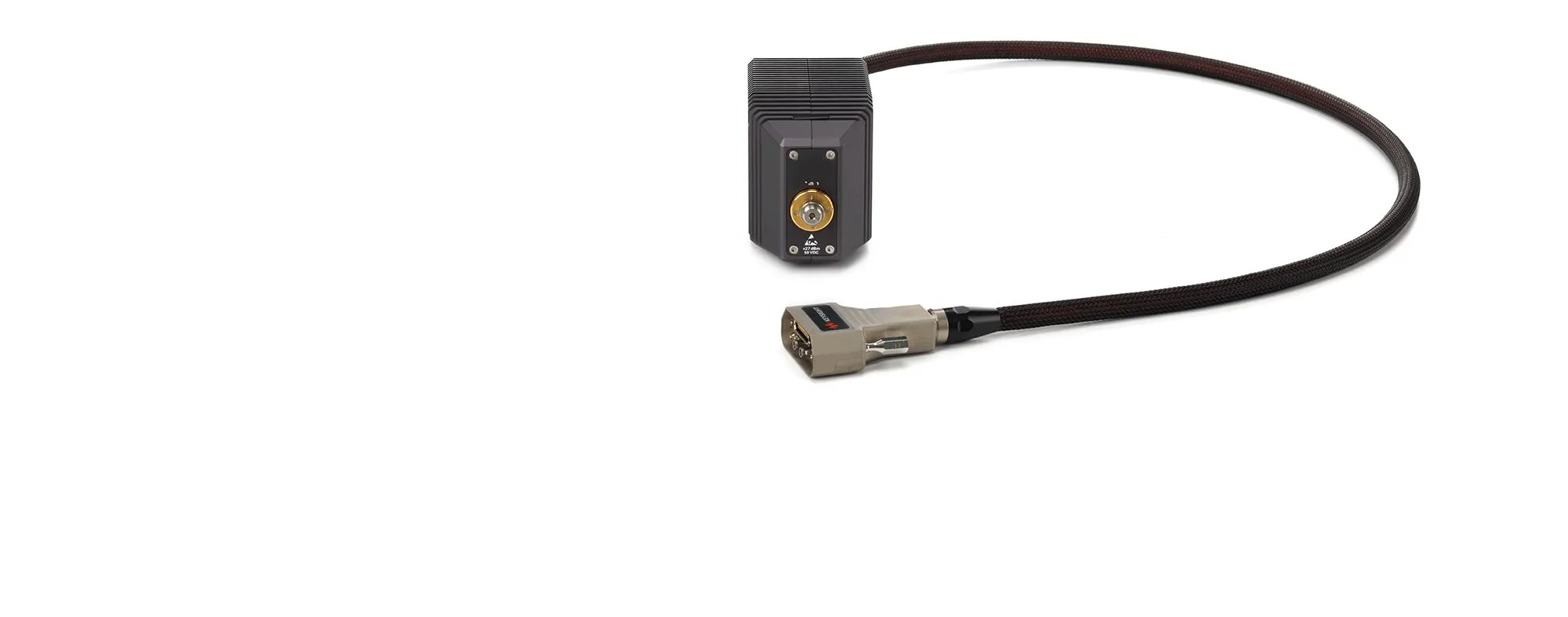

Keysight N5295AX51 Frequency Extension Module
Request a quote
Keysight N5295AX51 is a broadband frequency extension module for PNA/PNA-X analyzers, extending frequency coverage from 10 MHz to 120 GHz.
Product details
| Model | N5295AX51 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5295AX51 is a compact broadband frequency extension module designed for use with Keysight PNA and PNA-X based vector network analyzers. It enables users to extend the frequency coverage of a base PNA/PNA-X to cover a wide frequency range from 10 MHz to 120 GHz, allowing for comprehensive millimeter-wave testing and characterization.
Key Features
- Wide frequency range from 10 MHz to 120 GHz
- Compact lightweight design
- Built-in 1.8 m interface cable for connection to N5292A controller
- Typical maximum power of +8 dBm to 60 GHz, +5 dBm to 110 GHz, +4 dBm to 120 GHz
- Typical sweep range from -60 dBm to maximum power
- Typical noise floor of -120 dBm to 26.5 GHz, -110 dBm to 110 GHz, -100 dBm to 120 GHz
- Typical performance to 125 GHz with operational over-range frequency to 130 GHz
Applications
- Millimeter-wave component testing
- High-frequency device characterization
- Broadband network analysis
- RF and microwave circuit validation
Specifications
| High Frequency (range) | 85GHz < |
| Low Frequency (range) | 1MHz <= 10MHz |
