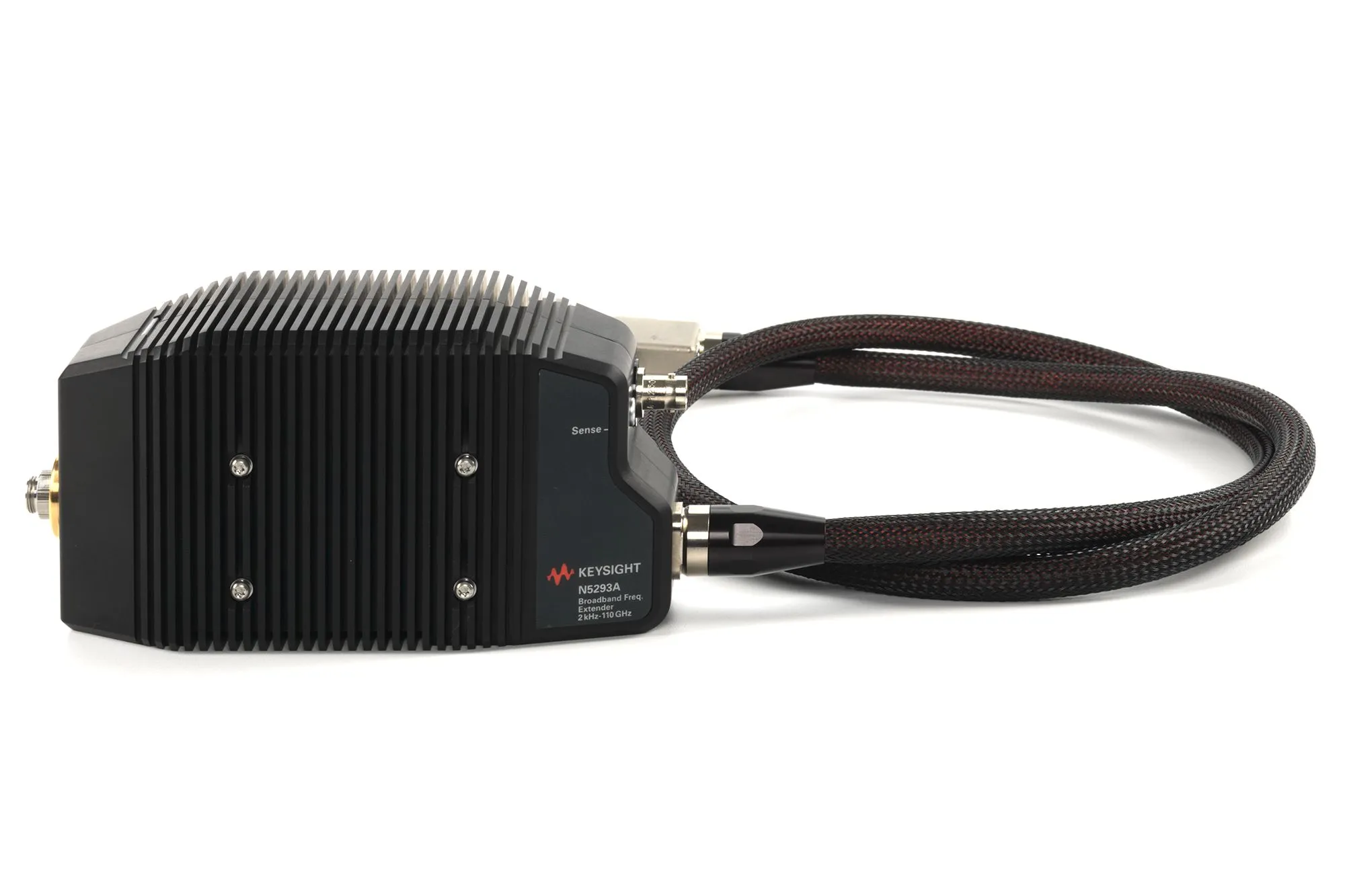

Keysight N5295AX03 Broadband Frequency Extension Module
Request a quote
Keysight N5295AX03 extends PNA/PNA-X frequency coverage from 900 Hz to 120 GHz with built-in bias tee, achieving +8 dBm maximum power to 60 GHz.
Product details
| Model | N5295AX03 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5295AX03 is a broadband frequency extension module designed for use with Keysight PNA and PNA-X based millimeter-wave solutions. This compact and lightweight module interfaces with the N5292A test set controller, extending the frequency coverage of a base PNA/PNA-X analyzer from 900 Hz to 120 GHz.
Key Features
- Frequency range from 900 Hz to 120 GHz with optional low frequency extension
- Built-in bias tee for device biasing
- Built-in 1.2 m interface cable for N5292A controller connection
- Maximum power of +8 dBm to 60 GHz, +5 dBm to 110 GHz, +4 dBm to 120 GHz
- Typical sweep range from -60 dBm to maximum power
- Noise floor of -120 dBm to 26.5 GHz, -110 dBm to 110 GHz, -100 dBm to 120 GHz
- Performance to 125 GHz with operational over-range frequency to 130 GHz
Applications
- Component characterization and testing in millimeter-wave bands
- Broadband S-parameter and impedance measurements
- High-frequency device characterization and validation
Specifications
| High Frequency (range) | 85GHz < |
| Low Frequency (range) | 1MHz <= 10MHz |
