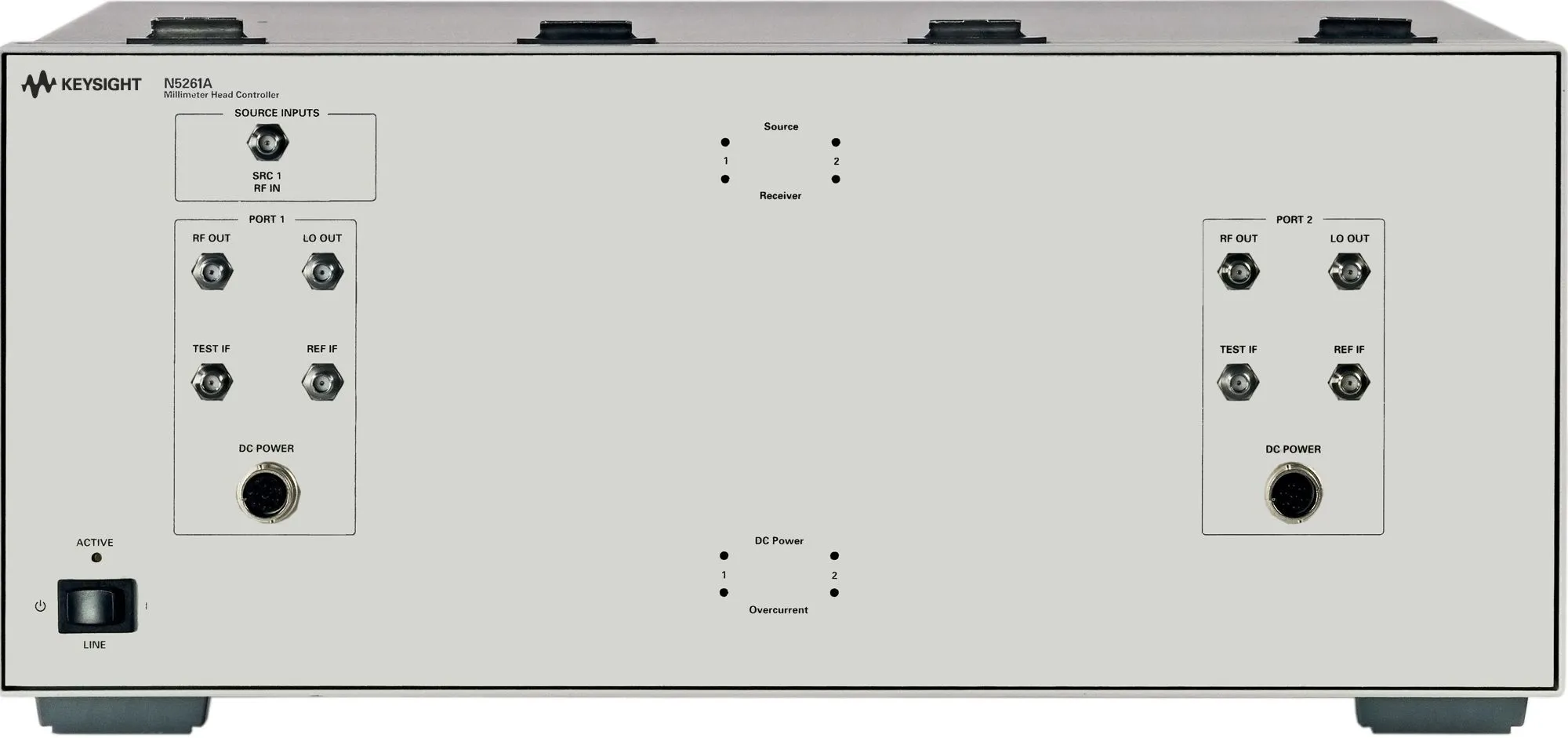

Keysight N5261A Millimeter-Wave Test Set Controller
Request a quote
Keysight N5261A is a 2-port millimeter-wave test set controller for PNA/PNA-X network analyzers, providing S-parameter measurements with RF/LO signals up to 1.1 THz.
Product details
| Model | N5261A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5261A is a 2-port millimeter-wave test set controller that serves as the interface between millimeter-wave test head modules and a PNA or PNA-X Series network analyzer. This controller enables complete S-parameter measurements of passive and active devices in the millimeter-wave frequency range.
Key Features
- 2-port S-parameter test set functionality with millimeter-wave test head modules
- Supplies RF and LO signals to millimeter-wave test head modules
- Returns down-converted reference and test IF signals to PNA/PNA-X for analysis
- Provides +12V bias to millimeter-wave head modules up to 1.1 THz
- Built-in ALC control for pulsed-RF measurements
Applications
- Millimeter-wave component testing and characterization
- Network analysis and S-parameter measurements of microwave and millimeter-wave devices
- Active and passive device testing including filters, amplifiers, and antennas
Specifications
| High Frequency (range) | 10GHz <= 20GHz |
| Form Factor | Benchtop |
