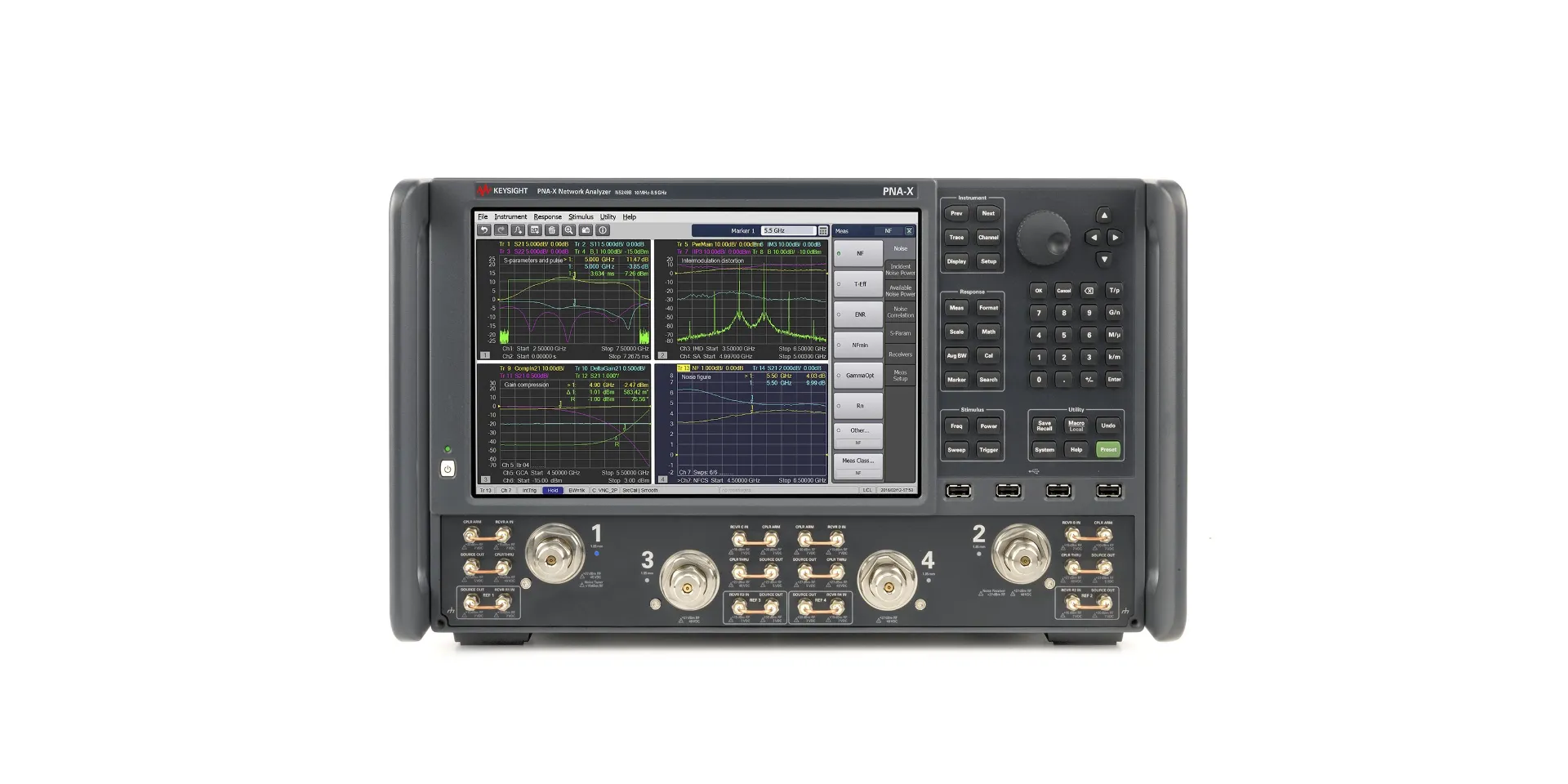

Keysight N5249B PNA-X Network Analyzer
Request a quote
Keysight N5249B PNA-X network analyzer provides 900 Hz to 8.5 GHz coverage with integrated microwave test capabilities for linear and nonlinear device characterization.
Product details
| Model | N5249B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5249B is a PNA-X series microwave network analyzer for measuring active devices such as amplifiers, mixers, and frequency converters. The hardware includes two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and a set of switches and RF access points. These integrated features provide a comprehensive measurement platform for linear and nonlinear characterization with a single connection to the device under test.
Key Features
- Frequency coverage from 900 Hz/10 MHz to 8.5 GHz
- Simplify your test system by replacing an entire rack of equipment with one analyzer
- Reduce test time with the widest range of single-connection measurement applications
- Accurate linear and nonlinear device characterization using advanced error correction
- Industry's widest range of measurement applications for speed, accuracy, and ease of use
- Multitouch display and intuitive user interface for accelerated analysis
- 3.5 mm (male) test port connectors for RF connections
Applications
- S-parameter measurement and analysis
- Noise figure characterization
- Gain compression testing
- Component behavior analysis and optimization
- Linear and nonlinear device testing
Specifications
| N5249B | 900 Hz/10 MHz to 8.5 GHz |
