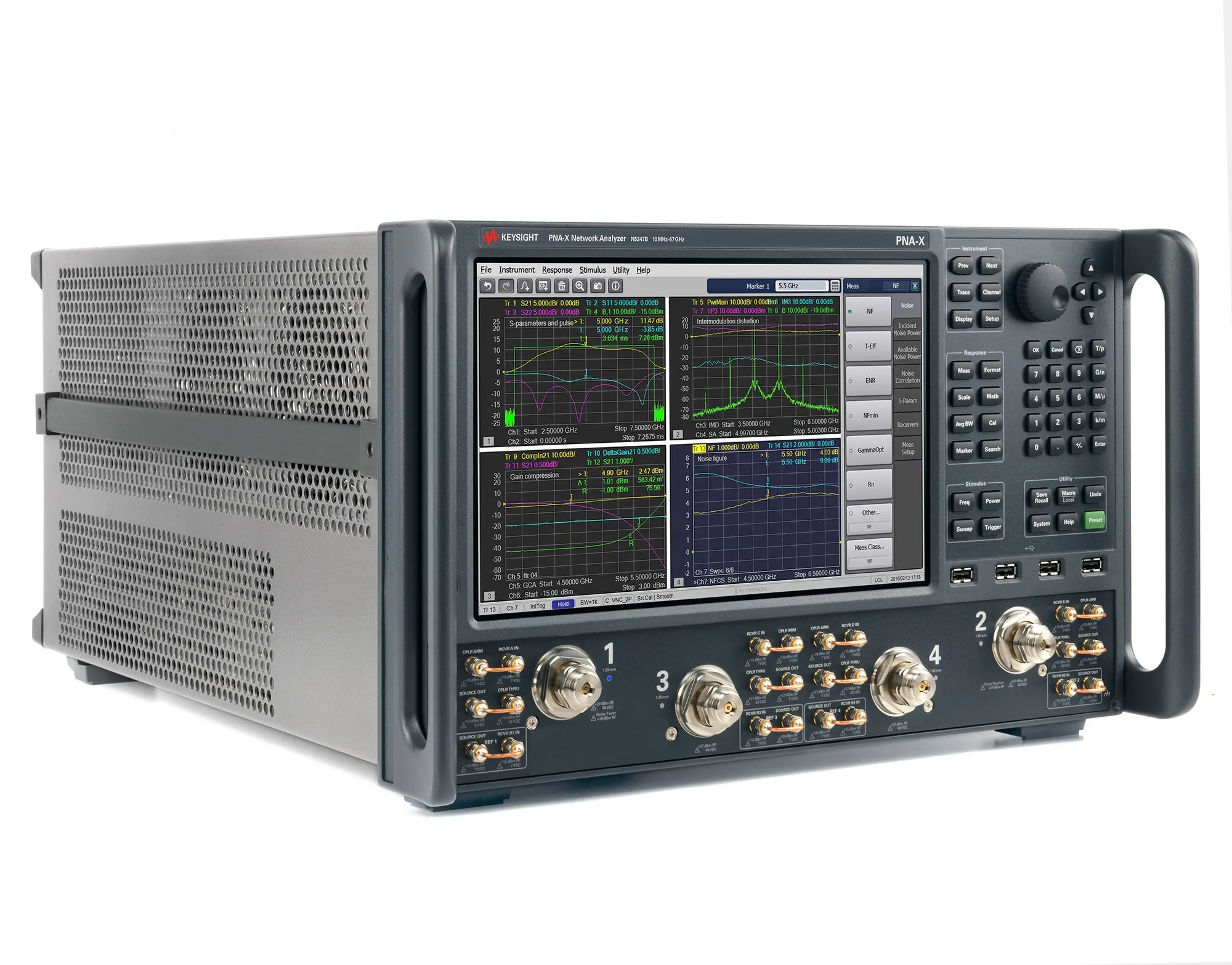

Keysight N5247B PNA-X Network Analyzer

Overview

The Keysight N5247B is a PNA-X series microwave network analyzer, combining 40 years of RF network analysis expertise into a single integrated platform. More than just a vector network analyzer, the N5247B is a comprehensive microwave test engine for characterizing active devices like amplifiers, mixers, and frequency converters. It features two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and flexible internal switches with a single connection to the device under test.

Key Features

• Frequency coverage from 900 Hz/10 MHz to 67 GHz
• 2- or 4-port configuration with options for one or two sources
• 124 dB dynamic range for superior measurement sensitivity
• Integrated capabilities simplify test stations by replacing entire equipment racks
• World's widest range of single-connection measurement applications to reduce test time
• Advanced error correction for accurate linear and nonlinear device characterization
• Multitouch display with intuitive user interface for accelerated analysis
• Test port connector: 1.85 mm (male) for precision microwave connections

Applications

• S-parameter measurement and analysis
• Noise figure characterization
• Gain and loss analysis
• Nonlinear device testing
• Component characterization and optimization
