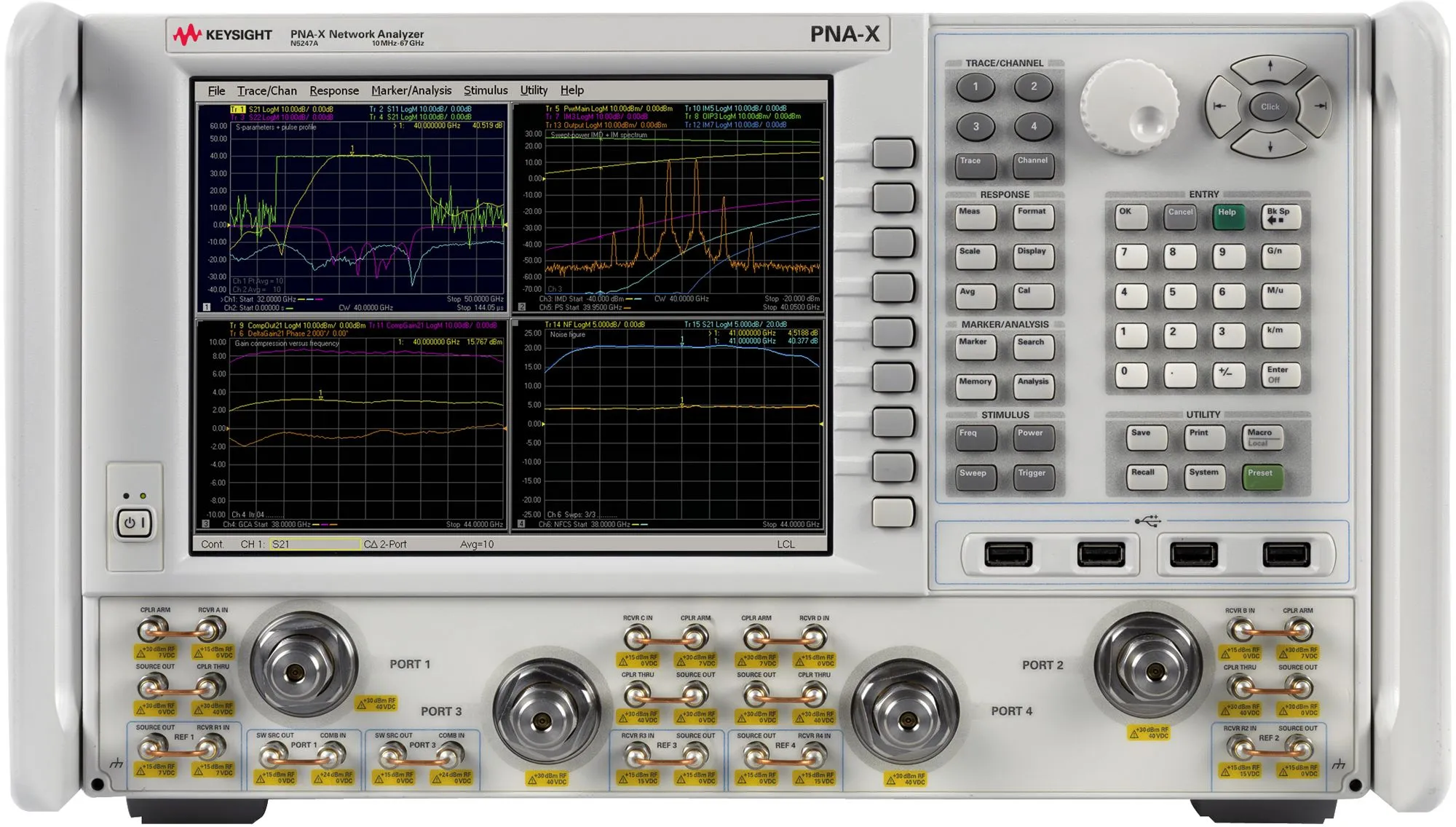

Keysight N5247A PNA-X Network Analyzer

Overview

The Keysight N5247A is a PNA-X microwave network analyzer that combines multiple RF test instruments into a single integrated platform. Designed for characterizing active devices such as amplifiers, mixers, and frequency converters, the N5247A features two built-in signal sources, signal combiners, internal switches, and RF access points. This hardware core enables both linear and nonlinear measurements with a single connection to the device under test.

Key Features

• Frequency coverage from 10 MHz to 67 GHz
• 2- or 4-port configuration with two built-in signal sources
• 129 dB system dynamic range with up to 32,001 measurement points across 200 channels
• 15 MHz IF bandwidth for improved measurement resolution
• High output power of +10 dBm at 67 GHz with 40 dB power sweep range
• 0.1 dB receiver compression point at +11 dBm at 67 GHz
• Harmonic suppression to -60 dBc

Applications

• S-parameter measurements in CW and pulsed modes
• Noise figure characterization
• Gain compression analysis
• Intermodulation and harmonic distortion testing
• Conversion gain and loss measurement
• True-differential stimulus measurements
• Millimeter-wave device characterization
• Nonlinear waveform and X-parameter characterization
• Antenna testing and analysis
