Keysight N5245B Vector Network Analyzer
Request a quote

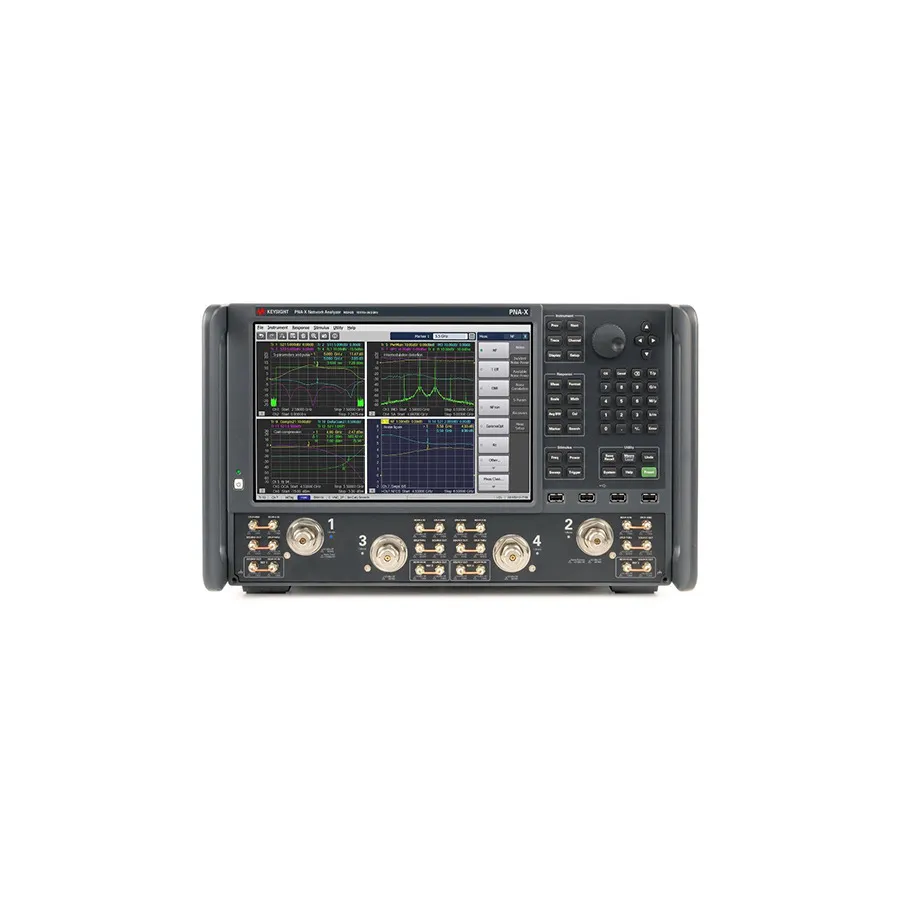

Keysight N5245B PNA-X vector network analyzer for active RF device measurement, 10 MHz to 50 GHz, dual sources, 124 dB dynamic range.
Product details
| Model | N5245B 029 423 |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5245B is a high-performance PNA-X Series vector network analyzer designed for comprehensive linear and nonlinear characterization of active RF devices. With frequency coverage from 10 MHz to 50 GHz, integrated dual signal sources, noise receiver, and flexible RF switching, the N5245B simplifies complex measurement setups while maintaining high measurement integrity and repeatability.
Key Features
- Frequency range: 10 MHz to 50 GHz
- 2- or 4-port configurations with configurable test set
- Dual internal signal sources with built-in combiner
- Integrated noise receiver for noise figure measurements
- Dynamic range: 124 dB system performance
- Harmonics: -60 dBc
- Mechanical RF switches for multi-point test access
- Intuitive user interface with multitouch display
- USB and LAN connectivity
Applications
- S-parameter and noise figure characterization
- Gain compression and intermodulation measurement
- Active device development and validation
- Component characterization for amplifiers, mixers, and converters
- Production testing and incoming inspection
- X-parameter measurement for nonlinear modeling
- Millimeter-wave device testing
Specifications
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 2 or 4 configurable |
| Dynamic Range | 124 dB |
| System Output Power | 13 dBm typical |
| Harmonics | -60 dBc |
| Test Port Connector | 2.4 mm (male) |
| Display | Multitouch color LCD (1280 × 800) |
| Connectivity | USB, LAN |
| Built-in Sources | 2 internal sources with combiner |
| Noise Receiver | Optional with S93029B |
