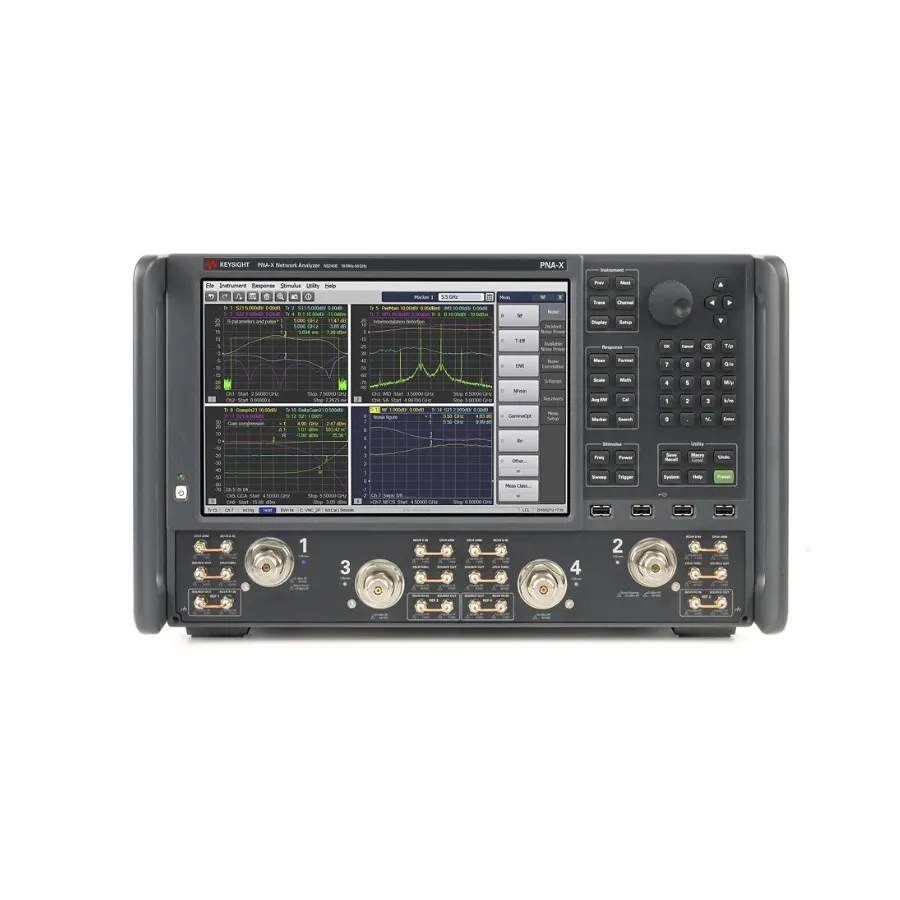

Keysight N5245B Vector Network Analyzer

Overview

This Keysight N5245B is configured as a comprehensive PNA-X microwave measurement system with integrated noise figure receiver and 4-port test set. It provides single-connection access to linear and nonlinear characterization of active RF devices across 10 MHz to 50 GHz. The system includes dual internal sources, signal combiner, noise measurement capability, and mechanical RF switches for simplified test configuration.

Key Features

• Frequency range: 10 MHz to 50 GHz with multitouch color LCD display (1280×800)
• 4-port configurable test set with second internal source and mechanical switches
• Integrated noise receiver for noise figure and noise power ratio measurements
• Dual pulse modulators for source 1 and source 2
• IF inputs for external signal access
• Dynamic range: 124 dB system performance
• Harmonics: -60 dBc
• USB and LAN connectivity for remote operation

Applications

• S-parameter measurements with full S-matrix characterization
• Noise figure and noise power ratio (NPR) measurements
• Gain compression and P1dB determination
• Intermodulation (IP3) and harmonic distortion measurements
• Conversion gain and loss measurement in frequency converters
• Pulse and modulation measurements
• X-parameter characterization for nonlinear modeling
• Antenna and component validation
• Production testing and incoming inspection
