Keysight N5245B Vector Network Analyzer
Request a quote

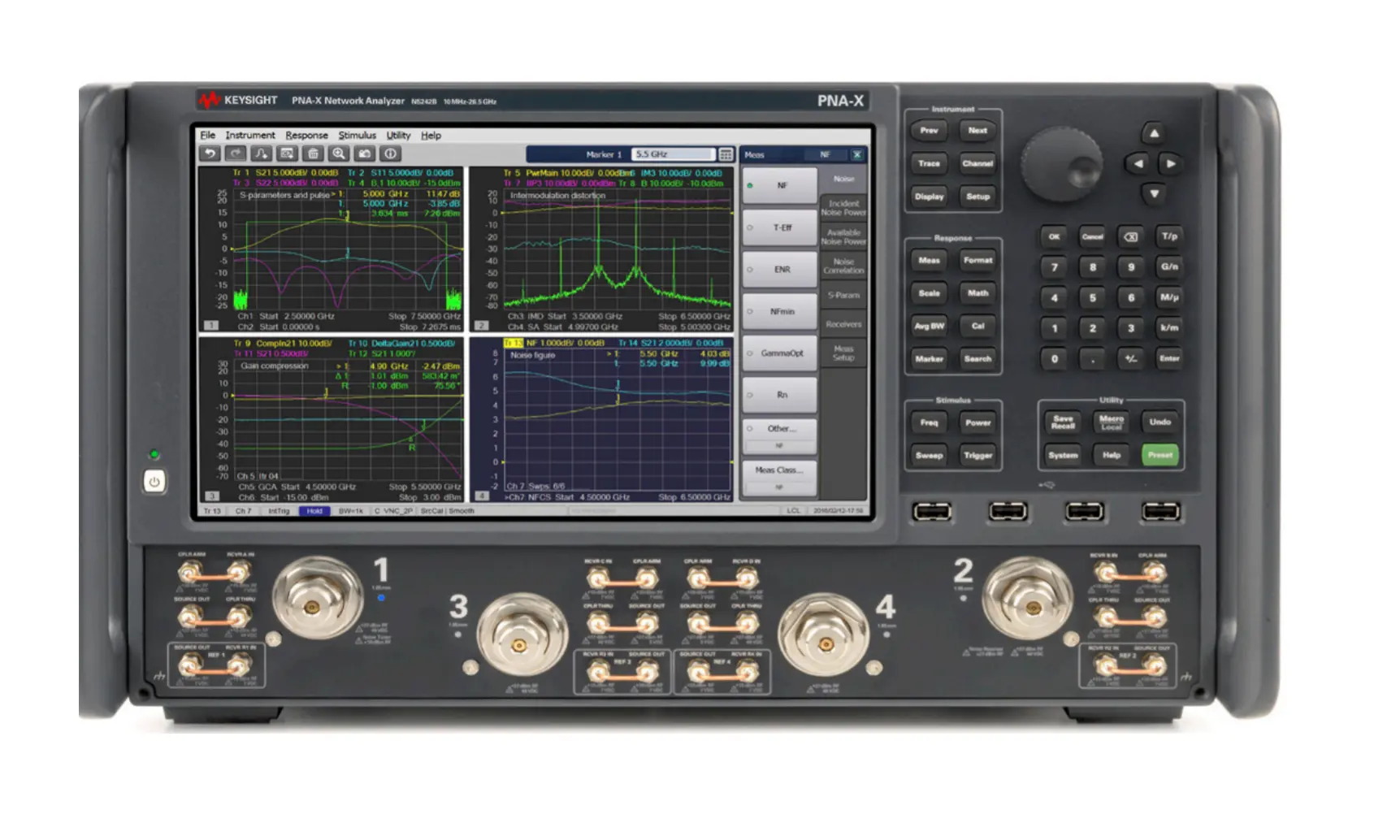

Keysight N5245B PNA-X vector network analyzer with 10 MHz to 50 GHz frequency range, dual sources, 124 dB dynamic range for active RF device characterization.
Product details
| Model | N5245B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5245B is part of the PNA-X Series, a comprehensive microwave test platform designed for linear and nonlinear characterization of active RF devices including amplifiers, mixers, and frequency converters. With integrated dual signal sources, built-in combiner, noise receivers, and flexible RF switching, the N5245B enables single-connection measurement of complex device behavior across 10 MHz to 50 GHz.
Key Features
- Frequency coverage: 10 MHz to 50 GHz with 2- or 4-port configurations
- Dynamic range: 124 dB system performance
- Integrated second signal source and internal combiner for simplified test stations
- Noise receiver and pulse modulator for advanced measurements
- Flexible RF routing and mechanical switches for multi-function test setups
- Multi-touch color display with intuitive user interface
- Harmonics: -60 dBc
- Advanced error correction for accurate linear and nonlinear device testing
Applications
- S-parameter measurements
- Noise figure characterization
- Gain compression analysis
- Intermodulation and harmonic distortion testing
- Conversion gain/loss measurement
- Pulse measurements and modulation analysis
- Millimeter-wave device characterization
- X-parameter and nonlinear waveform measurements
- Component validation and production testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
