Keysight N5245AS Vector Network Analyzer
Request a quote
Keysight N5245AS integrated vector network analyzer with 10 MHz to 43.5 GHz frequency range, dual internal sources, and 126 dB dynamic range for active device test.
Product details
| Model | N5245AS |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview

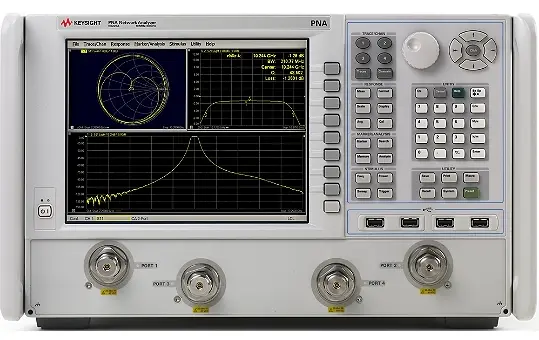

The Keysight N5245AS is an integrated microwave test engine for measuring active RF devices such as amplifiers, mixers, and frequency converters. It provides flexible single-connection measurement of linear and nonlinear device behavior across 10 MHz to 43.5 GHz with dual built-in signal sources, internal combiner, and configurable RF switching.
Key Features
- Frequency range: 10 MHz to 43.5 GHz
- Dual built-in signal sources with high output power (+18 dBm) and low harmonics (-60 dBc)
- System dynamic range of 126 dB and receiver dynamic range of 129 dB
- Best dynamic accuracy: 0.1 dB compression with +15 dBm input power
- Low noise floor of -111 dBm at 10 Hz IF bandwidth
- Wide power sweep range of 38 dB
- Integrated second source, combiner, and signal-routing switches for simplified test setups
- 2- or 4-port configurations with 32,001 measurement points and 200 channels
Applications
- S-parameter measurements (CW and pulsed)
- Noise figure characterization
- Gain compression and intermodulation analysis
- Harmonic distortion measurements
- Conversion gain/loss measurement
- True-differential stimulus testing
- Millimeter-wave device characterization
- Nonlinear waveform and X-parameter characterization
- Antenna testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | DC <= 1kHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Number of Ports | 2 |
| Maximum Frequency | 50 GHz |
| Minimum Frequency | 10 MHz |
| Type | Benchtop |
