Keysight N5244B 423 Win10 Vector Network Analyzer

Overview

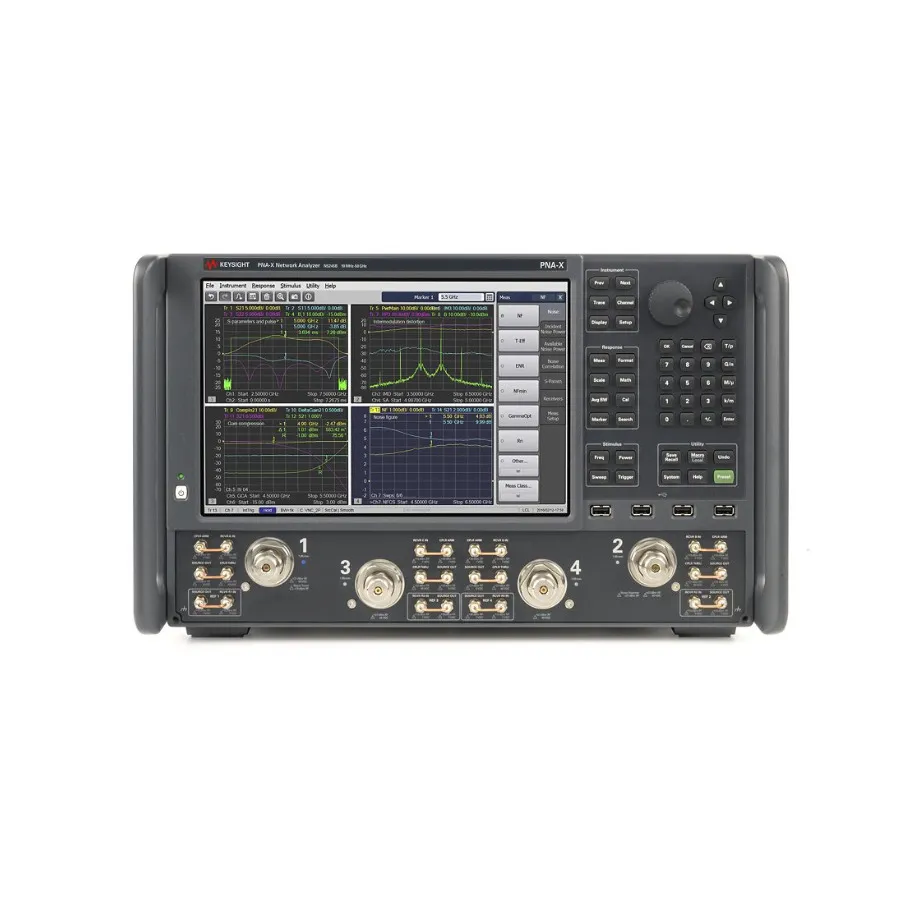

The Keysight N5244B 423 Win10 is a fully integrated PNA-X vector network analyzer configured for versatile microwave device characterization. The 423 configuration provides a 4-port S-parameter test set with configurable signal path, second source, signal attenuators on both source and receiver paths, bias tees for DC biasing, an integrated signal combiner, and mechanical switches for flexible signal routing. Running Windows 10, it delivers an intuitive measurement environment for linear and nonlinear device testing.

Key Features

• Frequency range: 10 MHz to 43.5 GHz
• 4-port configurable test set with second source
• Source and receiver attenuators for power level flexibility
• Integrated bias tees for DC component biasing
• Built-in signal combiner and mechanical switches
• Dynamic Range: 124 dB
• Three DDS sources with low spurious content and phase noise, 6 GHz arbitrary waveform generation
• Modulation distortion analysis: EVM, NPR, ACPR
• Windows 10 operating system
• Multitouch color LCD display with intuitive user interface

Applications

• S-parameters measurement
• Amplifier characterization
• Mixer and frequency converter testing
• Gain compression analysis
• Phase noise and AM noise measurements
• Modulation distortion analysis
• Nonlinear device characterization
• Production line testing
• Research and development
