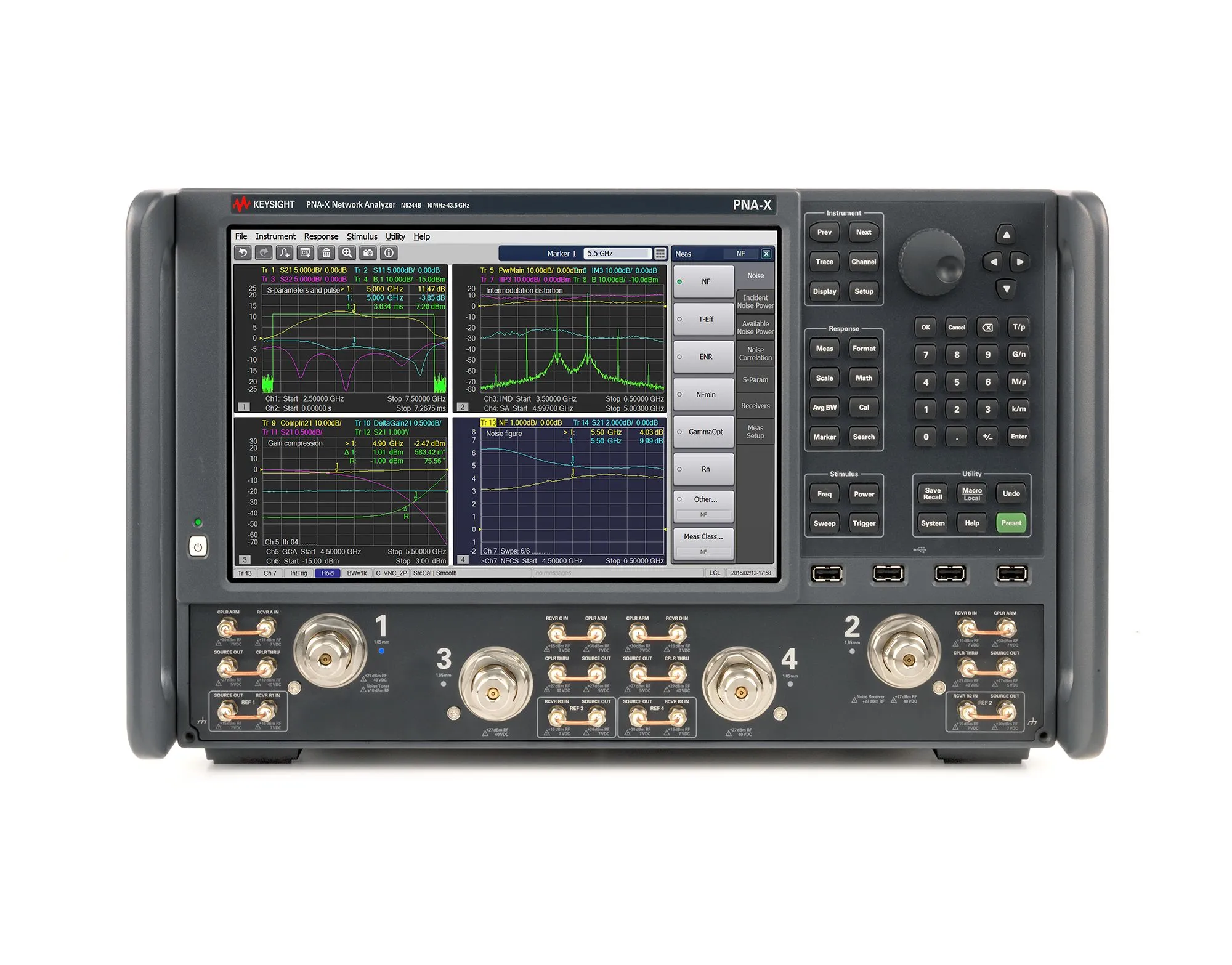

Keysight N5244B Vector Network Analyzer
Request a quote
Keysight N5244B vector network analyzer covers 10 MHz to 43.5 GHz with 124 dB dynamic range, 4-port capability, dual sources, and comprehensive device characterization.
Product details
| Model | N5244B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5244B is a PNA-X series vector network analyzer representing 40 years of Keysight's technical leadership in radio frequency network analysis. This microwave test engine is engineered for measuring active devices including amplifiers, mixers, and frequency converters. The N5244B combines two internal signal sources, a signal combiner, S-parameter and noise receivers, pulse modulators and generators, and flexible switching for comprehensive linear and nonlinear measurements.
Key Features
- Frequency range: 10 MHz to 43.5 GHz
- 4-port integrated S-parameter test set with optional dual built-in sources
- Dynamic Range: 124 dB
- Output Power: +13 dBm
- Harmonics: -60 dBc
- 12.1-inch color LCD touchscreen display
- Advanced and intuitive graphical user interface
- RF connectors: 2.4 mm (male), 50 Ohm nominal
- Multiple connectivity options: USB 2.0, GPIB, LAN, Handler I/O
Applications
- S-parameters measurement (CW and pulsed)
- Noise figure characterization
- Gain compression testing
- Intermodulation and harmonic distortion analysis
- Conversion gain and loss measurement
- Millimeter-wave characterization
- Antenna testing
- Production line testing with high throughput and repeatability
- Research and development device characterization
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
| Form Factor | Benchtop |
