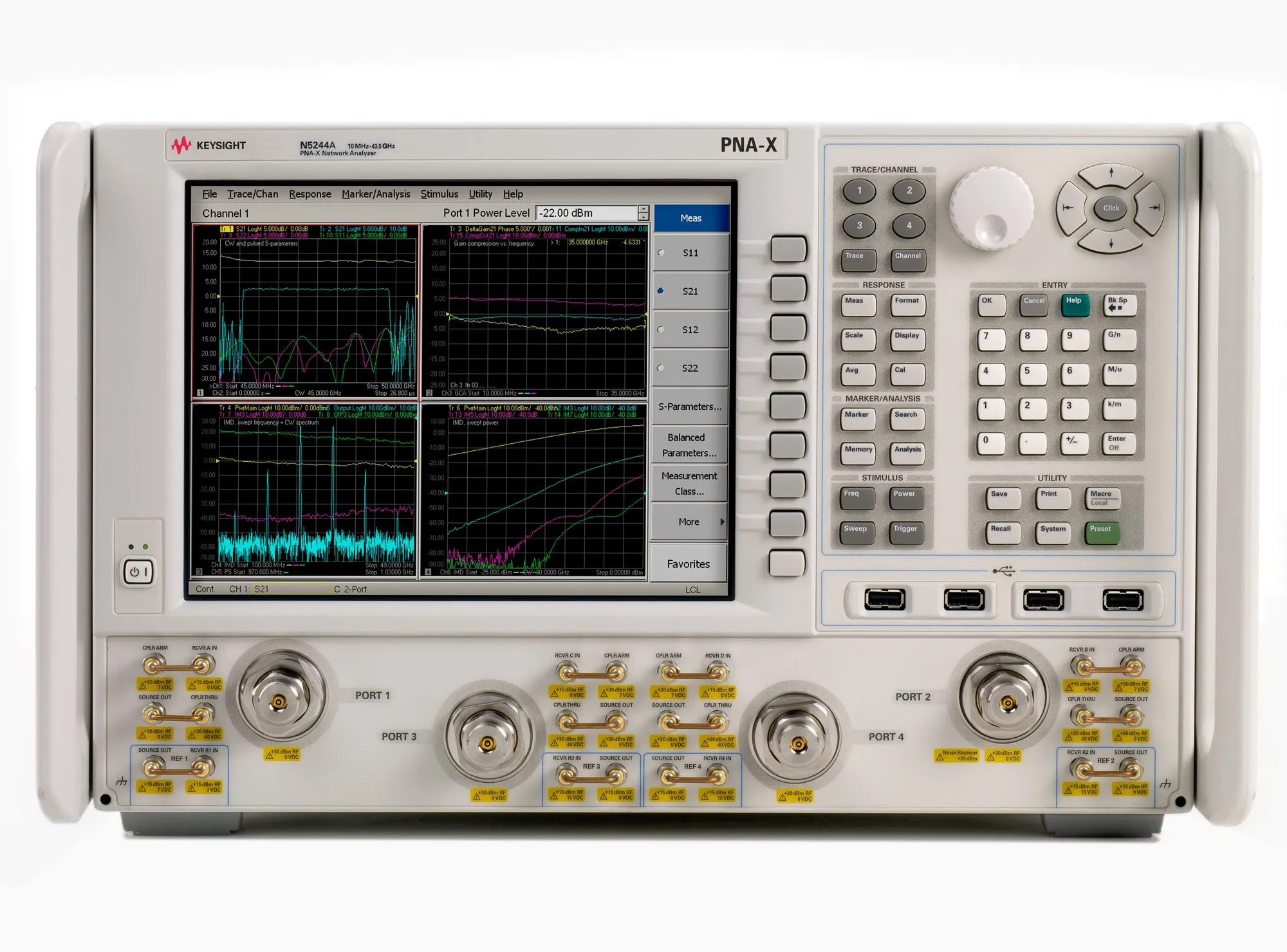

Keysight N5244AS Vector Network Analyzer

Overview

The Keysight N5244AS is a PNA-X series vector network analyzer designed for characterizing active devices such as amplifiers, mixers, and frequency converters. It features integrated dual signal sources, a combiner, S-parameter and noise receivers, and flexible internal routing switches, enabling comprehensive linear and nonlinear measurements through a single connection to the device under test.

Key Features

• Frequency range: 10 MHz to 43.5 GHz
• 2 or 4 ports with two built-in sources
• 126 dB system and 129 dB receiver dynamic range
• High output power (+18 dBm) with low harmonics (-60 dBc)
• 32,001 measurement points with 200 channels and 15 MHz IF bandwidth
• 0.1 dB compression accuracy with +15 dBm input power at receiver
• Low noise floor of -111 dBm at 10 Hz IF bandwidth

Applications

• S-parameters measurement (CW and pulsed)
• Noise figure characterization
• Gain compression testing
• Intermodulation and harmonic distortion analysis
• Conversion gain and loss measurement
• True-differential stimulus testing
• Millimeter-wave characterization
• Nonlinear waveform and X-parameter characterization
• Antenna testing
