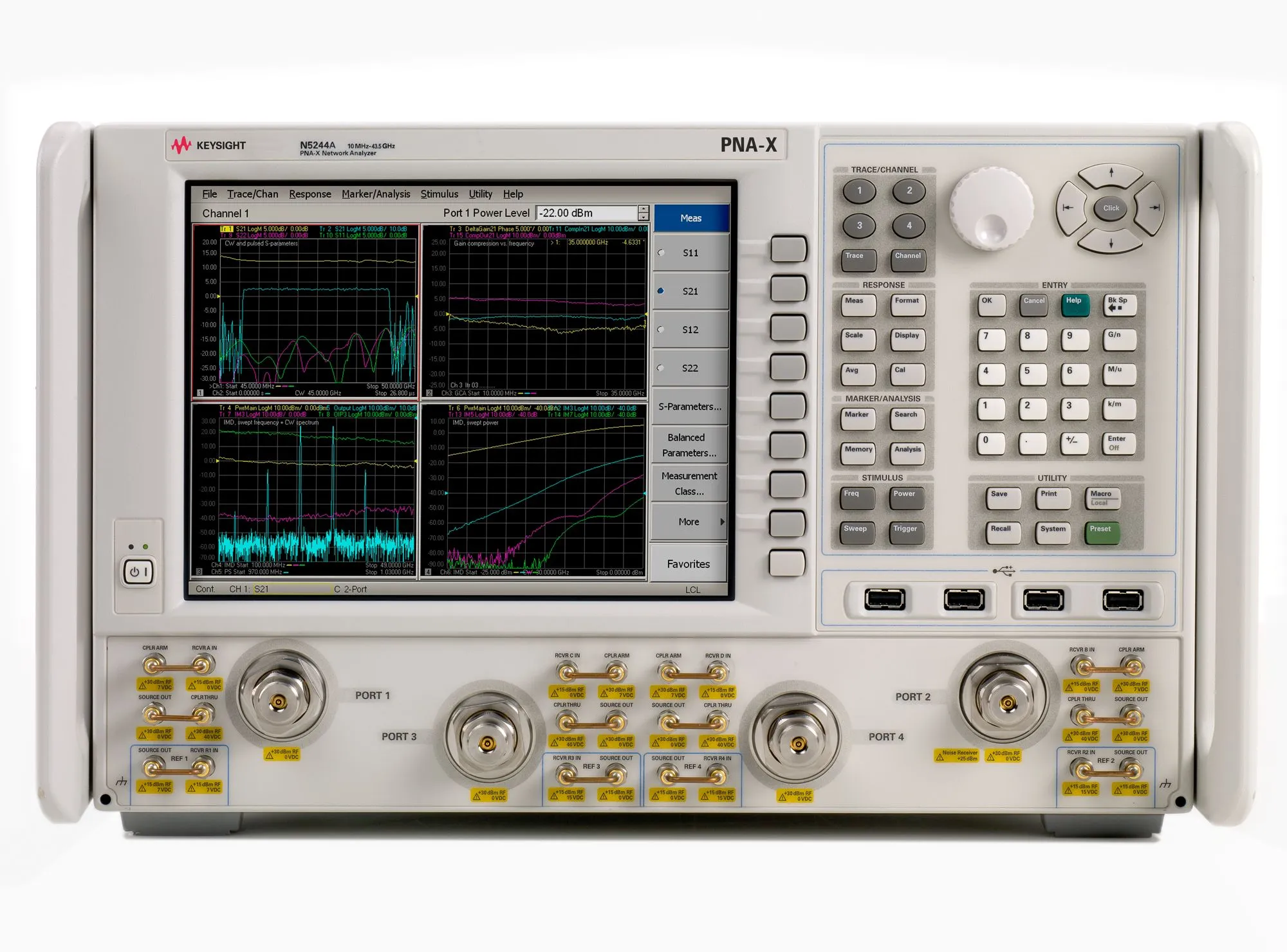

Keysight N5244A Network Analyzer
Request a quote
Keysight N5244A PNA-X network analyzer, 10 MHz to 43.5 GHz, with dual sources and integrated measurement engine for RF device testing.
Product details
| Model | N5244A |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5244A is a PNA-X network analyzer providing the widest range of single-connection measurement applications for active device characterization. Part of the PNA-X family with models up to 67 GHz, the N5244A covers 10 MHz to 43.5 GHz with unrivaled configurability including built-in dual sources, integrated combiner, and internal signal-routing switches.
Key Features
- Frequency range: 10 MHz to 43.5 GHz
- 2- or 4-port configuration with two built-in sources
- System dynamic range: 126 dB
- Receiver dynamic range: 129 dB
- Output power: +18 dBm
- Harmonics: -60 dBc
- Wide power sweep range: 38 dB
- Low noise floor: -111 dBm at 10 Hz IF bandwidth
- Best dynamic accuracy: 0.1 dB compression at +15 dBm input
- Up to 32,001 measurement points and 200 channels
- 15 MHz IF bandwidth
- Integrated signal combiner and switchable test set
Applications
- S-parameters (CW and pulsed)
- Noise figure measurement
- Gain compression testing
- Intermodulation and harmonic distortion
- Conversion gain/loss
- True-differential stimulus
- Millimeter-wave testing
- Nonlinear waveform and X-parameter characterization
- Antenna testing
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 2.4mm-Male (Jack) |
