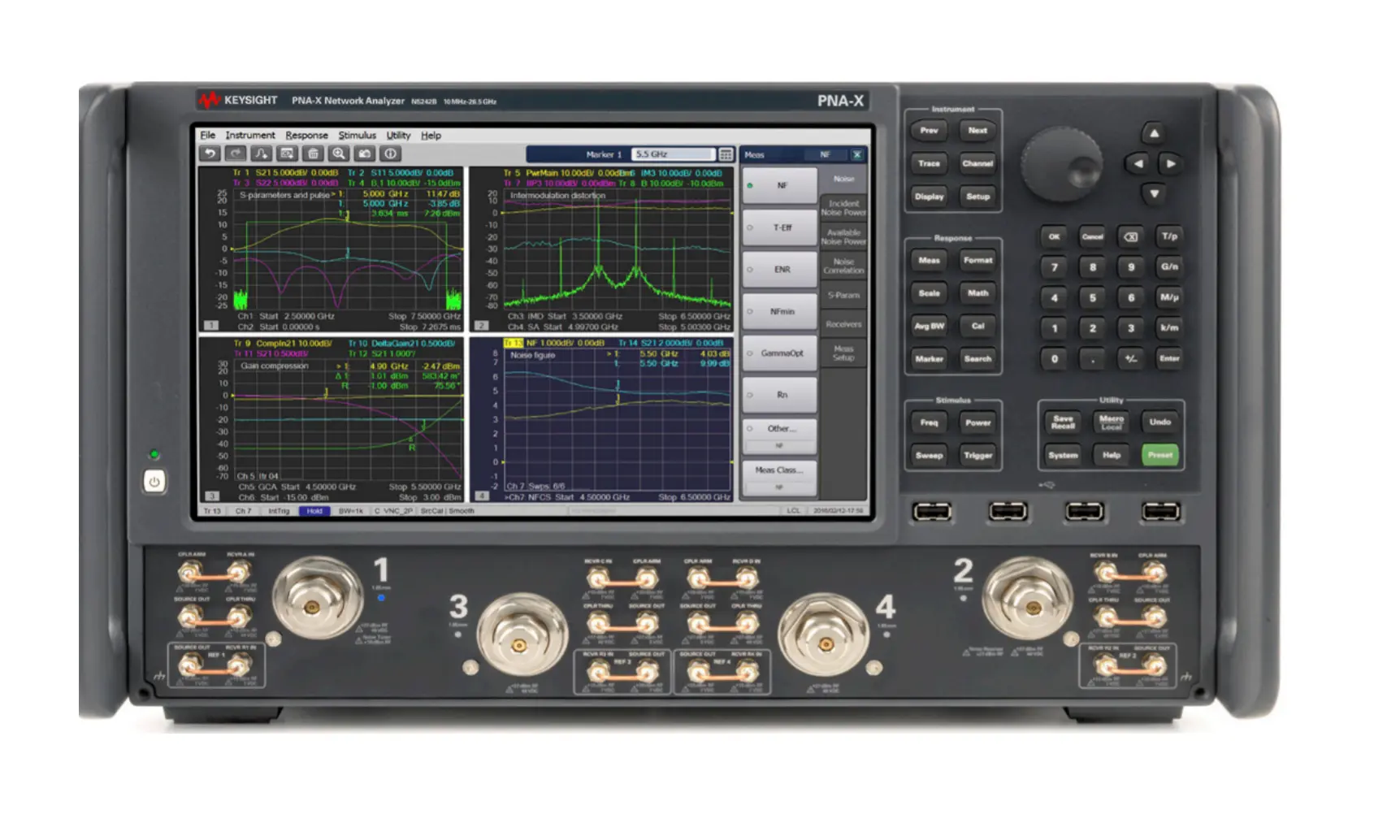

Keysight N5242B PNA-X Microwave Network Analyzer
Request a quote
Keysight N5242B PNA-X covers 10 MHz to 26.5 GHz with 2-4 ports and integrated sources for comprehensive active RF device characterization and testing.
Product details
| Model | N5242B |
| Manufacturer | Keysight |
| Category | Vector Network Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N5242B is a highly integrated microwave network analyzer from the PNA-X series, combining a signal source, combiner, S-parameter and noise receivers, pulse modulators and generators, and flexible RF access switches into one comprehensive test platform. This benchtop analyzer is designed for both R&D and production environments, enabling measurement of linear and nonlinear active devices with a single connection to the device-under-test.
Key Features
- Frequency coverage: 900 Hz to 26.5 GHz
- 2 or 4-port configurations with one or two internal signal sources
- Integrated combiner, signal routing switches, and flexible RF access points
- S-parameter and noise receivers for comprehensive device characterization
- Pulse modulation and generation capabilities for dynamic testing
- Intuitive multi-touch display with advanced user interface
- Benchtop form factor replacing multiple equipment racks
- Support for linear and nonlinear device characterization
Applications
- Linear device characterization (S-parameters, CW and pulsed)
- Active device testing (amplifiers, mixers, frequency converters)
- Nonlinear measurements and X-parameter characterization
- Noise figure and gain measurements
- Gain compression and dynamic range analysis
- Intermodulation and harmonic distortion testing
- Antenna characterization and testing
- Millimeter-wave component evaluation
Specifications
| High Frequency (range) | 20GHz <= 50GHz |
| Low Frequency (range) | 1MHz <= 10MHz |
| Connector Type | 3.5mm-Male (Jack) |
| Form Factor | Benchtop |
